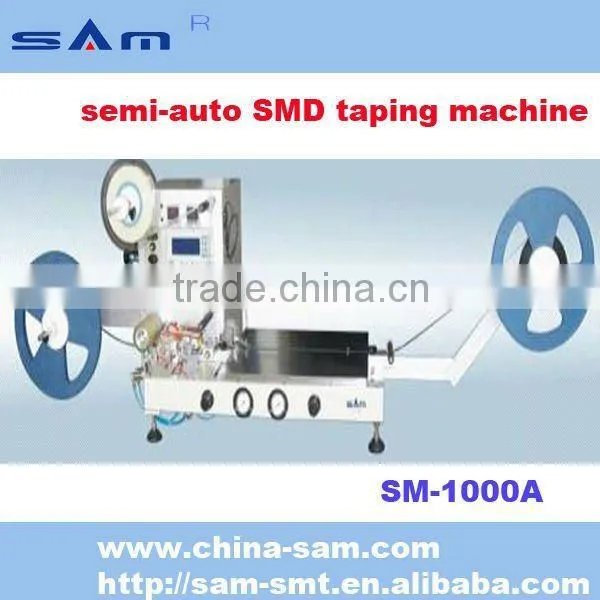

Help CenterManual SMD Taping Machine
Related Products
-
LED Fully Automatic SMD Taping MachineNegotiableMOQ: 1 Set -
SMD Taping Machine ManufacturerUS$ 3,300 - 5,600MOQ: 1 Set
-
SMD Led Taping Machine ManufacturerUS$ 3,300 - 5,600MOQ: 1 Set
-
SAM Semi-auto Smd Taping Machine( Long Length Model)US$ 4,000 - 6,300MOQ: 1 Set
-
2180mm Led Smd Taping Machine( Long Length Model)US$ 4,000 - 6,300MOQ: 1 Set
Specifications
1.low-cost solution for packaging 8-72 mm width carrier tape2.easy operate
3.Taping speed: 3000-7000pcs/hr,denpend on parts.
Feature:
1,Track width can work freely in the range of 8mm to 72mm,the screen is easy and convenient for operate and control.
2, Fine adjustment head installed in hot-press device, adjustment of sealing position can accurate to 0.1±mm,independent PID temperature control accurately and steadily.
3,The position of cover tape can make fine adjustment by adjust the tension of the moving cover unt by fiber-optical sensitive and equipped with leakage detection make braiding accurate.
4,Moving tape speed can be adjusted continuously and control by pedal,compatible with all ELA-481 standard plastic reels.
Specifications:
Size: 1650mm(L)*460mm(W)*580mm(H)
Feeding: suitable with ELA-481 standard wheel and cover tape
Tape width: 8mm-88mm
Power supply: AC200V,50Hz
Pressure: 3.0kg/cm2
Temperature control: two heads and independent PID temperature control,temperature range is 20-200
Taping speed: 3000-7000pcs/hr,According to specific component
Calculator: count by fiber-optical sensitive
Package type: self-adhesive or hot press
Weight: 50kg
