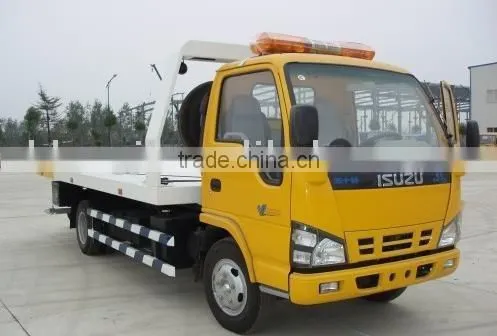

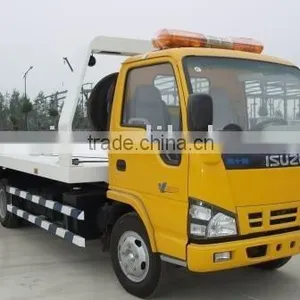

Road Wrecker(tow Truck, Breakdown Truck)

Name: Road Wrecker(tow Truck, Breakdown Truck)
Brand: Isuzu
SKU: 122881317
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Fuel Type:

Diesel

Place of Origin:

Hubei, China

Brand Name:

Isuzu

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Diesel

Place of Origin Hubei, China

Brand Name Isuzu

Model Number ISUZU flat board tow truck(wrecker)

Specifications

road wrecker(tow truck, breakdown truck) refitted with ISUZU chassis(NKR55LLFACJY), delightful appearcance, huge power

Basic Information
Vehicle name	ISUZU road wrecker		Chassis	NKR55LLFACJY
Outline size(L×W×H) (mm)	5945×1890×2180		Cargo inline size (L×W×H)(mm)	/
Rating mass(kg)	/		Empty mass(Kg)	3650
Full mass(kg)	4490		Emission standard	Euro 2
Engine Information
Model	4J81-TC		Type	Water cooling in-line four-cylinder turbocharged diesel engine
Power/displacement(KW/ML)	70(95PS)/2771		Manufacture	ISUZU CO.LTDcompany
Chassis Information
Wheelbase(mm)	3300		Axle load(kg) F/R	Front :/Rear :/
Tire	7.00-15		Max speed (km/h)	98
Front overhang(mm)	1385		Rear overhang(mm)	1425
Front track(mm)	1015		Rear track(mm)	1545
Approach angel(°)	24		Departure angle(°)	16
Steering	Power steering		Brake	Spring brake
Cabin	The cab is all-metal close tipe and flat-end,the seat is djustable back and forward
Special function
Rating load(Kg)	710	Max load(kg)			3630
Bracket arm max Length (mm)	455	Bracket arm companding Length(mm)			1500
Board Size(L×W)(mm)		Min slant angle(°)
Board working stroke(mm)	1750	Max tow speed (km/h)			30
Winch NO.	1	Rating tow capacity(kg)			1500
Steel wire rope lenth(m)	21	Winch speed			8
