Road Wrecker(tow Truck, Breakdown Truck)

Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Fuel Type:

Diesel

Place of Origin:

Hubei, China

Brand Name:

JAC

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Diesel

Place of Origin Hubei, China

Brand Name JAC

Model Number JAC flat board tow truck(wrecker)

Specifications

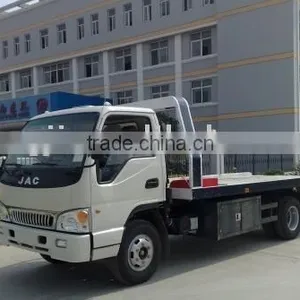

road wrecker(breakdown truck,tow truck)refitted with JDF5060TQZJAC chassis, delightful appearance, huge power, durable

Basic Information
Vehicle name	JAC ROAD WRECKER		Chassis	JDF5060TQZJAC
Outline size(L×W×H) (mm)	7150×2320×2420		Cargo inline size (L×W×H)(mm)	/
Rating mass(kg)	/		Empty mass(Kg)	4800
Full mass(kg)	6125		Emission standard	Euro 3
Engine Information
Model	CY41025-C3D		Type	Water cooling in-line four-cylinder turbocharged diesel engine
Power/displacement(KW/ML)	80(108)/3856		Manufacture	Dongfeng chao yang company
Chassis Information
Wheelbase(mm)	3815		Axle load(kg) F/R	Front :1500/Rear :6500
Tire	10.00R20,10.00-20		Max speed (km/h)	90
Front overhang(mm)	1665		Rear overhang(mm)	1525
Front track(mm)	1085		Rear track(mm)	2250
Approach angel(°)	23		Departure angle(°)	12
Steering	Power steering		Brake	Hydraulic braking
Cabin	The cab is all-metal close tipe and flat-end,the seat is djustable back and forward
Special function
Rating load(Kg)	1130	Max load(kg)
Bracket arm max Length (mm)	1300	Bracket arm companding Length(mm)			1180
Board Size(L×W)(mm)	5240*2100	Min slant angle(°)			10
Board working stroke(mm)	2680	Max tow speed (km/h)			3000
Winch NO.	1	Rating tow capacity(kg)			3000
Steel wire rope lenth(mm)	21	Winch speed			8
