CAB Yellow Blade PCB V-cut Machine (SM-2008)

CAB Yellow Blade PCB V-cut Machine (SM-2008) thumbnail-1
CAB Yellow Blade PCB V-cut Machine (SM-2008) photo-1
US$ 2,800 - 3,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAM
Model Number:
SM-2008
Contact Supplier Request Quote Chat Now
Shenzhen SAM Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SAM
Model Number SM-2008

Specifications

1.SM-2008 separates both small and large PCBs fast and economicaly.
2.PCB thickess:0.8-3.2mm
3.separate speed :300/500mm/s

 Introducion :

SM-2008 separates both small and large PCBs fast and economicaly. To optimize operation,the separation length can be programmed

Safe operation

The PCB is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.

The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.

Recommended pre-scored grooves

The pre-scored grooves can be interrupted by any number of cutouts.

If components project above the groove,the linear blade needs to be cut out, in such a case,contact us.

Features:

  • Programmable cutting lengths ranging to 460mm, eliminating time-consuming unnecessary board travel. (Cut length of up to 600mm  also available)
  • Motorized circular blade cuts against the linear blade to ensure clean, burr-free processing without board stress.
  • Programmable to exact cutting length required.
  • Will depanel PCBs with components 1mm from the score line.
  • Quick-lock design for easy circular blade setup to any PCB thickness.
  • Hardened tooled steel long-life blades
  • Large processing table, which can be angled to permit processed boards to fall away.
  • For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.
  • Four separating speeds available – adjustable by front rotary knob.

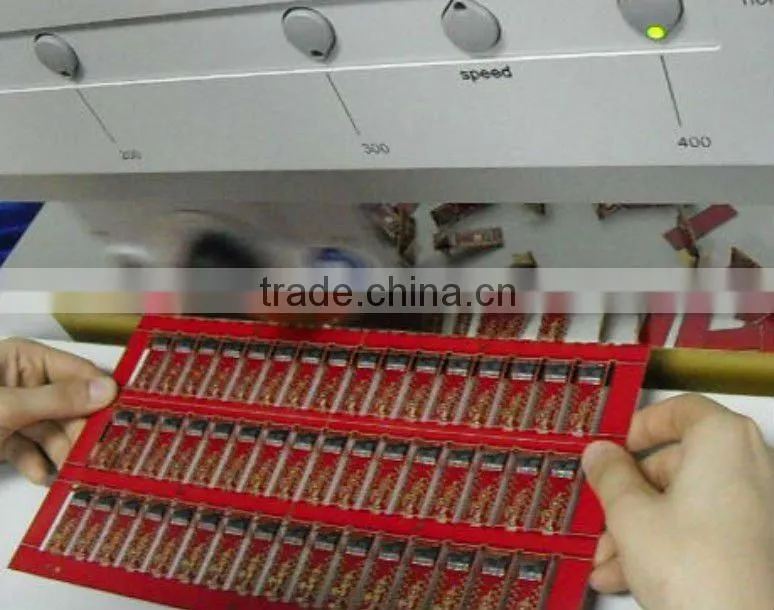

    CAB yellow blade PCB V-cut machine (SM-2008)

  • CAB yellow blade PCB V-cut machine (SM-2008)CAB yellow blade PCB V-cut machine (SM-2008)
