Help CenterDurable Titanium Blade V-cut PCB Separator (SM-2008)
Related Products
-
PCB Depanelization With White BladeUS$ 3,000 - 4,500MOQ: 1 Set -
SAM White Cut Blade PCB SeparatorUS$ 3,000 - 4,500MOQ: 1 Set
-
PCB Depaneling Machine(SM-3000)US$ 5,000 - 8,000MOQ: 1 Set
-
PCB Separation Equipment (SM-3000)US$ 5,000 - 8,000MOQ: 1 Set
-
Aluminium PCB Depanelization (SM-3000)US$ 5,000 - 8,000MOQ: 1 Set
Specifications
1 both small and large PCBs cut fast2 PCB thickess:0.8-3.2mm
3 separate speed :300/500mm/s
4 separation length :450mm
Introducion :

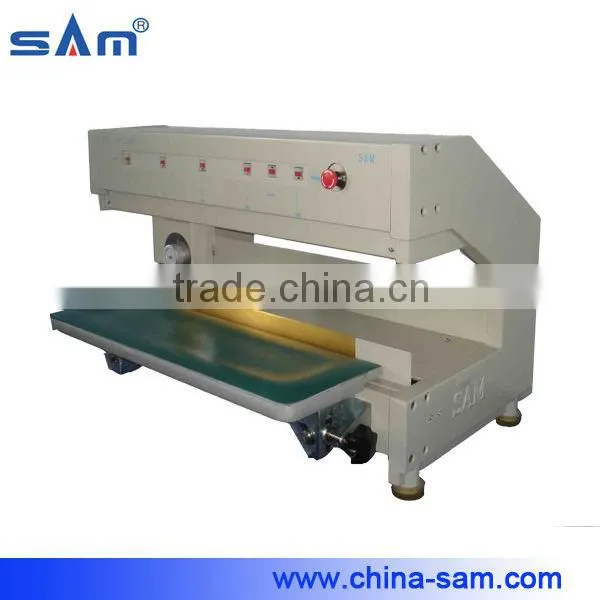

SM-2008 separates both small and large PCBs fast and economicaly. To optimize operation,the separation length can be programmed
Safe operation

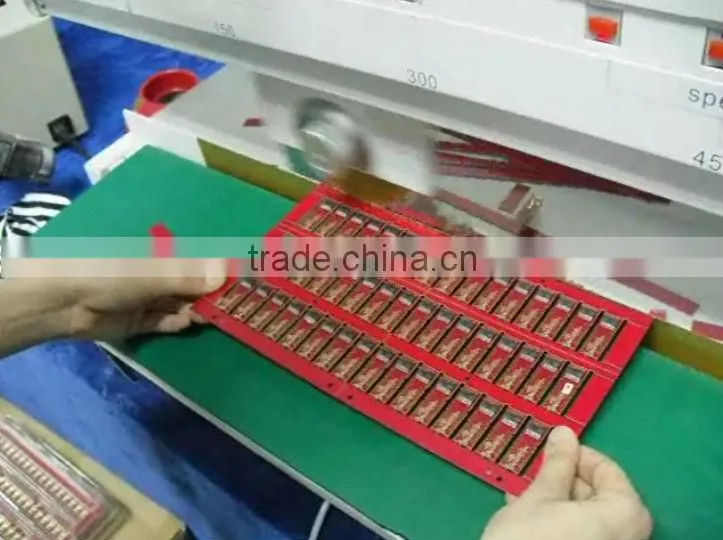

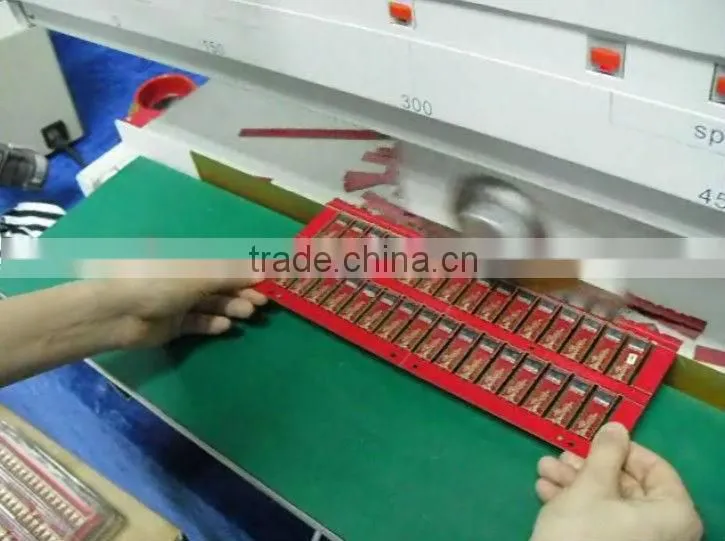

The PCB is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.
The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.
Recommended pre-scored grooves
The pre-scored grooves can be interrupted by any number of cutouts.
If components project above the groove,the linear blade needs to be cut out, in such a case,contact us.
Features:
- Programmable cutting lengths ranging to 460mm, eliminating time-consuming unnecessary board travel. (Cut length of up to 600mm also available)
- Motorized circular blade cuts against the linear blade to ensure clean, burr-free processing without board stress.
- Programmable to exact cutting length required.
- Will depanel PCBs with components 1mm from the score line.
- Quick-lock design for easy circular blade setup to any PCB thickness.
- Hardened tooled steel long-life blades
- Large processing table, which can be angled to permit processed boards to fall away.
- For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.
- Four separating speeds available – adjustable by front rotary knob.
Specification
| Separator type |
Components side circular blade Solder side linear blade
|
| Operation |
Motorized driver
|
| Separation length |
0-400mm
|
| Separation speed |
adjustable
|
|
Mains voltage
|
dual voltage 230/115v 50-60HZ |
| Earthing stud |
10mm
|
|
Operation temp
|
15-25 |
|
Storage/transport temperature |
-20-50 |
|
humidity
|
non-condensing 10-85 |
|
Weight
|
40kg |
|
Dimensions
|
702*450*430mm |
|
The machines comply with the safety regulations of the EC directives | |
