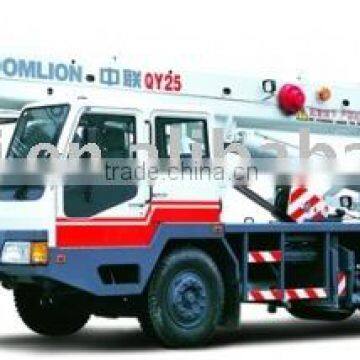

Crane/truck crane takes WD Deutz engine, streamline cabin,6x4 drive, Hydraulic Motor .(1) The truck crane adopts selfmade exclusive chassis with 6×4 drive. The ergonomic streamline semi-mounted drivers cab with double wing door, makes riders conveniently get on/off.
(2) The crane adopts WEICHAI Steyr engine which is specially developed for cranes that often travel at low speed. This kind of engine not only can produce large output torque when it starts and increase the traveling speed quickly, but also has excellent starting performance and good grade-ability.
(3) The crane is equipped with 8-gear gearbox which changes gear smoothly and the simple structure makes maintenance convenient.
(4) The crane is fitted with a 33.3m long hexagon-section boom which is made of high-strength steel, so that the boom has strong resistance to bend and torque. The special-designed circular arc sliding block makes the stress distribute much evenly. The local rigidity in boom improves the lifting capacity on boom with same thickness and achieved the goal of greater lifting capacity on lighter boom.
(5) The proportional control incorporates the advantages of traditional lever control and electric-hydraulic pilot control. It not only reserves the merits of safety&reliability of original control structure and low maintenance cost, but also realizes that the working speed of actuating mechanism is only proportional to the opening degree of control valves rather than affected by the load.Furthermore,it has improved the speed-regulation performance.
(6) The slewing mechanism has the functions of protecting the crane automatically when the crane is overloaded, reducing the impacts.
(7) The crane is fitted with outrigger lamps which can facilitate operation at night.
Item | Value | Remarks | ||
Working performance specification | Max.rated total lifting capacity (kg) | 25000 |
| |
Max.load moment of basic boom (kn.m) | 980 |
| ||
Max.load moment with max.main boom Length (kn.m) | 573 |
| ||
Max.lifting height of basic boom (m) | 11.5 |
| ||
Max.lifting height of main boom (m) | 33.8 | Deformation of main boom is not taken into consideration. | ||
Max.lifting height of fly jib (m) | 41.6 | |||
Working speed | Max.speed of single rope on main winch (M/min) | 120 | The 4th layer of drum | |
Max.speed of single rope on auxiliary winch (m/min) | 105 | The 2nd layer of drum | ||
Derricking time of boom (s) | 40 |
| ||
Telescopic time of boom (s) | 60 |
| ||
Slewing speed (r/min) | 02.2 |
| ||
Traveling specification | Max.traveling speed (km/h) | 72 |
| |
Max.gradeability % | 40 |
| ||
Min.turning circle diameter (m) | 20 |
| ||
Min.ground clearance (mm) | 220 |
| ||
Limits for exhaust pollutants and smoke | Comply with related standards | GB3847-2005 GB17691-2005 (Stage III) | ||
Oil consumption per hundred kilometers (l) | 46 |
| ||
Mass specification | Deadweight of crane in traveling condition (Kg) | 28930 |
| |
Complete vehicle kerb mass (kg) | 28800 |
| ||
Front axle load (kg) | 6300 |
| ||
Rear axle load (kg) | 22630 |
| ||
Dimension specification | Overall dimensions(L×W×H) (mm) | 13000×2500×3450 |
| |
Base on outriggers (m) | 5.36 |
| ||
Distance between outriggers (m) | 6.1 |
| ||
Main boom length (m) | 10.533.3 |
| ||
Main boom angle° | -280 |
| ||
Fly jib length (m) | 8 |
| ||
Offset angle of fly jib° | 0,30 |
| ||
Chassis | Model | ZLJ5314 | ||
Class | II | |||
Feature No. | ZLJ5314D3.1 |
| ||
Engine | Model | WP10.270 |
| |
Rated power (kw/r/min) | 199/2200 |
| ||
Max.output torque (n.m/r/min) | 1100/12001600 |
| ||
Manufacturer | Changsha Zoomlion | |||
