Specifications
Capacity: 50 tons (brand new truck crane)Drive style: 8x4
Emission:Euro III
Boom length: 11.1~42.0m
Jib length: 9.5m, 16m

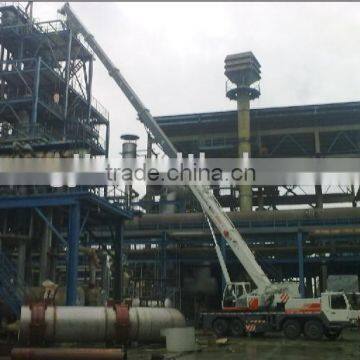

Hydraulic Truck Crane(brand new 50t Truck Crane,8x4 truck crane, QY50 mobile crane)
Capacity: 50 tons (brand new truck crane)
Drive style: 8x4
Emission:Euro III
Boom length: 11.1~42.0m
Jib length: 9.5m, 16m
Main Technical Specifications
Item | Value | Remarks | ||
Working performance specification | Max. rated total lifting capacity kg | 50000 | ||
Max. load moment of basic boom kN.m | 1764 | 1470(Outrigger beam half extended) | ||
Max. load moment with max. main boom length kN.m | 940.8 | 793.8(Outrigger beam half extended) | ||
Max. lifting height of basic boom m | 11.6 | |||
Max. lifting height of main boom m | 42.1 | Deformation of boom is not taken into consideration | ||
Max. lifting height of fly jib m | 58.3 | |||
Working speed | Max. speed of single rope on main winch m/min | 130 | The 4th layer of drum | |
Max. speed of single rope on auxiliary winch m/min | 72 | The 2nd layer of drum | ||
Derricking time of boom s | 50 | |||
Telescopic time of boom s | 95 | |||
Slewing speed r/min | 0~2 | |||
Traveling specification | Max. traveling speed km/h | 76 | ||
Max. gradeability % | 32 | |||
Min. turning circle diameter m | 24 | |||
Min. ground clearance mm | 260 | |||
Limits for exhaust pollutants and smoke | Comply with related standards | GB3847-2005 GB17691-2005 (Stage) | ||
Oil consumption per hundred kilometers L | 48 | |||
Mass specification | Deadweight of crane in traveling condition kg | 40600 | ||
Complete vehicle kerb mass kg | 40470 | |||
Front axle load kg | 14850 | |||
Rear axle load kg | 25750 | |||
Dimension specification | Overall dimensions(L×W×H) mm mm | 13300×2750×3650 | ||
Base on outriggers m | 5.92 | |||
Distance between outriggers m | 6.90 | |||
Main boom length m | 11.1~42.0 | |||
Main boom angle ° | -280 | |||
Fly jib length m | 9.5, 16 | |||
Offset angle of fly jib ° | 0 , 30 | |||
Chassis | Model | ZLJ5414 | ||
Class | ||||
Engine | Model | WP10.336 | QSL 325 | |
Rated power KW/r/min | 247/2200 | 242/2200 | ||
Max. output torque N.m/r/min | 1250/12001600 |
1424/1500
| ||
Manufacturer | Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd. | |||
Further information, please feel free to contact with us, we will offer our best services.
Fax: +86-021-54171572
Tel: +86-021-54171571(9AM to 6PM Beijing Time)
