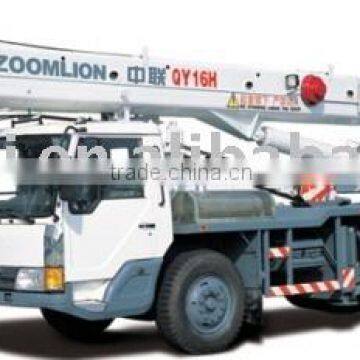

Truck Crane (Max. Rated Lifting Capacity 16t)

Name: Truck Crane (Max. Rated Lifting Capacity 16t)
Brand: ZOOMLION
SKU: 122879609
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Rated Lifting Moment:

408 KN.M

Max. Lifting Load:

16000KG

Max. Lifting Height:

38.5M

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Rated Lifting Moment 408 KN.M

Max. Lifting Load 16000KG

Max. Lifting Height 38.5M

Place of Origin Hunan, China

Brand Name ZOOMLION

Model Number QY16H431

Specifications

ZOOMLION truck crane: great performance and imported engine.

Main Technical Specifications

Item			Value	Remarks
Working performance specification	Max. rated total lifting capacity kg		16000
	Max. load moment of basic boom kN.m		710
	Max. load moment with max. main boom length kN.m		408
	Max. lifting height of main boom m		31.08	Deformation of boom is not taken into consideration.
	Max. lifting height of fly jib m		38.5
Working speed	Max. speed of single rope on main winch m/min		120	The 4^th layer of drum
	Max. speed of single rope on auxiliary winch m/min		90
	Derricking time of boom s		55
	Telescopic time of boom s		70
	Slewing speed r/min		0~2
Traveling specification	Max. traveling speed km/h		70
	Max. gradeability %		28
	Min. turning circle diameter m		20
	Min. ground clearance mm		250
	Limits for exhaust pollutants and smoke		Comply with related standards	GB3847-2005 GB17691-2005 (Stage III)
	Oil consumption per hundred kilometers L		38
Mass specification	Deadweight of crane in traveling condition kg		23000
	Complete vehicle kerb mass kg		22805
	Front axle load kg		6200
	Rear axle load kg		16800
Dimension specification	Overall dimensions (L×W×H) mm		12050×2500×3400
	Base on outriggers m		4.95
	Distance between outriggers m		5.4
	Main boom length m		9.8~30.8
	Main boom angle °		-2∼80
	Fly jib length m		7.5
	Offset angle of fly jib °		0 , 30
Chassis	Model		ZLJ5261
	Class		II
	Engine	Model	WP6.240
		Rated power kW/r/min	176 /2500
		Max. output torque N.m/r/min	800 /1300∼1500
	Manufacturer		Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.
