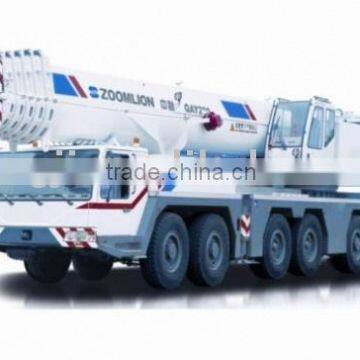

All-terrain Truck Crane (Max. Rated Lifting Capacity 220t)

Name: All-terrain Truck Crane (Max. Rated Lifting Capacity 220t)
Brand: ZOOMLION
SKU: 122879547
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Rated Lifting Moment:

7650kn.m

Max. Lifting Load:

220000kg

Max. Lifting Height:

97m

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Rated Lifting Moment 7650kn.m

Max. Lifting Load 220000kg

Max. Lifting Height 97m

Place of Origin Hunan, China

Brand Name ZOOMLION

Model Number QAY220

Specifications

ZOOMLION truck crane: great engine and great performance.

Technical parameters

Item			Specification	Remarks
Working performance	Max. rated lifting capacity kg		220000
	Max. lifting torque of basic boom kN.m		7650	Radius: 9m
	Max. lifting height of boom m		62.6	The specifications do not include deflection of boom and jib.
	Max. lifting height of jib m		96.2
Working speeds	Max. hoist rope speed (Main winch) m/min		124	At 4^th layer
	Max. hoist rope speed (Auxiliary winch) m/min		70	At 4^th layer
	Boom extending time min		10
	Boom derricking time s		≥90
	Slewing speed r/min		≤1.5
Traveling specifications	Max. traveling speed km/h		72
	Max.gradeability %		50
	Min. turning radius m		24
	Min. ground clearance mm		305
	Limit for smoke at free acceleration FSN		≤2.0	GB14761.6-1993
	Limit for exhaust emission		Conform to related standards.	GB3847-2005 GB17691-2005 Stage III GB3847-2005
	Oil consumption per hundred kilometers L		85
Weights	Self weight in traveling condition kg		72000
	Complete vehicle kerb mass kg		71805
	Axle load kg		12000
Dimensions	Overall dimensions(L×W×H) mm		16722×3000×3980
	Longitudinal distance between outriggers m		8.8
	Transversal distance between outriggers m		8.8
	m Boom length		13.8 61
	° Boom angle		-0.5 82
	m Jib length		10.75/18/18.75/26/26.75/34	Combined length
	° Offset		01530 0, 15, 30
Chassis	Model		ZLJ5720
	Type
	Engine	Model	OM502LA
		kW/r/min Rated power	420	At 1800r/min
		N.m/r/min Max. torque	2700	At 1080r/min
	Manufacturer		Changsha Zoomlion Heavy Industrial Science & Technology Development Co., Ltd.
