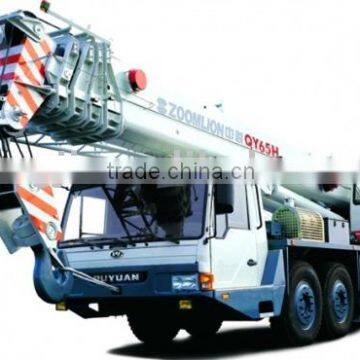

Crane(brand New 65t Truck Crane,8x4 Truck Crane, QY65 Mobile Crane)

Name: Crane(brand New 65t Truck Crane,8x4 Truck Crane, QY65 Mobile Crane)
Brand: Zoomlion
SKU: 122879571
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Rated Loading Capacity:

65000

Rated Lifting Moment:

2160kN.m

Max. Lifting Load:

65000

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Rated Loading Capacity 65000

Rated Lifting Moment 2160kN.m

Max. Lifting Load 65000

Max. Lifting Height 56m

Place of Origin China

Brand Name Zoomlion

Model Number QY65H531

Specifications

Capacity: 65 tons (brand new truck crane)
Drive style: 8x4
Boom length: 11.2~41.5m
Jib length: 9m, 15m
Engine Model: WP10.3

Capacity: 65 tons (brand new truck crane)

Drive style: 8x4

Boom length: 11.2~41.5m

Jib length: 9m, 15m

Engine Model: WP10.375

Main Technical Specifications

Item			Value	Remarks
Working performance specification	Max. rated total lifting capacity kg		65000
	Max. load moment of basic boom kN.m		2160
	Max. load moment with max. main boom length kN.m		1024
	Max. lifting height of basic boom m		12
	Max. lifting height of main boom m		41	Deformation of boom is not taken into consideration.
	Max. lifting height of fly jib m		56
Working speed	Max. speed of single rope on main winch m/min		140	The 4th layer of drum
	Max. speed of single rope on auxiliary winch m/min		120	The 2nd layer of drum
	Derricking time of boom s		65
	Telescopic time of boom s		100
	Slewing speed r/min		01.8
Traveling specification	Max. traveling speed km/h		71
	Max. gradeability %		30
	Min. turning circle diameter m		23.7
	Min. ground clearance mm		250
	Limits for exhaust pollutants and smoke		Comply with related standards	GB3847-2005 GB17691-2005 (Stage)
	Oil consumption per hundred kilometers L		55
Mass specification	Deadweight of crane in traveling condition kg		45000
	Complete vehicle kerb mass kg		44800
	Front axle load kg		19000
	Rear axle load kg		26000
Dimension specification	Overall dimensions(L×W×H) mm		13890×2750×3650
	Base on outriggers m		5.95
	Distance between outriggers m		7.00
	Main boom length m		11.241.5
	Main boom angle °		-280
	Fly jib length m		9, 15
	Offset angle of fly jib °		5 , 30
Chassis	Model		ZLJ5454	Feature No: ZLJ5454H3
	Class		II
	Engine	Model	WP10.375
		Rated power kW/r/min	276/2200
		Max. output torque N.m/r/min	1460/1400 1600
	Manufacturer		Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.
