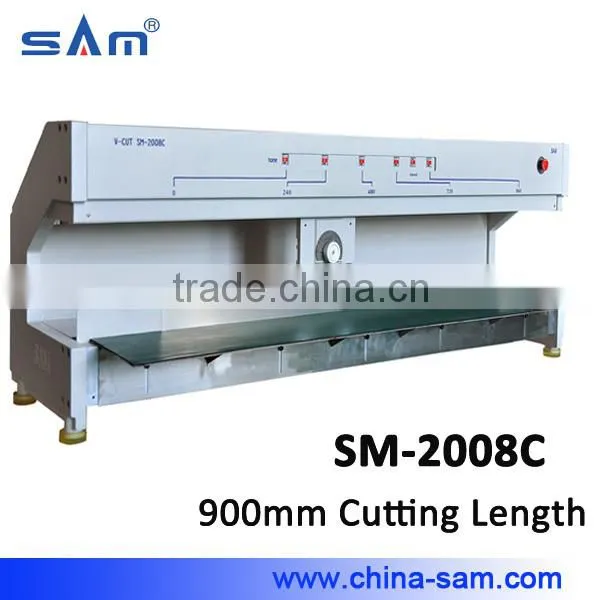

Help Center900mm Effective Cut Length PCB Depaneling Machine
Related Products
-
900mm Cutting Length PCB Cutting MachineUS$ 3,300 - 5,500MOQ: 1 Set -
Aluminium PCB Separator MachineUS$ 5,000 - 8,000MOQ: 1 Set
-
V-CUT Groove PCB Depaneling MachineUS$ 2,800 - 3,500MOQ: 1 Set
-
SM-2008 V-cut PCB Cutting MachineNegotiableMOQ: 1 Set
-
SM-2008 V-CUT Groove PCB Depanel MachineUS$ 2,800 - 3,500MOQ: 1 Set
Specifications
PCB depaneling machine1.all v-cut PCB suitable
2.separate both small or large PCB fast and economicaly.
3.cut length 900mm
Circular blade moving PCB separator machine
Features:
PCB Separator,SM-2008A separates both small and large PCBs fast and economicaly. To optimize operation,the separation length can be programmed.
Safe operation
The PCB is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.
The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.
Recommended pre-scored grooves
The pre-scored grooves can be interrupted by any number of cutouts.
If components project above the groove,the linear blade needs to be cut out, in such a case,contact us.
Programmable cutting lengths ranging to 960mm, eliminating time-consuming unnecessary board travel.
Motorized circular blade cuts against the linear blade to ensure clean, burr-free processing without board stress.
Programmable to exact cutting length required.
Will depanel PCBs with components 1mm from the score line.
Quick-lock design for easy circular blade setup to any PCB thickness.
Hardened tooled steel long-life blades
Large processing table, which can be angled to permit processed boards to fall away.
For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.
Technical Date
PCB panels
PCB thickess A: 0.8-3.2mm
The length of linear blade: 450mm
Remaining PCB thickness B: Typical: 1/3 of Dim.A Max: 0.8mm
Depth of scoring C: Min. 0.25mm
Increase in external dimensions after separation: 0.1-0.2mm
cutting samples:
Package
SAM provide four model SM-2008 series pcb depaneling machine suit your requirement. the difference of this four model is the blade and blade length. we have white blade and cab yellow blade for you option. the length of blade ,SM-2008 linear blade with 400mm ength ,SM-2008A linear blade 600mm,the max cut length is 600mm.(SAM can constomized the length for your pcb board).
-
Other Model Option:
