Specifications
1.Lowest stress,2.no dust,
3.no sundries on the fringe of PCB
4.cut all kind PCB,Especialy for separate the aluminium PCB
SM-3000 Guillotine and penumatic Aluminium PCB depaneling machine
Description:
The SM-3000 type depanning machines were designed to depanerlize prescored panelboards carefully without bending or tension stress, even sensitive SMD components like ceramic capacitors will not be damaged by the depanning process. Due to the special design of the knives also boards with high components placed close to the edges can be depanerlized safely, Based on a proven method of depanning. wedge-shaped knives are used to cut the panets within the groove. this enables boards of less than 1mm thickness to be separated safely and without creating stress, the machine is pneumatically driven using standard parts, it is very quiet with none of the usual compressed air noises.
- PCBs are separated even if sensitive components are 0.5mm from the score line with thickness less than 1mm, and height of up to 20mm.
- Smooth and quiet pneumatic-powered unit is foot pedal activated without operator stress.
- Wedge-shaped blades contour to v-groove score lines, operate in rocking motion, separating boards without bending or breaking.
- No safety risk to operator, since blades are never separated by more than the board thickness.
- Rotary knob easily adjusts blades to PCB score line.
Specifications:
Size:720*500*1000mm AC Power:220v
Weight:155kg Air pressure:0.4-0.6Mpa
Features:
1,Depanning process without vibration to prevent component damage.
2,Gap for inxertion of the board can easily be adjusted by means of the adjusting knob in the front of the machine.
3,Integrated waste suction prepared.
4,Depanning process without vibrations.
5,Easy-to-service design.
6,Pneumatically driven.
7,Operation and maintenance can be done also by unskilled personnel.
8,Pneumatic control placed in a separate unit for easier maintenance.

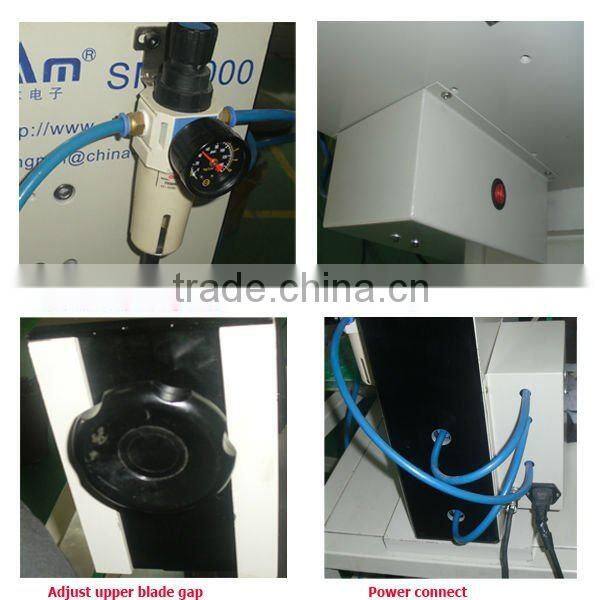

Parts Pictures:
Youtube video:
/watch?v=InYSGFZe7PM
Warranty:
the machine with one year warranty for free ,(no damge by people)
Shipping :
By express, by air, by train, or by sea. You appoint a forwarder, or we choose the best one for you

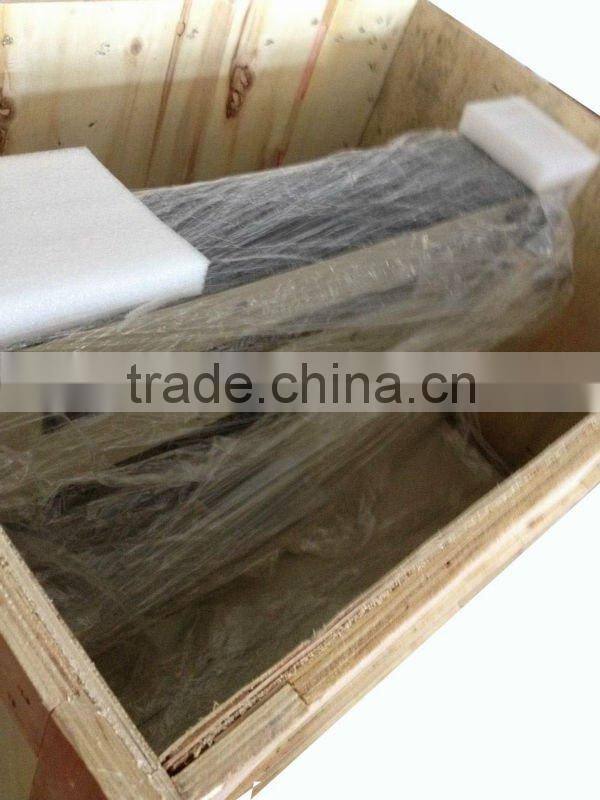

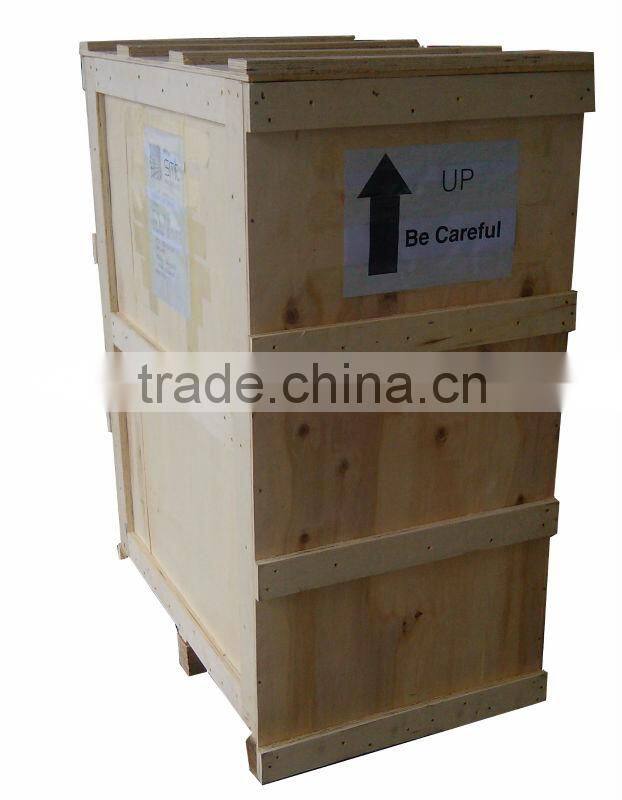

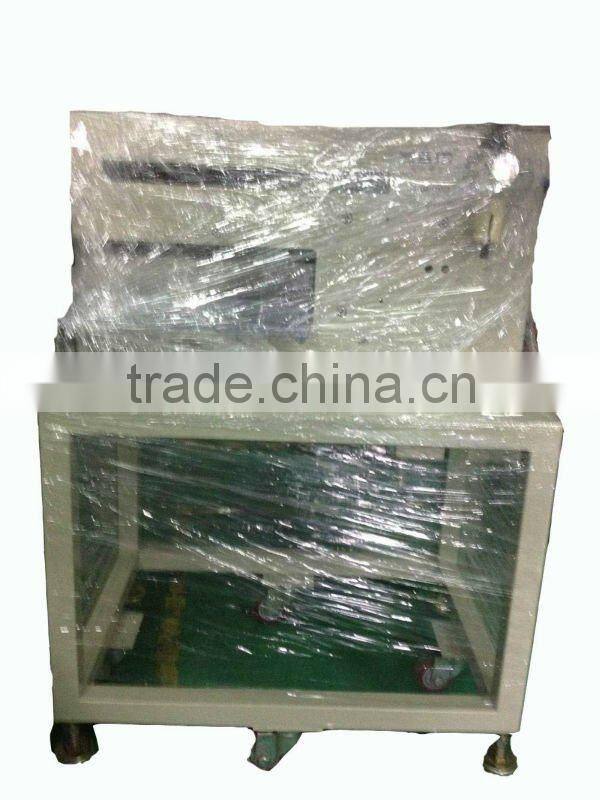

packaging:
Standard woooden case packing .packaging size : 800*550*1050mm
Other items :
