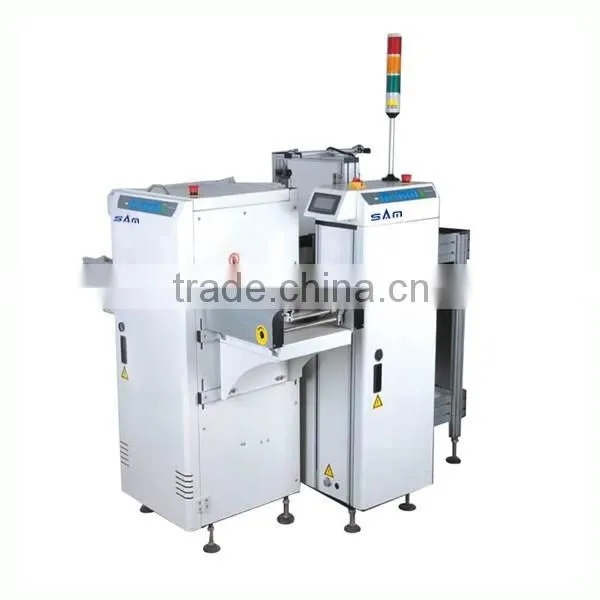

Magazine Turn Buffer Stacker

Magazine Turn Buffer Stacker thumbnail-1
Magazine Turn Buffer Stacker photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
SAM
Contact Supplier Request Quote Chat Now
Shenzhen SAM Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name SAM
Model Number SMC-1C100L
Voltage 220V
Weight 200kg
Dimension(L*W*H) 1245*1175*1600mm
Certification CE
Warranty one year warranty
After-sales Service Provided Engineers available to service machinery overseas

Feature:



Used for stocking PCBs between reflow oven and AOI.



Five operation mode: Loading ,Unloading ,FIFO,LIFO,Pass-through.



PLC Programming controller.



Easy operation Soft touch control panel.



SMEMA compatible.





Application example :







Technique Parameter :



Description

Used for loading&un-loading PCB from the Magazine

No of Magazine

Upper Conveyor:1;Lower Conveyor: 2

Cycle Time

Approx. 20 seconds or Specify

Indexing Pitch

10, 20, 30, 40mm or specify

Power Source

220VAC 50/60HZ

Air Pressure &

Consume

4-6 bar,Max 15ltr/min

PCB Thickness

Min 0.6mm









Specification :







Model

Size

Dimension

(L * W* H) (mm)

EffectivePCB Size( LxW) (mm)

Approximate

Weight (Kg)

Rack size

(L*M*H)mm

SMC-1C100M

M

1245*1175*1600mm

50*50-330*250

140

355*320*560

SMC-1C100L

L

1460*1258*1600mm

50*50-445*330

200

460*400*560

SMC-1C100LL

LL

1635*1450*1600mm

50*50-530*390

240

535*460*570
