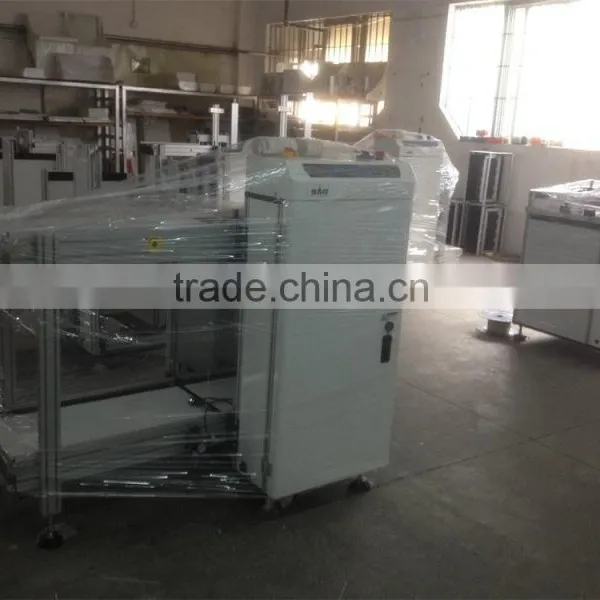

PCB Magazine Loader for SMT Assemby Line

US$ 1 - 1.01 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

SAM

Shenzhen SAM Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name SAM

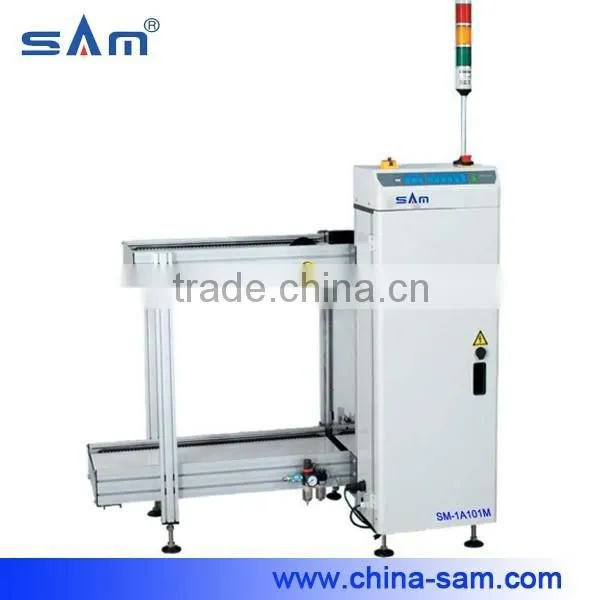

Model Number SMB-1A101M

Voltage 220V

Weight 140KG

Dimension(L*W*H) 600mm x 742 mmx 1170 mm

Certification CE

Warranty one year warranty

After-sales Service Provided Engineers available to service machinery overseas

Feature:

1.Sturdy and stable Design.

2.In house design control board.

3.User f riendly ‘soft touch’ LED membrane control panel.

4.Pressure regulated on pusher’sto prevent board damage.

5.Three points pneumatic clampingto align and secure magazine in position.

6.Self diagnostic Error Code display.

7. The pusher position can be adjust accordingto PCBthickness.

8. Used wear resistant cableto prevent intermittent problem.

9..SMEMA compatible

Technique Parameter :

Description	Used for loading & unloading PCBs from the Magazine
No. of Magazine	Upper Conveyor:1;Lower Conveyor: 2
Time Feed PCB	Approx. 6 seconds or Specify
Magazine Change Time	Approx. 30 seconds or Specify
Indexing Pitch	10, 20, 30, 40mm or specify
Power Source	220VAC 50/60HZ
Air Pressure & Consume	4-6 bar, 10ltr/min max.
PCB Thickness	0.6mm min.

Specification :

Machine	Model	Size	Dimension (L x W x H) (mm)	Effective PCB Size (L x W) (mm)	Weight ( KG )	Rack size
loader	SMB-1A101M	M	1330x765x1250	50x50-330x250	140	355x320x560
	SMB-1A102L	L	1650x845x1250	50x50-445x330	180	460x400x560
	SMB-1A203LL	LL	1800x909x1250	50x50-530x390	220	535x460x570
	SMB-1A202XL	XL	1800x970x1250	50x50-530x460	240	535x530x570
