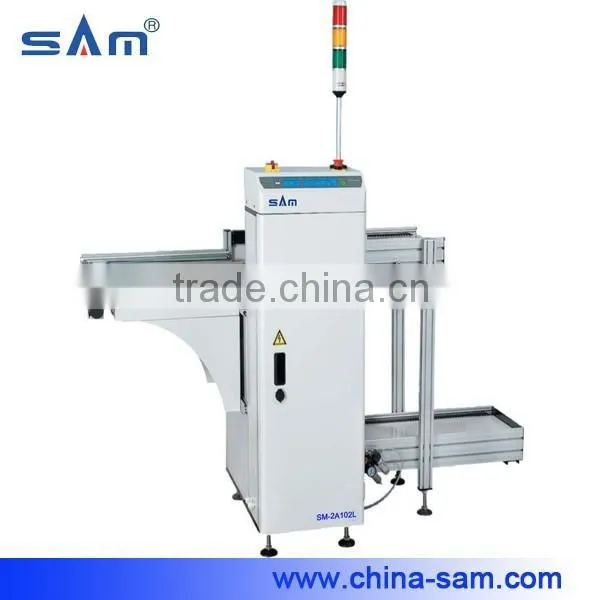

Automatic SMT PCB Un-Loader

US$ 1 - 1.01 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

SAM

Shenzhen SAM Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name SAM

Model Number SMB-2A102L

Voltage 220V

Weight 190kg

Dimension(L*W*H) 2220 x 845 x 1250 (L x W x H) (mm)

Certification CE

Warranty one year warranty

After-sales Service Provided Engineers available to service machinery overseas

Magazine PCB Un-Loader

Feature:

1.Sturdy and stable Design.

2.In house design control board.

3.User friendly ‘soft touch’ LED membrane control panel.

4.Pressure regulated on pusher’s to prevent board damage.

5.Three points pneumatic clamping to align and secure magazine in position.

6.Self diagnostic Error Code display.

7. The pusher position can be adjust according to PCB thickness.

8. Used wear resistant cable to prevent intermittent problem.

9..SMEMA compatible .

Application Example :

Technique Parameter :

Description	Used for loading & unloading PCBs from the Magazine
No. of Magazine	Upper Conveyor:1;Lower Conveyor: 2
Time Feed PCB	Approx. 6 seconds or Specify
Magazine Change Time	Approx. 30 seconds or Specify
Indexing Pitch	10, 20, 30, 40mm or specify
Power Source	220VAC 50/60HZ
Air Pressure & Consume	4-6 bar, 10ltr/min max.
PCB Thickness	0.6mm min.

Specification :

Machine	Model	Size	Dimension (L x W x H) (mm)	Effective PCB Size (L x W) (mm)	Weight ( KG )	Rack size
Un-loader	SMB-2A102M	M	1930 x 760 x 1250	50x50-330x250	160	355x320x560
	SMB-2A102L	L	2220 x 845 x 1250	50x50-445x330	190	460x400x560
	SMB-2A203LL	LL	2660 x 909 x 1250	50x50-530x390	230	535x460x570
	SMB-2A202XL	XL	2220 x 979 x 1250	50x50-530x460	260	535x530x570
