Specifications
1. high quality water based PCB cleaning machine2. water-based agent
3.Energy saving,envirnonment protect

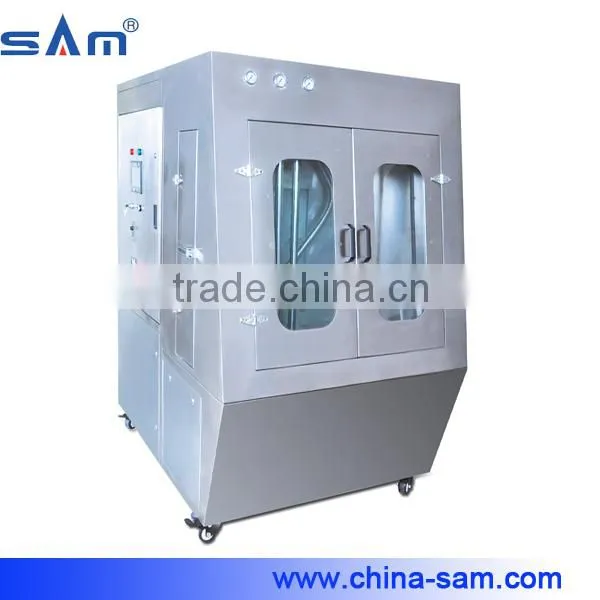

Water-based cleaner machine is a water-based cleaning process design cleaning equipment. Fully automatic finish cleaning- rinsing- drying process, the main application is stencil, plastic mesh, scraper, the furnace jig cleaning, etc.
The application fields :
Features :
1.Dedicated to water-based cleaning fluid to clean stencils, PCBA, etc. Process with high pressure spray system.
2.Double liquid tank, equipped with heating system, implementation needs cleaning and rinsing.
3.Technological process: cleaning chemical isolation - rinse (open loop/closed loop) - dry
4.Preparation of advanced automatic touch screen operating software, program files stored, used and its simplicity
5.Counting system function, can automatically accumulated cleaning sheet number and loop filter
6.Liquid and the pump pressure can be displayed through the panel pressure gauge, feedback the equipment running status
7.Window cleaning pressure can be adjusted independently, process is more wide, solve the SMT stencil tension in the process of high pressure cleaning problem
8.Drift lotion resistivity monitoring, ensure the cleanliness, the resistivity can be set up, meet the demand of different halftone technique
Max 740mm(L) ×740mm(W) × 40mm(H)
9.Consumables monitor alarm filter service life
Rinse times
10.Integral stainless steel fuselage, strong and durable, resistant to acid, alkali cleaning fluid, etc
11. Floating lotion emissions filtering, more environmental protection
12.Effect of high pressure fan + hot air drying, drying more quickly and thoroughly
13. Lower running cost, every time only 12 l liquid cleaning, clean end use compressed air recycling pipeline and pump more than residual liquid, liquid consumption can reduce 50%
Specification
| Apply screen size |
Max 740mm(L) ×740mm(W) × 40mm(H)
|
| Cleaning fluid capacity |
50L*2PCS(max)
|
| Best liquid usage |
40L*2PCS
|
| Clean and risn method |
Left-right moving high pressure liquid spray cleaning
|
| Drying method |
High pressure hot air(Optional super models)
|
| Clean time |
2-5 Min
|
| Cleaning fluid separation time |
40S
|
| Rinse time |
2-5 Min
|
| Rinse times |
1-99times (adjustable)
|
| Drying time |
2-5Min
|
| Cleaning liquid recycling |
1μm (Micro filter: rosin, solder paste, flux and pollutants)
|
| Rinse liquid emission filter |
5μm (Micro filter: rosin, solder paste, flux and pollutants)
|
| Liquid heating temperature |
room temp~60°C
|
| noise |
Less than 50 decibels
|
| Range of resistivity tester |
0~18MΩ
|
| DI water supply |
30~60L/min
|
| DI water pressure |
≤0.4Mpa
|
| DI water Gateway connecting pipe | 1 Inch |
| Air supply |
0.45Mpa ~0.7Mpa
|
| Power supply |
AC380V 50HZ 65A
|
| Total power |
33KW
|
| Net weight |
500Kg
|
| Air out size |
Φ124(W)×30mm(H)
|
| Dimension |
1600mm(L) ×1160mm(W) ×1850mm(H)
|
