UPVC male thread fitting mold

Specifications

1 Perfect design for the gate system
2 Moulds with insert to manufacture for various different types of fitting



Detailed Product Description

1.plastic pipe fitting mould
2.high quality and low price
3.delivery on time

General Mold Specifications:

Name	Pipe fitting mould
mould material	P20,H718,45#,2316
Plastic material	PVC,PPR,PP.PE,ABS,POM,PPCR…etc
Steel of Cavity & Core	DIN 1.2316/ DIN 1.2738/DIN 1.2344 /M300/ 718/ P20..etc
Steelof Mouldbase	S50C.LkM standard,HASCO,DME ect.
Nos of Cavity	1-n, or Customized
Hardnessof Cavity & Core	42-45HRC
Hardness of Wear Parts	42-48HRC
Corepulling system	Motor /oil cylinder/ stripping plate, angel pin…etc
Mould Accessories	DME/HASCO Standard …
Cooling system	In core baffle cooling and in cavity plate chain drilling type cooling
Surface finish	Diamond polish,
Molding life	500,000-1,200,000shots
Runner	Cold or Hot





Following is the essential information for your reference:



1. R&D   we support customer R&D, make the files or improve the designs if you needed.



2. Negotiation   the quality, price, material, delivery time, payment item ect.



3. Place an order according your own design or you choose our design.



4. Mouldaccording customers request to build the mould, before make the mould, we send mould designs to customer approval first, before move forward to production, and we send samples to customer to confirm first.



5 Sample shoot If customer is not satisfied with the first sample, we modify the mould and until meet customers satisfactory.



6 Products in store If your quantity is beyond our storage, we will provide lead time to you.



7. Delivery Delivery goods by sea or by air, according customers requirement.



Plastic pipe fitting mould:



1. Samples/Drawings & requirement from you



2. Mould design: we will communicate and exchange the opinion with you after you place an order.



3. Material Purchase: Steel cutting and Mould base tooling.



4. Assembling.



5. Inspection of mould: following and controlling the tooling processing.



6. Mould testing : we will inform you the date, than we will send you the inspection report of the sample and the injection parameters to you.



7. Your instruction and confirmation for shipment.



8. Readymade mould before packing.



Trade & Market



Main arkets:	North America South America Eastern Europe Mid East Eastern Asia Western Europe Northern Europe Southern Europe
Export Percentage:	90% - 100%

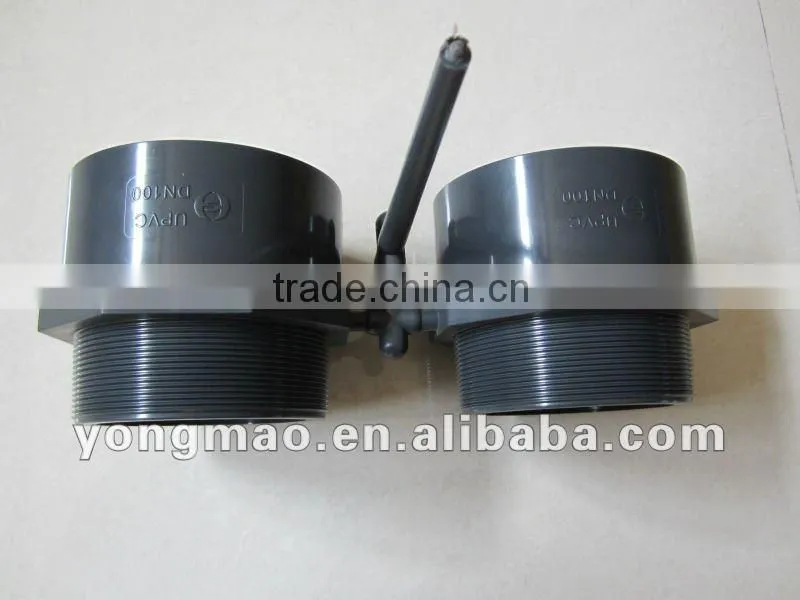

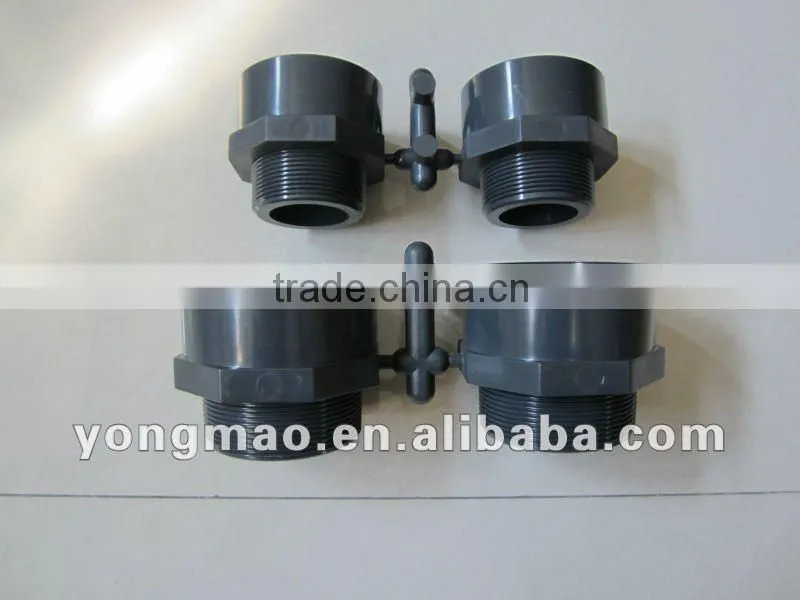

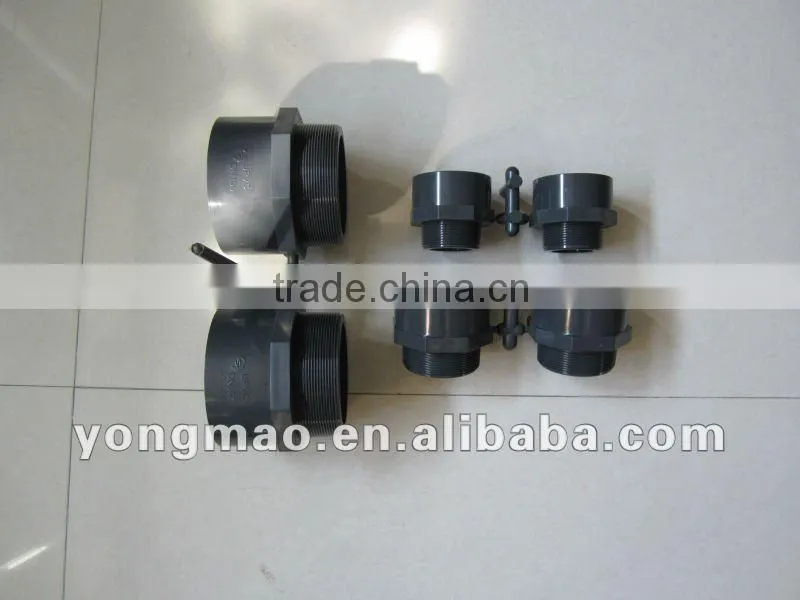

Attention:we sell moulds but not the products. Products of the mould are just for your reference and we have posted pictures, hoping you could get a better idea of our service.

 If you have any questions, please feel free to contact me.
