PVC Pipe Fitting Mould/ Drainage Fitting Mould /soundproof System

Name: PVC Pipe Fitting Mould/ Drainage Fitting Mould /soundproof System
Brand: YONGMAO
SKU: 122858515

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YONGMAO

Model Number:

YM PVC-2

Taizhou Huangyan Yongmao Mould Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YONGMAO

Model Number YM PVC-2

Shaping Mode Plastic Injection Mould

Product Material Steel

Product Other, PVC drainage fitting mould /soundproof

Specifications

PVC molds are manufactured from DIN 1.2316 and hardening of cores and moving parts guarantee the long life time of the moulds.

Materials:

Mouldbase: Standardization

Use, whenever possible metric standards like LKM for all the mould components. (including guide bushing, guide pin, ejector pin and so on)

Moudbase surface finishing

All plates should be painted with automotive paint blue or green to protect against the corrosion.

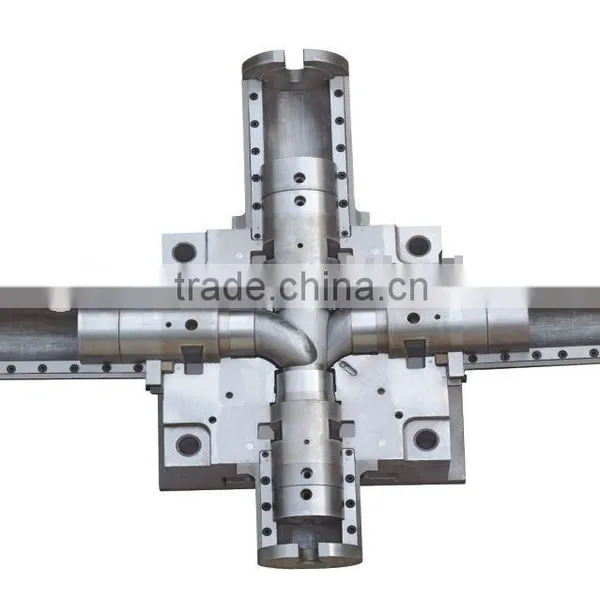

Cores & cavities

The cores, cavities and inserts made of stainless steel, hardened and tempered up to 45-48 HRC.

Surface finish: Mirror Finish-Diamond Polished

Core wedge blocks to be manufactured from P20 local steel and heat treatment by gas nitriding.

Wedge blocks need to be located in deep pockets to prevent movement.

Steel hardness in general:

It is good practice and necessary to have a difference of several points HRC hardness between

sliding steel mould parts to prevent pick up between the steel parts. For example any P20 core slides or wear plates should be gas nitride.

(Steel material and final hardness certificate will be supplied with the molds)

Type of fitting	PVC

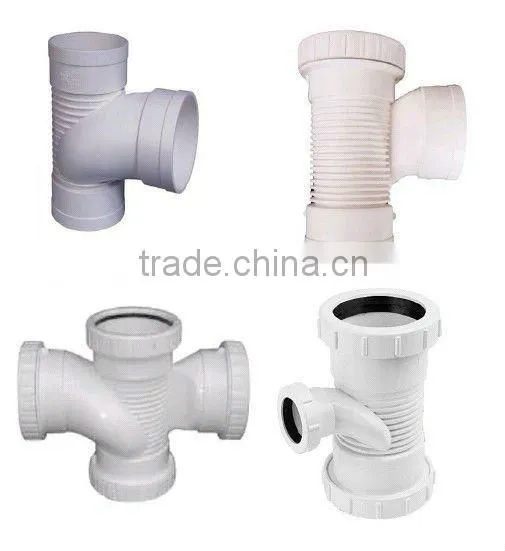

Description of goods (mold name)	Elbow, Tee, Coupling, Branch.....
Steel for Mold base	Standardization DIN 1.1730
Steel for Core,cavity	Werkstoff - DIN1.2316 HRC45-48
Mold components	HASCO/DME Standard spare parts
Core pulling system	Hydraulic cylinder or cam system
Mould life	1,000,000 shots
Runner type	Cold runner
Fitting standard	EN1452,EN1402,DIN19531
Working mode	Automatic mode
