TD-9800 Dual Modes Analog Digital Dmr IP67 Waterproof 5w Handheld Dtma Dual Band Vhf Digital Radio

TD-9800 Dual Modes Analog Digital Dmr IP67 Waterproof 5w Handheld Dtma Dual Band Vhf Digital Radio thumbnail-1
TD-9800 Dual Modes Analog Digital Dmr IP67 Waterproof 5w Handheld Dtma Dual Band Vhf Digital Radio photo-1
US$ 170 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-9800
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Hongkong/Guangzhou/Dubai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-9800
Type Handheld
Dimensions 114mm*54mm*33mm
Frequency Range 136-174MHz/400-470mhz
Storage Channel 1024
Talk Range 5km

TD-9800 dual modes analog digital dmr IP67 waterproof 5w handheld dtma dual band vhf digital radio









Digital two way radio portable Main function:





  • Large-size OLED Display
  • Dual Modes (Analog+Digital)
  • TDMA
  • GPS built-in(optional)
  • Superior Digital Voice
  • Submersible with IP67 Rating
  • Versatile Voice Calls
  • Vibrate(Optional)
  • Various Analog Signaling Type(Under Development)
  • Secure Communication
  • Software Upgradeable
  • Highly Compatible Accessory Socket
  • Compliant with MIL-STD-810 C/D/E/F/G and IP67 standards
  • Large Speaker with quality audio



1). Specification of digital walkie talkie (TD-9800)







General
Frequency range UHF:400-470 MHz
VHF:136-174MHz
UHF:350-400 MHz
UHF: 450-520MHz
Channels 128
Zones 16
Channel spacing 12.5KHz 25/20/12.5KHz(Analog)
Voltage 7.4V
Battery capacity 2200mAh Li-ion battery/2500mAh Li-Poly battery
Battery Life(5/5/90) Digital mode:16H(GPS off)
Analog mode:11H(GPS off)
Frequency stability ±1.0ppm
Antenna impedance 50 ohm
Dimension 126*53*34mm
Transmitter
RF Power Output VHF High:5.0W    UHF high: 4.0W
Low:1.0W
4FSK Digital Modulation 12.5kHz for data:7K60FXD
12.5kHz for data and voice:7K60FXE
FM Modulation 12.5 kHz:8K50F3E
Modulation Limitation +/- 2.5kHz @ 12.5kHz
FM noise 40Db/43Db/45Db
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB/70dB
Audio Response ≤3 dB
Audio distortion 3%
Digital Vocoder Type AMBE3000++
Receiver
Digital Sensitivity 5% BER:0.22 uV
Analog Sensitivity 0.22 uV (12 dB SINAD)
Intermodulation rejection ratio 60dB
Adjacent channel selectivity 60 dB
Spurious emissions 70 dB
FM noise -40dB
Audio Response +1/-3 dB
Audio output power 1200mW
Audio distortion 3% (typical)
Conduction Radiation Emission ≤-57dBm
GPS precision ≤-10m(Good signal conditions )
Environmental Specifications
Operating Temperature -20°C—60°C
Storage Temperature -30°C—+85°C
Humidity MIL-STD-810C/D/E/F
Shock&Vibration MIL-STD-810C/D/E/F
Dust & water Protection  IP67 standard
U.S Military Standard MIL-STS-810 C/D/E/F/G

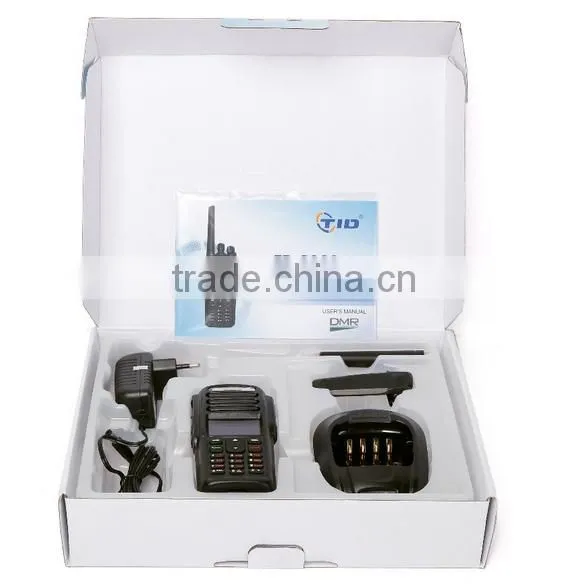

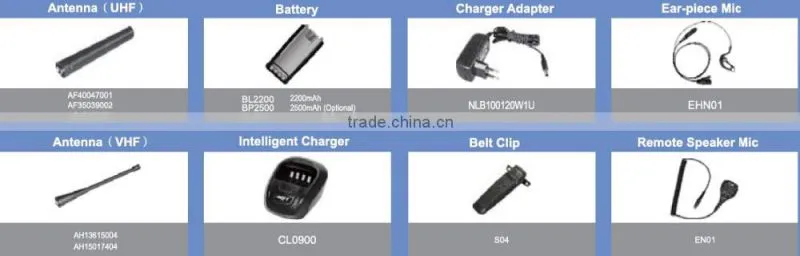

2).Accessories



1).Battery Pack 1 set
2.Antenna 1 set
3).Charger 1 set
4).AC Adapter 1 set
5).Belt Clip 1 set
6).Hand strap 1 set

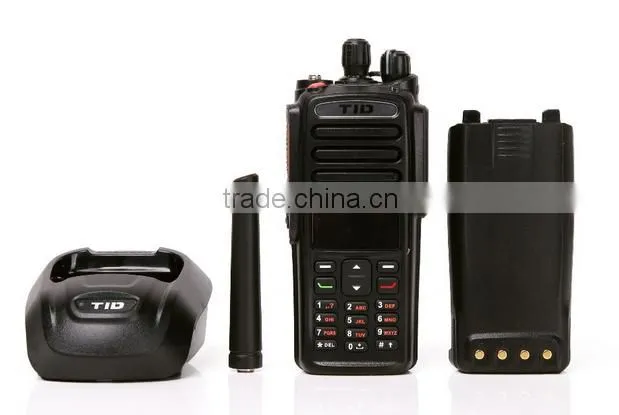

Detail Pictures:
