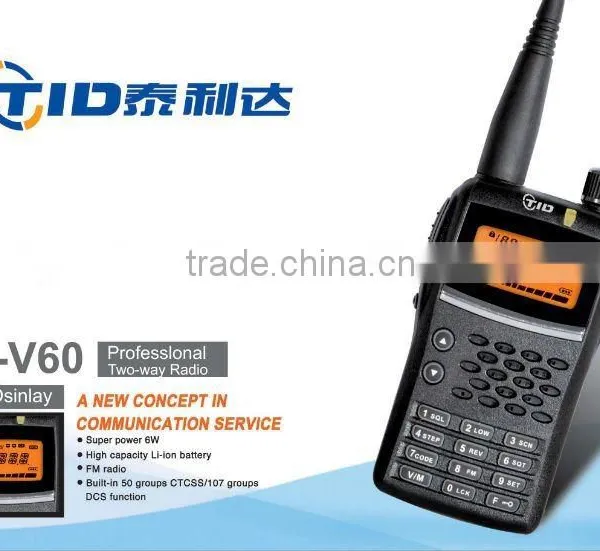

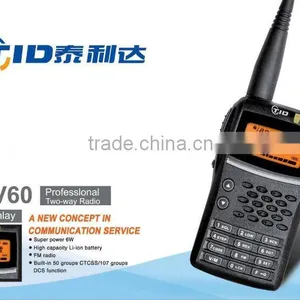

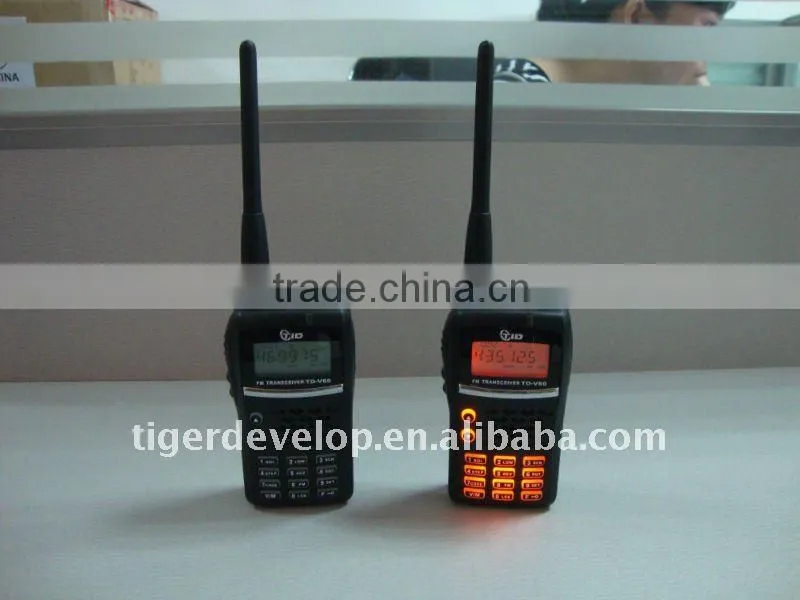

Td-v60 Vhf/uhf Handheld Walkie Talkie 5W 1200mAh Long Distance Talkabout

Td-v60 Vhf/uhf Handheld Walkie Talkie 5W 1200mAh Long Distance Talkabout thumbnail-1
Td-v60 Vhf/uhf Handheld Walkie Talkie 5W 1200mAh Long Distance Talkabout photo-1
US$ 30 - 38 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-V60
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Hongkong/Guangzhou/Dubai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-V60
Type Other, Handheld, Property Two-way radio
Dimensions 98mm*53mm*30mm
Frequency Range 136-174MHz / 400-470MHz
Storage Channel 128
Talk Range 5-7km

Td-v60 vhf/uhf handheld walkie talkie 5W 1200mAh long distance talkabout



Main Features



  • FM radio ,can stre up to 25 radio staions
  • transmission end prompt
  • PC programmable
  • Multi-fnctional keypad lock
  • wide / narrow bandwidth selectiv
  • power on password protection
  • scrambler
  • 128 memory channels
  • CTCSS / DCS
  • VOX
  • COMP function
  • Channel name editable



1).  Specification of Profesional FM transceiver  two way radio cb radio ( TD-V60)







1). Frequency Range

 136-174Mhz ,245-246MHz,400-470MHz,445MHz-520MHz
2). Channel Capacity 128
3). Channel Spacing  5,10,12.5,20,25,30,50KHz optional
4). Operation Voltage DC7.4V  Li-ion
5). Channel No.  128
6).Antenna impedance 50Ω
7).Mode of operation simplexor semi-duplex
8).Operating Temperature -20~50 °c
10). Dimension(H*W*D)(Without Antenna) 98*53*30mm
11). Weight(With Antenna & Battery)  220g







2).Accessories



1).Battery Pack 1 set
2.Antenna 1 set
3).Charger 1 set
4).AC Adapter 1 set
5).Belt Clip 1 set
6).Hand strap 1 set







 Td-v60 vhf/uhf handheld walkie talkie 5W 1200mAh long distance talkabout







3).Transmitter



1). RF power output 1w / 2W / 4w
2). Current ≤1.6A
3). Maximum deviation ≤5KHz /<2.5KHz
4). Intermediation sensitivity 8-12mV
5). Intermediation distortion ≤5%
6). Spruious radiation ≤7μW
7).Adjacent channel power  ≥66dB(wideband) ≥60dB(narrowband)
8).Modulation mode  16ØF3E(wideband) ,11Ø F3E(narrowband)







4).Receiver



1). RF sensitivity 0.18μV
2). Audio distortion ≤5%
3). Audio power ≥40MW
4). Selectivity ≥60dB(wideband) ,≥55dB(narrowband)
5. Spurious rejection ≥55dB
6).Intermediation ≥60dB(wideband) ,≥55dB(narrowband)
7). Spurious response ≥55dB
8).Blocking  ≥85dB















Td-v60 vhf/uhf handheld walkie talkie 5W 1200mAh long distance talkaboutTd-v60 vhf/uhf handheld walkie talkie 5W 1200mAh long distance talkaboutTd-v60 vhf/uhf handheld walkie talkie 5W 1200mAh long distance talkabout







Packaging & Shipping

Payment Terms:

1. 100% T/T Advance

2. Western Union

3. Sample by paypal

Shipping Terms:

1.EX-works Guangzhou

2. EX-works Hongkong

3. EX-works Xiamen

4. EX-works Dubai

 Shipping Method:

The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…

 Lead time:

 Most of our products have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.

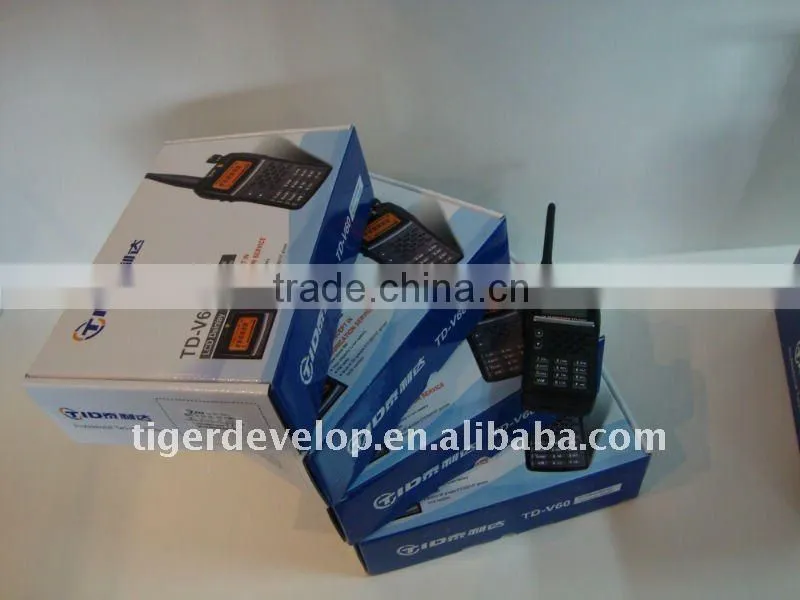

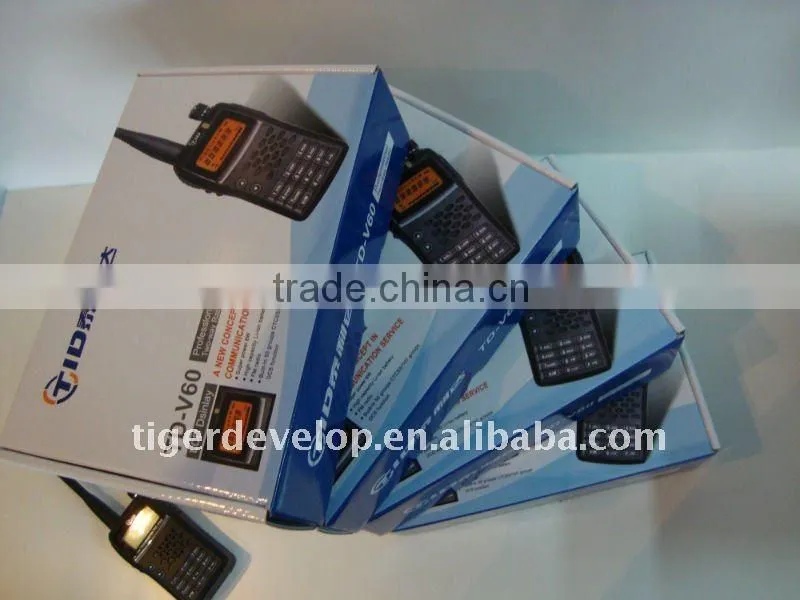

 Packaging :

 Unique packaging with durable, environmental , beauty design character (plastic bag color gift box) .
