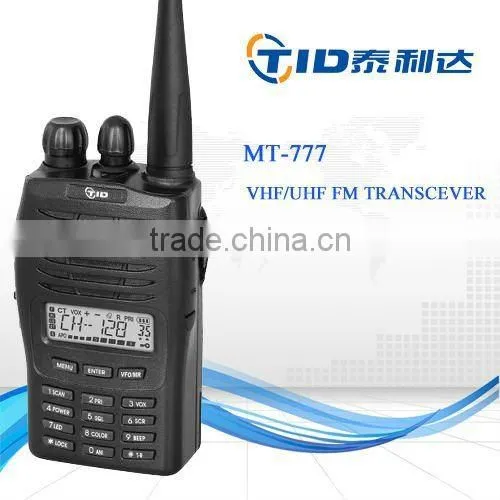

best selling portable wireless vhf two way radio

Specifications

best selling portable wireless vhf two way radio
1.Emergency Button
2.Full Display
3.VOX
4. 3 Color LCD

best selling portable wireless vhf two way radio



 Functions

1. ANI CODE(PTT ID) *Option
2. Scrambler *Option
3. VHF 5W/ UHF 4W output power
4. 128 memory channels
5. Built-in 50 CTCSS and 104 DCS
6. Wide (25kHz) and Narrow(12.5kHz) channel spacing programmable in separate channels
7. Come with 1200mAh Li-ion battery/1600MAH option
8. Input Frequency directly by keypad
9. VOX built-in
10. Frequency Scan & CTCSS Scan
11. Three different scan type: TO/CO/SE
12. Three color LCD backlight display
13. Programmable by PC software
14. Priority Scan Function
15. Adjust power High/Low
16. Switching between Channel/VFO
17. Display Channel+ Frequency mode.
18. Adjust squelch level (0-9)
19. Busy channel lockout
20. Keypad lock
21. Reverse Frequency Function
22. Channel step 5k,10k,6.25k,12.5k,25k
23. Program alphanumeric channels name
24. Self-program
25. Voice Annunciation
26.  136-174MHZ/400-470MHZ/240-250MHZ/450-512mhz/350-390MHZ



Technical:
Frequency Range 136-174MHz,245-246MHz,400-470MHz
Working Temperate -20°C-+50°C
Operating Voltage DC 7.2V
Operate Mode Simplex or Semi-duplex
Dimension 100mm×55mm×32mm (Not included Antenna)
Weight 220g (Including battery)
Antenna impedance 50Ω

Transmitter
Frequency Stability ±2.5PPM
Output Power ≤5W
Max Frequency Deviation ≤5KHz
Audio Distortion ≤3%
Modulation Character +3dB-3dB
Adjacent Channel Power ≥65dB
Spurious Radiation ≤7.5UW(-36db for CE)
Occupied Bandwidth ≤16KHz

Receiver:
RF Sensitivity ≤0.2UV(12DB SINAD)
Audio Distortion ≤3%
Audio Response +2dB-10dB
Adjacent Channel Selectivity ≥60dB
Intermodulation Rejection ≥60dB
Blocking ≥80dB
