Product name:

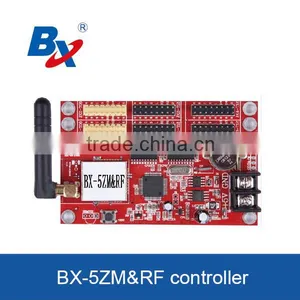

BX-5ZM&RF Stage subtitle led controller
Technical support before sale
Any customers who want to buy our BX controllers, should confirm the controller model with our technical persons in advance(u can check with us by TM ) ,if customers who bought the unsuitable models without asking our technical persons,we won't be responsible.
All the product pictures are for your reference, if there is a little bit color difference with reality,it is normal.
Shipment and Payment
1. We accept T/T ,Western Union or on Escrow.
2. Goods will be delivered within 1-2 business days (excluding weekends and holidays) after payment.
3. We won't be responsible for accidents, lost , delay or accurate shipping time since express service is provided by express company.
4. Any importing charges or fees are on buyers.
Return items
1. If the controller is defective, please notice us within 1-2 days after you receive the goods.
2. Returns accepted within 7 days, we will change goods for you.
3. The controller should be returned in its original conditions.
4. Buyers should afford all freight cost.
The first manufacture who produced two kinds of wireless modes for stage subtitles controllers.
This controller could be used in all kinds of parties and opera troupes, as to show the librettos or some other informations. BX-5ZM&RF is the latest stage subtitles controllers of ONBON, which adopts two kinds of wireless modes: RF and infrared remote control. RF used for downloading and the synchronous of the screens; Infrared remote controller used for select showing informations.
Product model:
BX-5ZM&RF
Products configurations:
1 set BX-RF100S(Including one 1.5M antenna);
1 set BX-5ZM controller(Including one antenna and one infrared receiver);
1 set infrared remote controller;
Products functions:
Support Infrared remote control, as to control the showing informations of the screen, like: librettos, plot summary or emergencies;
Support horizontal screen and vertical screen display synchronously;
Support many kinds of fonts and font sizes;
Support starting Logo which could exhibit your enterprise's image;
Support RF wireless communication.
Products features:
Simple installation, wireless, offline.
Wireless: There's no need for any communication cable between the screens, convenient to take and operate simple.
Offline: No need to take PC when on the show. Keep several librettos on the screen, and controlled by infrared remote controller.
With 10 scripts in the controller, by infrared remote controller, to switch the subtitle.
Technical parameters:
Product name BX-5ZM LED Stage Subtitles Controller
Products status The latest 5th generation products, put into the market on Oct, 2013.
Control area 48K pixels
2048*16 1536*32 1024*48 768*64
Screen types All kinds of LED single&dual color screen
Software function Support Informing messages/Troupe LOGO/Subtitle edit, and control the display content;
Communication port RF wireless
Interface 2nos T8 and 4nos T12
Bright regulation 16 grades brightness, support manual and auto-timing adjustment/remote control
Working voltage 5V(3.5V-6V wide voltage)
Maximum power ≤1W
Working temperature -40°C~80°C
Software LedshowZM 2015
User manual “LedshowZM 2013 user manual”
Applications:
When configurate the stage screen, it needs one main screen and several assistant screens. With infrared receiver in the main screen, cannot installed in the assistant screens.
Should pay more attention to the installation station, angle and proper distance of infrared receiver.
The control angle of infrared remote controller is ±45°, maximum distance is 12 meters.
Users should keep 10 meters far from the main screen.
