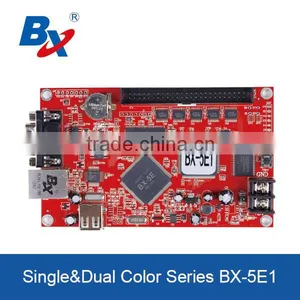

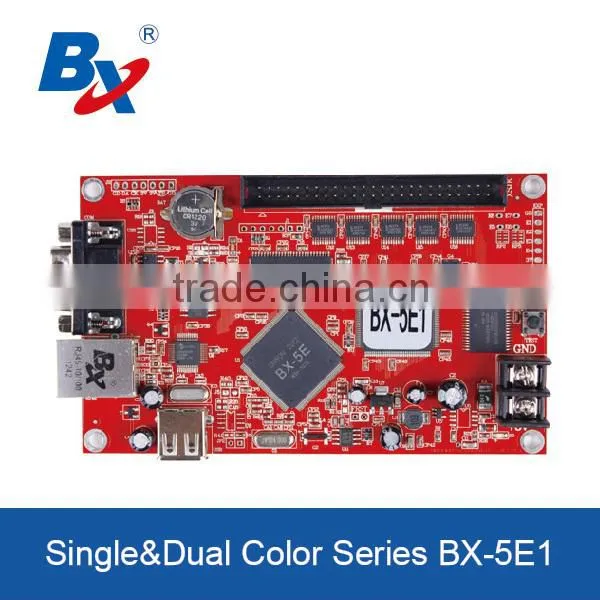

BX-5E1 LED Display Module Controller

BX-5E1 LED Display Module Controller thumbnail-1
BX-5E1 LED Display Module Controller photo-1
US$ 38.1 - 44.4 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BX
Model Number:
BX-5E1
Contact Supplier Request Quote Chat Now
Shanghai Onbon Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Factory(EXW)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name BX
Model Number BX-5E1
Usage Other, outdoor/indoor/semi-door
Tube Chip Color Other, single and dual color
Display Function Other, Graphic/Text/Animation

Product name:

BX-5E1 LED display module controller



Technical supports before sale

Any customers who want to buy our BX controllers, should confirm the controller model with our technical person in advance(u can check with us by TM ) ,if customers who bought the unsuitable models without asking our technical person,we won't be responsible.

All the product pictures are for your reference, if there is a little bit color difference with reality,it is normal.



Shipment and Payment

1. We accept T/T ,Western Union or on Escrow.
2. Goods will be delivered within 1-2 business days (excluding weekends and holidays) after payment.
3. We won't be responsible for accidents, lost , delay or accurate shipping time since express service is provided by express company.

4. Any importing charges or fees are on buyers.



Return items

1. If the controller is defective, please notice us within 1-2 days after you receive the goods.

2. Returns accepted within 7 days, we will change goods for you.

3. The controller should be returned in its original conditions.

4. Buyers should afford all freight cost.



Applications:
BX-5E series is based on network application, support LAN and internet;
Widely used in all kinds of super large lintel screen and cluster display system;
A best choice for single screen or cluster display system. Meet all kinds of complex requirements.

Features:
♦Support super large screen, on-board 100M Ethernet Interface, MAC bindings Mechanism, Ethernet auto-connection
♦Support PC direct connection/cross-Ethernet connection/cross-internet connection, support firmware update online
♦3.5V- 6.5V wide voltage range: -40°C~80°C wide work temperature
♦Support  temperature /temperature & humidity /noise sensors



Technical parameters:


Product model BX-5E1
Product status The latest 5th generation products,put into market on Jan 2013.
Control area Single/Dual color 256K:  2048*128 1344*192 1024*256
Memory storage  4MByte
Screen types  All kinds of  single and double color LED screens
Software function Screens cluster management/multi-program/multi-areas display/multi-languages
Program type Normal/Shared program
Program quantity  Support 512 programs,32 areas for each program
Area  type Image/text/animation/lunar calendar/digital clock/analogue clock/timer/temperature/temperature & humidity/noisy
Frame mode Most advanced colorful / magic graphics frame/Area frame
Colorful Background Not support
Time mode Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode 100M ethernet/Serial port with RS232&RS485/USB
Interface 1 nos 50PIN
Sensors supported Temperature /humidity
Remote control Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation 16 grades brightness, manual and auto-timing adjustment/remote control
Power on/off mode Auto-timing powered on/off /remote control
Voltage 5V (3.5V~6.5VwideVoltage)
Maximum power ≤2.5W
Temperature -40°C~80°C
Secondary development Provide the DLL and corresponding demos
Software LedshowTW2015
User manual LEDshowTW software user manual



Notes: Because of the update, the actual functions and parameters may have some differences with the one on the website.
