Product name:

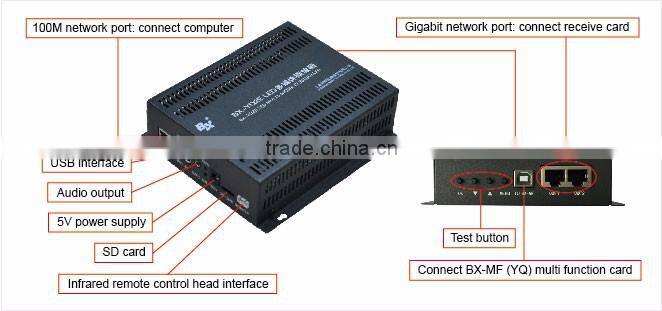

BX-YQ4 asynchronous control card for big screen
Technical supports before sale
Any customers who want to buy our BX controllers, should confirm the controller model with our technical persons in advance(u can check with us by TM ) ,if customers who bought the unsuitable models without asking our technical person,we won't be responsible. All the product pictures are for your reference, if there is a little bit color difference with reality,it is normal.
Shipment and Payment
1. We accept T/T ,Western Union and Escrow.
2. Goods will be delivered within 1-2 business days (excluding weekends and holidays) after payment.
3. We will be not responsible for accidents, lost,delay or accurate shipping time since express service is provided by express company.
4. Any importing charges or fees are on buyers.
Return items
1. If the controller is defective, please notice us within 1-2 days after you receive the goods.
2. Returns accepted within 7 days, we will change goods for you.
3. The controller should be returned in its original condition.
4. Buyers should afford all freight cost.
Transcend the tradition,
Decide LED future,
BX asynchronous control cards used for LED full color display screens by it’s best controlling technology,
And replace of the present LED synchronous control cards by it’s simple construction and operation,
As to realize network controlling and cluster sending,
It will become the mainstream products on LED full color controlling technology,
On Feb, 2014, BX-YQ series released,
Will lead the population of Led asynchronous full color display screens on network application.
Products model
BX-YQ1/YQ1-75/YQ2/YQ2D/YQ2E/YQ3/YQ4/YQ5
Products application
Support high refresh,suppor cloud communication.
Support all kinds of Mainstream screen driver chip
On-board 100M Ethernet port,audio port, SD cassette and double USB port;
Support video and audio outputting;
Support U disk display directly,also support importing display;
Steady performance, simple installation and operation;
Widely used on all kinds LED full color display screens and LED Media full color screen cluster systems;
Together with the LedshowGG information cluster release platform(WEB version)
On the field of network cluster control and 3G/4G wireless cluster control, YQ series have obvious advantage
Features
Support wide sized screens, abundant display functions;
Best techniques and quality.-40℃~80℃ wide working temperature;
Support firmware update online;
Support temperature sensor/ temperature&humidity sensor /noise sensor /brightness sensor;
Support IR controller/Button menu settings;
Technical parameters:
| Product name | BX-YQ4 asynchronous control card for big screen |
| Products status | Launch in the market in Sep, 2015. |
| Control area | 1920K pixel: 1920*1024, length≤1920, height≤1024 |
| Gray scale | 65536 grade |
| Screen types | All kinds of small size LED full color screen,one card to one screen |
| Hardware configuration | 1080 hard-decision decoding processor/Main frequency 1GHz, 512MB DRAM |
| Memory storage | With 4GByte Flash |
| Software function | Groups cluster management/multi-program editing/multi-area display/multi-language |
| Program type | Normal/urgent announcement |
| Program quantity | Support 512 programs, each program with 8 areas |
| Area type |
Image/text/subtitle/video/lunar/time/dial/timer/temperature/temperature & humidity/ noise/weather forecast |
| Clock mode | Lunar/dial/clock in Chinese and English/timer (all support multi-groups) |
| Communication port | Support 100M Ethernet and 3G/4G wireless transfer |
| Sensor supported | Temperature/temperature & humidity/noise/brightness |
| Remote control | Select program/volume adjustment/Brightness adjustment/power on & off/screen test |
| Brightness adjustment |
256 grades brightness, support auto-timing adjustment/software adjustment/ remote control/auto adjustment |
| Power on/off | Support auto-timing power on & off/software power on & off |
| Working voltage | 5V (4.5V-6.5V wide voltage; please use good quality of power) |
| Maximum power | ≤12W |
| Working temperature | -40℃~80℃ |
| SDK | Support the DLL, or the protocol |
| Software | LedshowYQ multi-media player |
| User manual | BX-YQ user manual |
Notes: Because of the update, the actual functions and parameters may have some differences with the one on the website.
