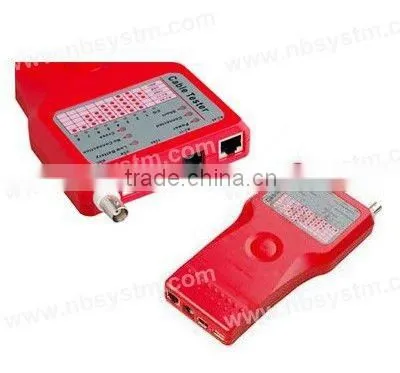

Help Center5 in 1 Cable Tester for UTP STP RJ45, RJ11 RJ12, BNC, USB & IEEE1394
Related Products
-
Cable Tester LAN USB Ethernet Network RJ-45 Cat5 RJ11US$ 1.2 - 5MOQ: 300 Pieces -
Mini Cable Tester for UTP STP RJ45US$ 1.2 - 5MOQ: 300 Pieces
-
Pro LAN Cable Continuity Tester With Master & RemoteUS$ 1.2 - 5MOQ: 300 Pieces
-
Remonte Cable Tester for UTP STP RJ45 Cable,coaxial Cable, Telephone LineUS$ 5 - 30MOQ: 50 Pieces
-
Cable Tester for Communication and Testing DeviceUS$ 5 - 30MOQ: 50 Pieces
Specifications
1, 5 in 1 Cable Tester for UTP STP RJ45, RJ11 RJ12, BNC, USB & IEEE13942, Carrying Case, card box packing
3, UL, CE, RoHS
Cable Tester
Description:
This 5 in 1 Cable Tester tests 5 typical Phone, LAN and Computer cables. It tests installed cables or patch cords with RJ-45, RJ-11, 1394, USB and BNC connectors. It is intended to test cables with straight through connections not cables with reversed or transposed connections like some LAN crossover cable or reverse wired telephone cables.
This network cable tester is an ideal tool for testing the Continuity, Miswiring, Open, Short, Cross Over, Grounding of Cable.
Features:
1, Test 5 types of cables (RJ-45, RJ-11, 1394, USB and BNC)
2, Simple one button test
3, Ergonomic portable handheld design
4, Test installed wiring or patch cables
5, Remote unit stores in Main unit
6, 600 feet test distance (RJ-45 / RJ-11 / BNC)
7, Convenient battery access
8, Low Battery Indicator
9, LEDs indicate connections and faults of wire and pins
10, Beeper provide audible annunciation of test results
11,Tests shielded (STP) or unshielded (UTP) LAN cables
12, Test shields in 1394 and USB cables
Specifications:
1, Cable Tested:
- UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568)
- RJ-11 cables with male connectors, 2 to 6 conductors installed
- 1394 Cables with Type 1 plugs on both ends
- USB cables with Type A flat plug on one end and type B square Plug on other end
- BNC cables with male connectors
2, Faults Indicated: No Connections, Shorts, Opens and Crosses
3, Low Battery Indicator: LED lights to indicate low battery
4, Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included)
5, Item Dimensions: appox. 185 (L) x 100 (W) x 25 mm (7.28' x 3.94' x 0.98' inch)
6, Item Weight: 195 g (6.88 oz) (Battery excluded)
One Set Included:
1, 5-in-1 Network Cable Tester
2, 1 x Far End Remote Jack (USB RJ45 RJ11 1394) (Attached to the main unit)
3, 1 x BNC Remote Jack
4, 1 x protective pouch
5, 1 x Instruction Manual
6, Standard Factory Package
Service:
1, Our promise LIFETIME WARRANTY.
2, As long as quality problem,we will deal with it asap and repair or replace or return funds.
Our slogan is "100% flawless quality,perfect service,lowest price". Welcome to our website:
