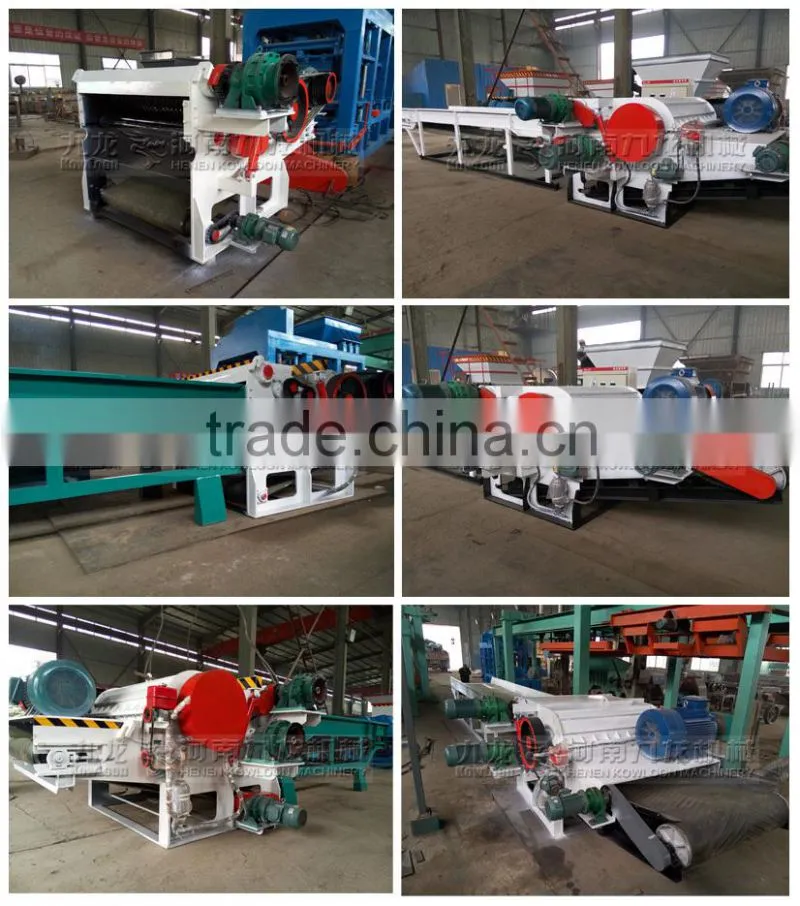

straw hammer mill crusher
♣ Industrial shredder ♣ Sawdust making machine ♣Drum chipper ♣ Disc chipper
♣ Wood shaving machine ♣ Wood sawdust machine ♣ Wood flour mill ♣ Wood pellet machine
♣ Wood debarker ♣ Chaff cutter ♣ Drying machine

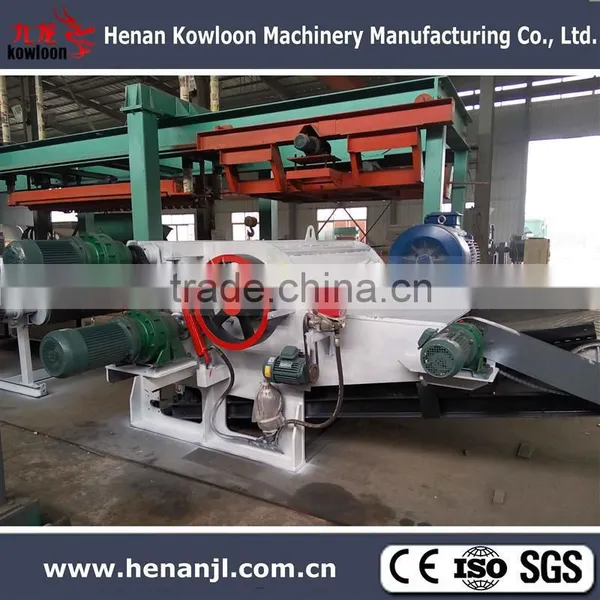

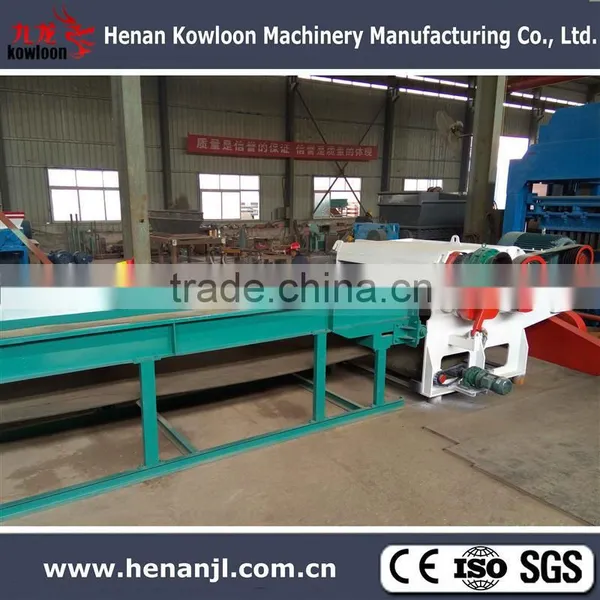

Introduction:

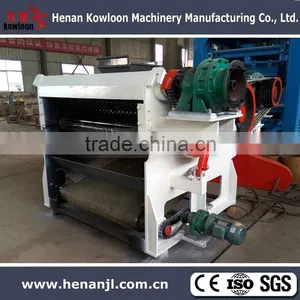

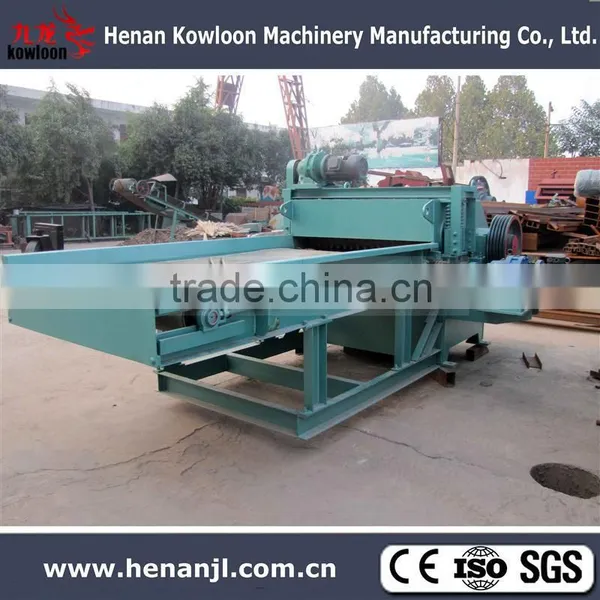

One of Kowloon star products, which Kowloon focus to develop and rearch on, specially designed for wood crushing plank/wood board/wood furring.
Structure:

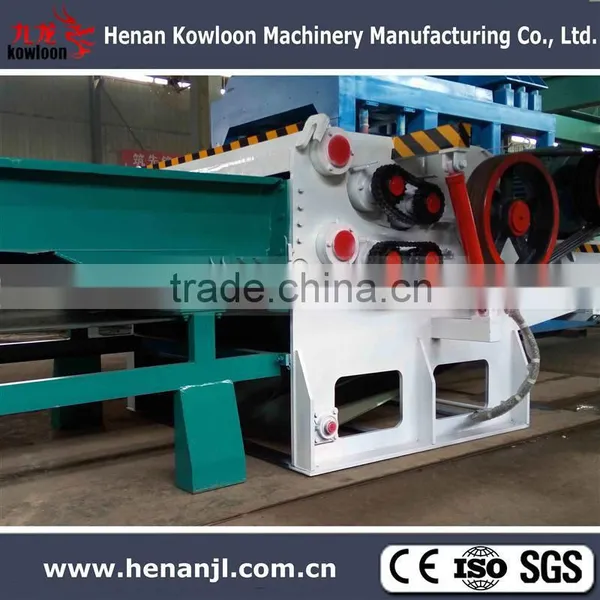

Feeding roller: control feeding speed, avoid materials slipping and provide outlet for feeding material.

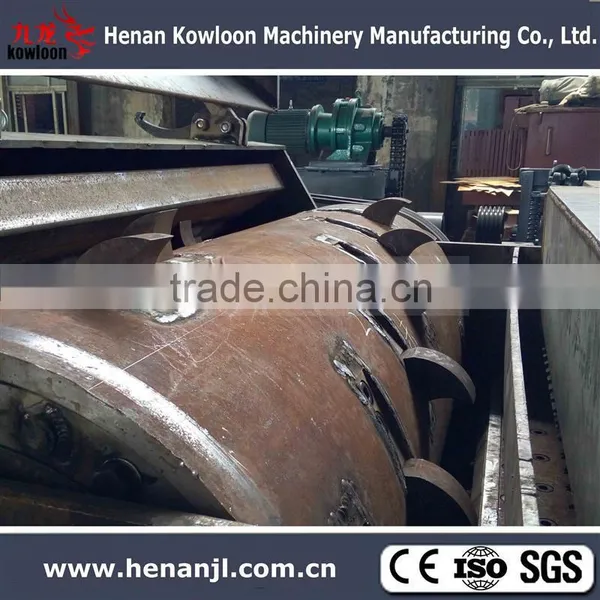

Cutter shaft: knives welded in a circular motion, to ensure the stabilityand power equality,.
Features:
1. Conveying, feeding, pressing, crushing at same time automaticlly, ensuring to get chips in uniform size.
2. Feeding roller adopts UCK bearings and spring clamping mechanism, applicatable to different thickness wood boards, feeding roller and crushing roller use differet power system, convience to control.
3. Compact design, safety and durable, with high efficiency, get good feedback, easpcially on big capacity and good at finish product.
Application:

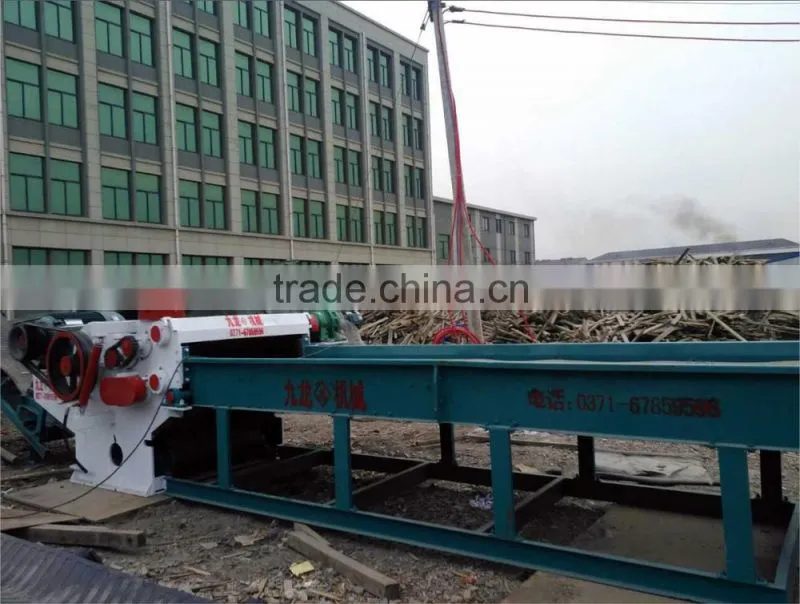

Wood processing factory, power station, wood board, wood furring and wood scraps recycle industry, plywood processing factory….etc. Apply to crushing wood boards or wood offcut materials, which width less than 1.3m, thickness 3-15mm
Model |
JLXP500P |
JLXP800P |
JLXP1000P |
JLXP1300P |
Width of feeding conveyor |
500mm |
800mm |
1000mm |
1300mm |
Feeding port size(WxH) |
500x100mm |
800x120mm |
1000x150mm |
1200x200mm |
Power of main motor |
22kw |
37kw |
45kw |
55kw |
Power of feeding motor |
4kw |
4kw |
4kw |
5.5kw |
Conveying speed |
0.45m/s |
0.65m/s |
0.75m/s |
0.80m/s |
Feeding roller rotary speed |
650rpm |
|||
Cutter shaft rotary speed |
680rpm |
|||
Working capacity |
1-3ton/h |
3-8ton/h |
5-10ton/h |
7-15ton/h |
Weight |
3000kg |
5500kg |
6000kg |
7000kg |
Kowloon was established since 1986, located in Zhengzhou city, which city of industrial hub of China, 29years experience on manufacturing wood processing machinery and construction machinery.
By 2015, Kowloon machines were approved by CE, BV, SGS and ISO certificates, exported to more than 30 countries and share market in worldwide, owns two oversea distributors and after-sale service center and now still growing continiouly.
Kowloon machines adopts advanced technologied parts, design and craft, united technology from USA,Germany, Japan and Australia, not only suits chinese market and woods, as well as different materials and countries. Kowloon support team has more than 20 professional engineers to provide clients professional solutions, facing multitudinous requirements, Kowloon team always pay patience and offer as more options as possible, to ensure every users have all security while running our machines, in this way, Kowloon keep growing and now owns ability of taking large wood processing project, wood sawdust, wood pellet and wood flour production line in China or abroad, under the support of internal business department, Kowloon is able to take “Turn-Key” projects in China or abroad.
