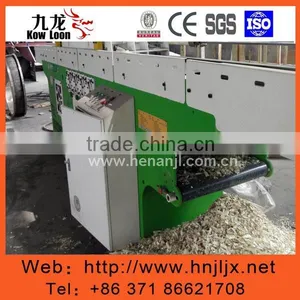

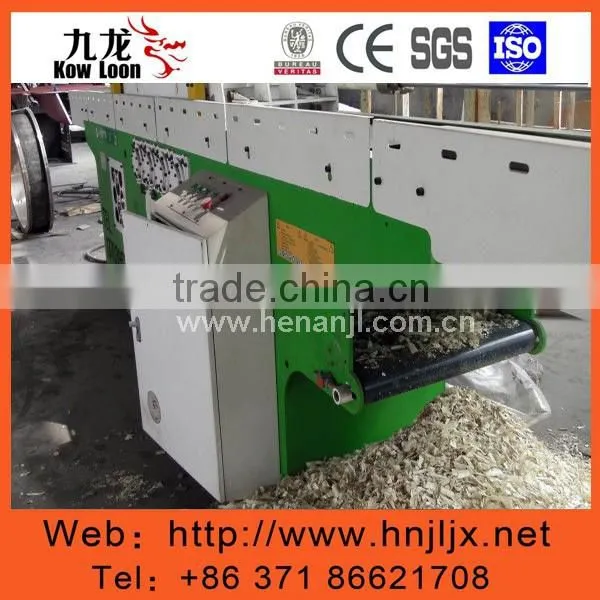

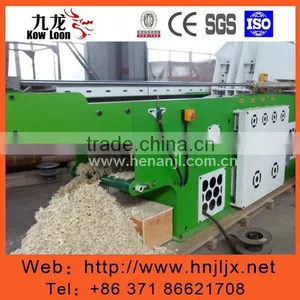

2015 chinese wood shaving machine price
|
|
Application
Shaving machine (wood shaving machine) can made wood, branch, crotch, leftover materials etc into shavings. As for the small size of the shavings, they are widely used in many fields. Shaving board in cabinet making factory, wood pulp in paper mill, protective filler for the fragile cargo in transportation, animal bedding in hennery. Etc
Advantage:
-preventative System for Wood Jamming
-adjust the size of shavings by yourself
-easy replace the blades
-conveyor feeding shavings out
-safety Protection
-powerful working system
|
|
|
|
Model |
YT-145 |
Input material length(cm) |
140 |
Input material width(cm) |
45 |
Cutting head(set) |
4 |
Blade(set) |
6 |
RPM(r/min) |
4500 |
Diameter of input(mm) |
140 |
Power(kw) |
18.5+18.5+4+1.5=42.5kw |
Shaving depth(mm) |
1-5 |
Hopper route(mm) |
2200 |
Feeding speed (hydraulic)(m/min) |
6-15 |
Dimensions(W×L×H)(cm) |
115×515×180 |
weight(kg) |
2850 |
YT-145 |
DOC(depth of cut) |
|||||
1mm |
2mm |
3mm |
4mm |
5mm |
||
|
Speed |
0.10 m/sc |
427kg |
654kg |
880kg |
1107kg |
1334kg |
0.15 m/sc |
540kg |
880kg |
1221kg |
1561kg |
1901kg |
|
0.20 m/sc |
654kg |
1107kg |
1561kg |
2014kg |
2468kg |
|
0.25 m/sc |
767kg |
1334kg |
1901kg |
2468kg |
3035kg |
|
Kowloon was established since 1986, located in Henan province, Zhengzhou city - industrial hub in China.
All Kowloon machines approved by CE, BV,SGS,ISO certificates, "chinese famous brand" and wins more than local 50% market in China, exported to more than 30 countries in history and market share in worldwide still growing continiouly.
Kowloon machines and parts adopts advanced technology and craft, which from USA,Germany, Japan and Australia, satisfied the requirements from different countries, there are more than 20 professional engineers to supporting on customized machines, make us have ability to take "turn-key" project in China or abroad.
Kowloon also never stop to improve all machines to satisfied markets, welcome to inquiry with your detailed requirements, all Kowloon people would offer best and all possibility!
