China cut vinyl cutter / A3 plotter / A4 vinyl cutter
Specification:
| Model | A3 A4 cutting plotter |
| Driver | Stepper motor |
| Maximum Paper Feed Width | 13" (330mm) |
| Maximum Cutting Width | 11.8" (300mm) |
| Maximum Cutting Speed | 0.4" - 11.0" (10-280mm) / s ( 7 levels selectable) |
| Maximum Cutting Length | 78.7" (2000mm) |
| Maximum Cutting Thickness |
Film media 0.1 mm or less in thickness.
Kent paper (inkjet or laser paper up to 300g / sq. m).
Drawing paper, postcards, scrapbooking paper.
Inkjet photo paper (Not all types of media can be cut)
|
| Knife Press | 60g to 500g (7 levels selectable) |
| Minimum Size of Cutting Letter | 0.2" (5mm) |
| Repeat Precision | 0.025mm / step 1016DPI or 0.0254mm / step 1000DPI |
| Type of Tool | Roland carbide blade |
| Plotting Instruction | DMPL, HPGL |
| Interface | USB2.0 |
| RAM | 256M |
| Real Cutter Softball | Yes |
| Optical Function | Yes |
| Emergency Stop | No |
| Power Supply |
Dedicated adapter: OUTPUT: DC 16V 2.5A
INPUT: AC100V ∼ 240V ; 47Hz ∼ 66Hz
|
| Working Environment |
5 to 30°C, 35 to 80% R.H. (Non-condensing) |
Features:
• yinghe A3 vinyl cutter is a small cutting and drawing plotter with a registration mark laser. It has an innovating design that saves more room.
• High moving precision grit - rolling guaranteed. Optical function - for easier and accurate operation.
The vinyl cutting plotter can draw, cut and kiss - cut shapes around of cardboard, vinyl and polyester sheets for several uses.
• You can change the cutting - knife to `ball` pen, then it works as plotting instrument.
• The cutting plotter is powered by a 16V DC adaptor.
Compatible with Windows VISTA, XP, 2003, 2000, 2007, Mac system.
• The vinyl cutter is equipped with the yinghe Master software, especially designed for this machine, which is practical and easy to use. Its main function is contour cutting; it means that you can cut printed graphics along the contour.
• A Windows driver is provided and enables output from `leading` drawing software (e.g. Corel DRAW 12, Adobe Illustrator CS).
• This vinyl cutting machine is compatible with many kinds of plotting software, You can use the software you like, just do some setting. Please look at PDF documents of how to set the software in Instruction tab.

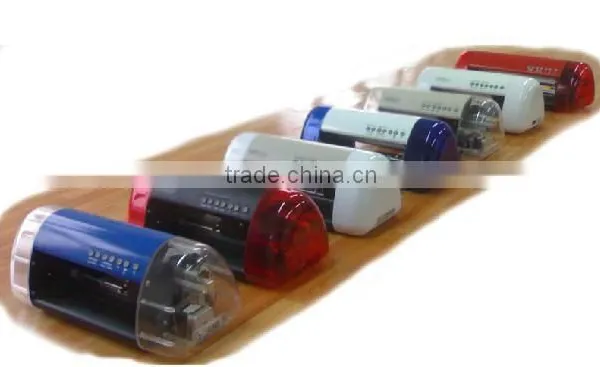

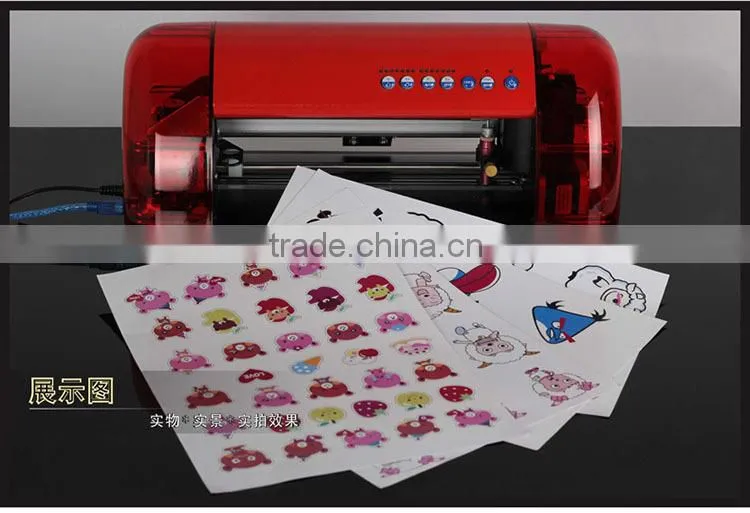

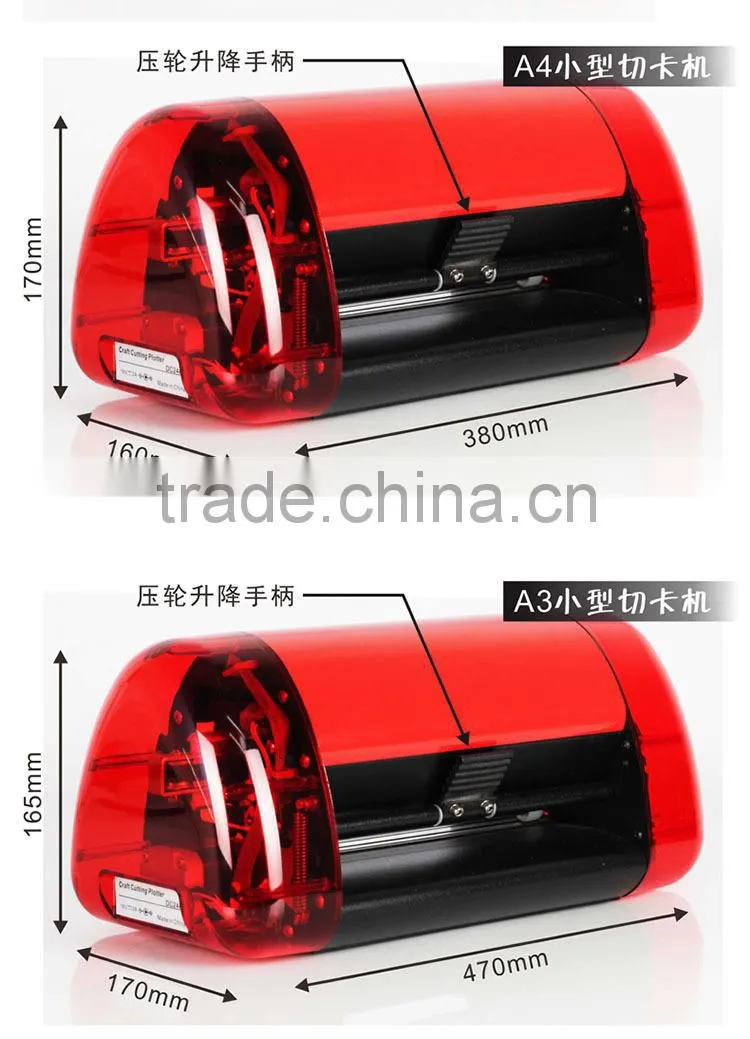

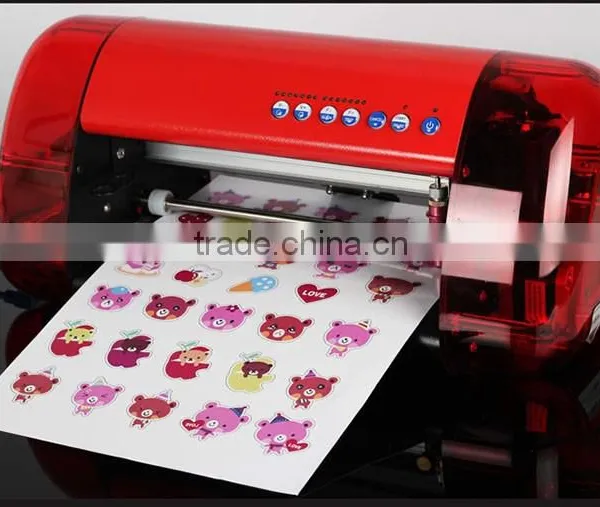

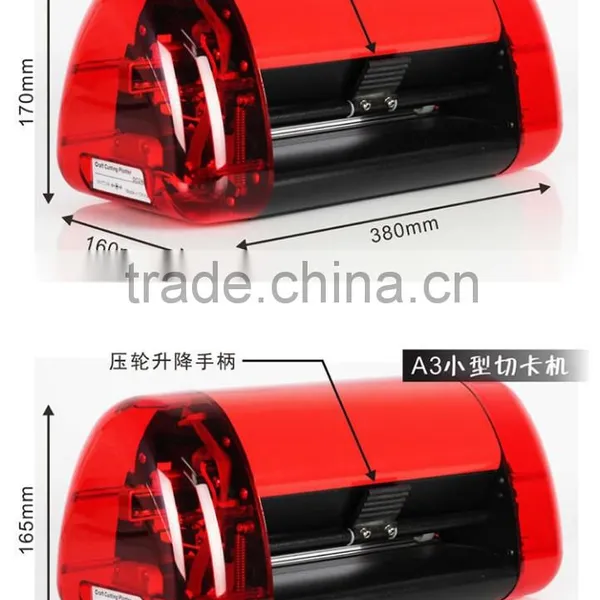

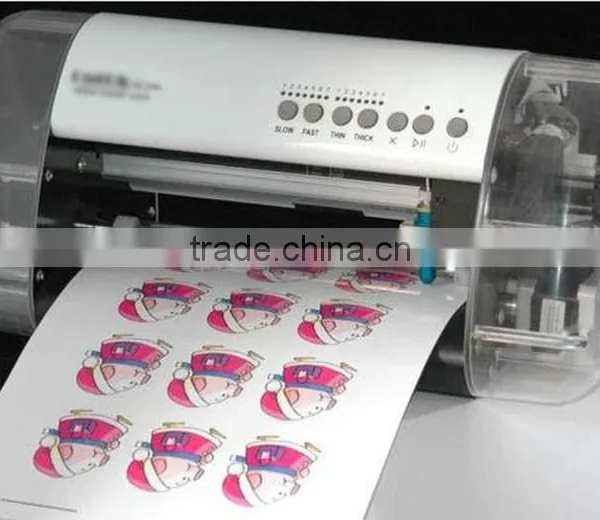

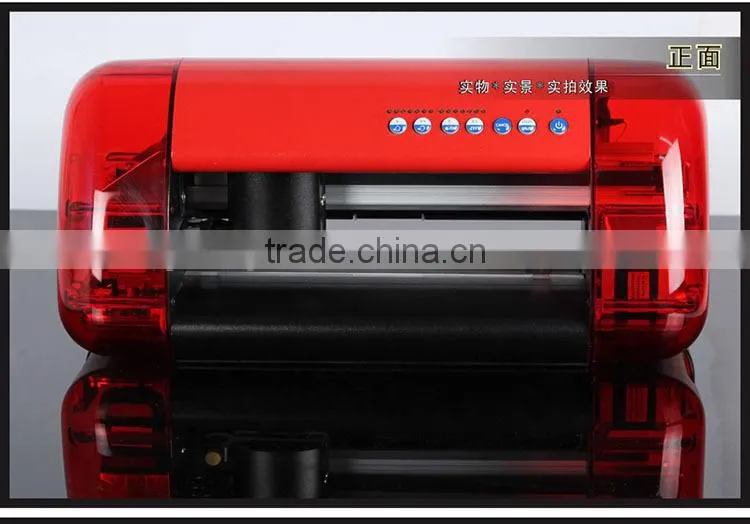

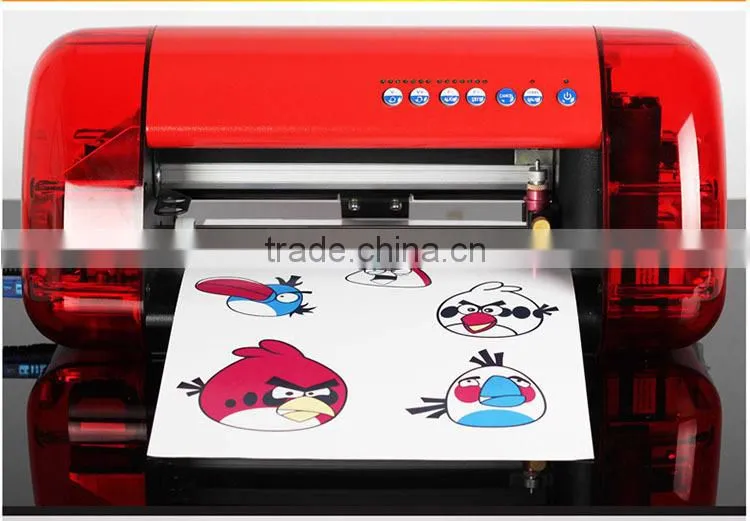

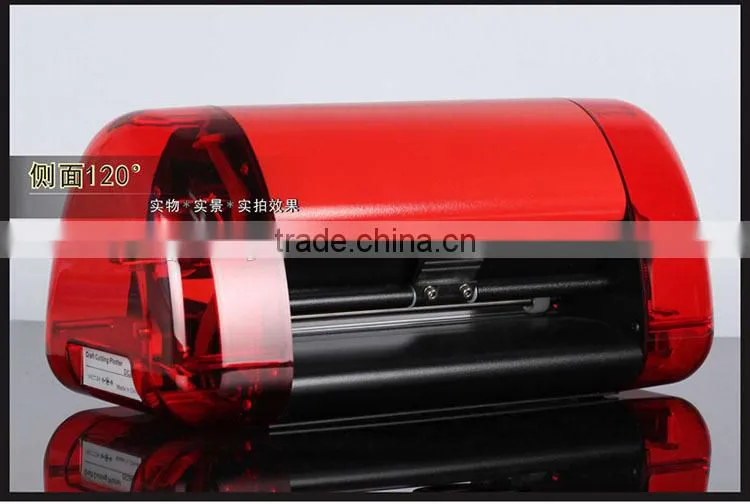

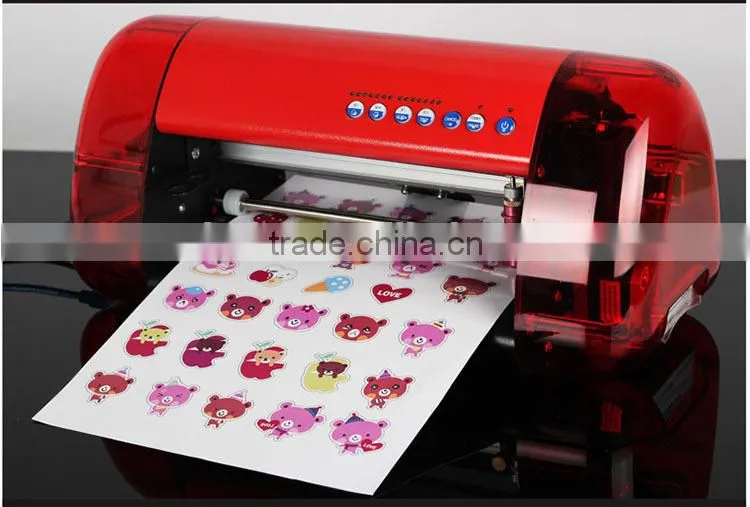

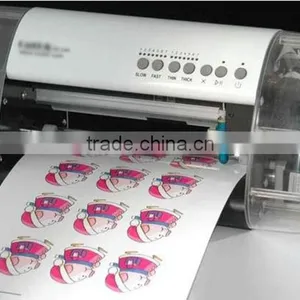

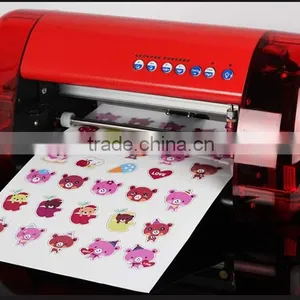

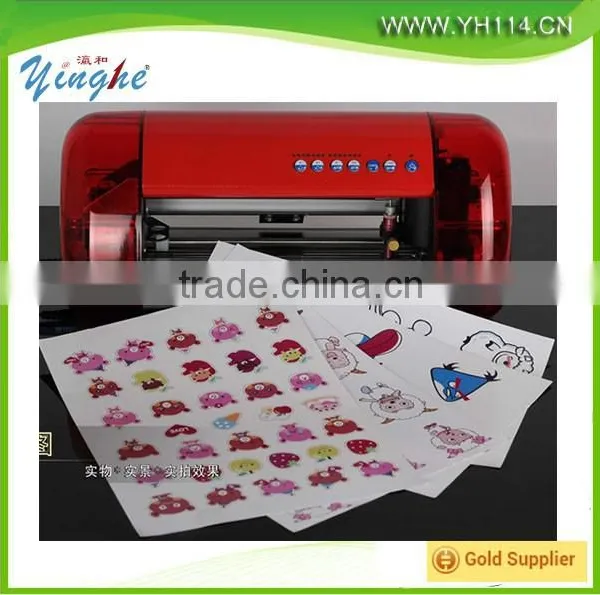

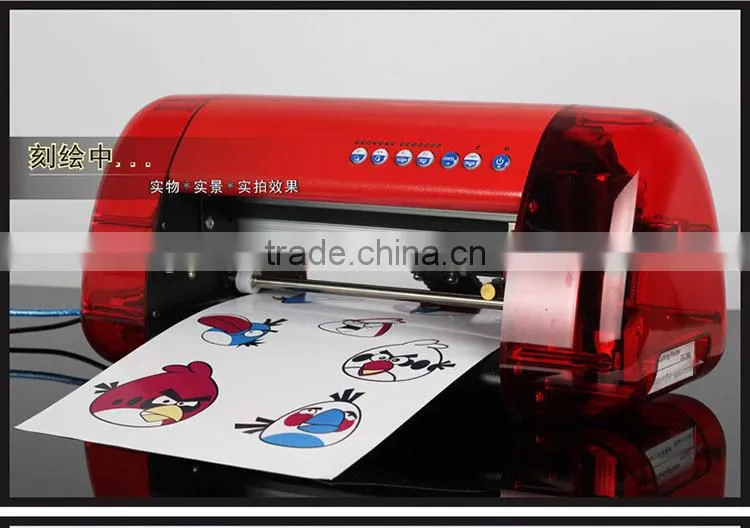

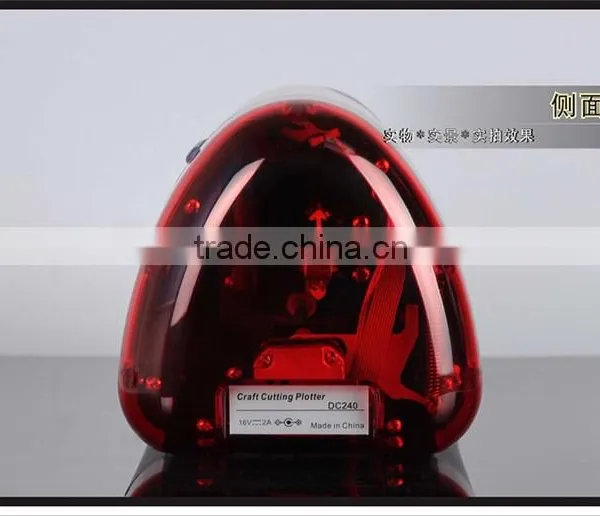

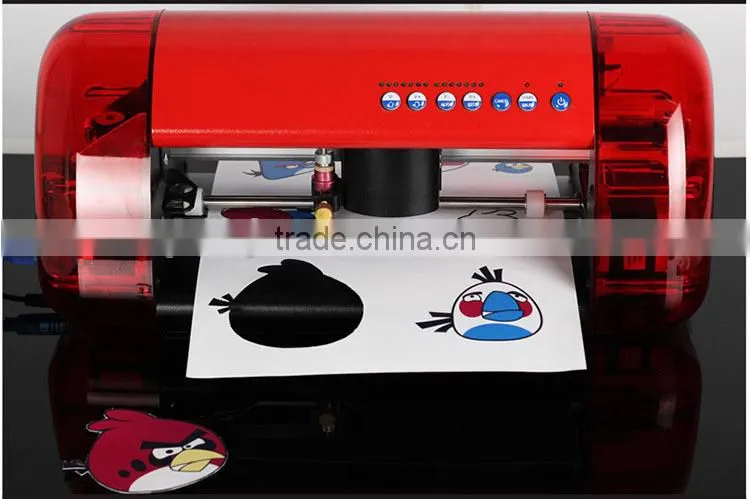

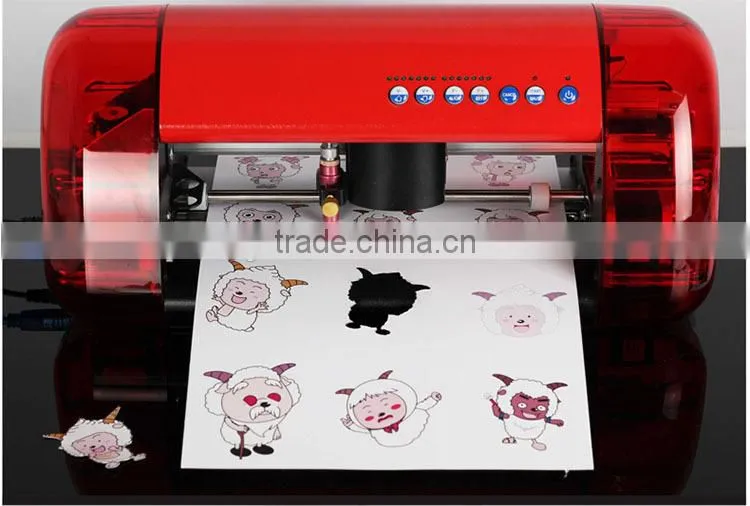

Machine picture show
application:
You can draw, cut, kiss-cut and decuple shapes around.
You can cut cartoon or other Vinyl and polyester sheets for your business and hobbies.
You can use it to make stickers, paper crafts, scrapbooks, jigsaw puzzles, DIY, 3D card modeling, cards, letters, gift boxes, etc. It is especially suitable for thick paper cutting.
The vinyl plotting machine is the best choice for store, office, school and home use.
Sample card board cutting and small batch production
Heat transfer, sticker, die-cutting industries
Paper molding, 3D molded paper products, paper industry
Decorative wall stickers, stickers, car sticker
Cutting personalized jigsaw samples
Paper cutting and so on

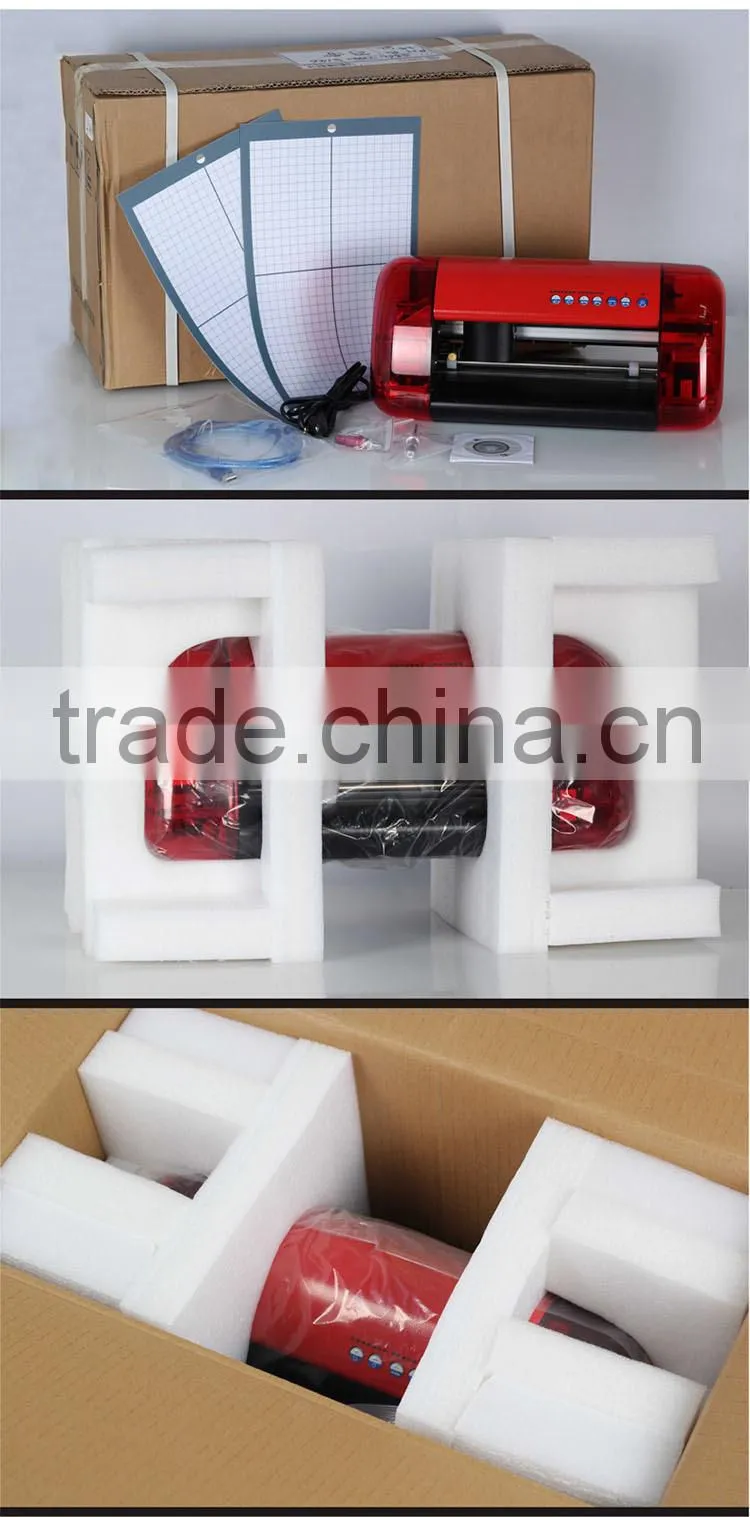

Packing show
About my company
Hi, dear, thank you for your kindly browsing .
If you have any interested in it , please contact me .
