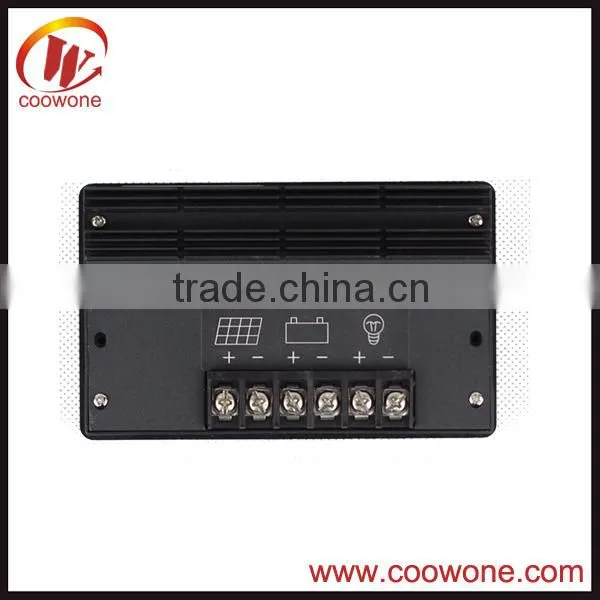

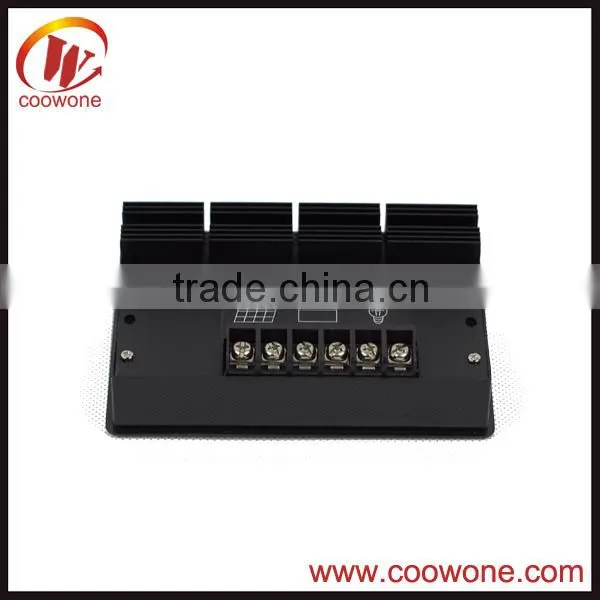

Green Energy Mini Pwm Lifepo4 Solar Charge Controller

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

OEM

Model Number:

TEH-CD20A

Hunan Coowone Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Normally Shenzhen Port support any ports in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name OEM

Model Number TEH-CD20A

Application Solar Working Station

Rated Voltage Other, 12V 24V Auto

Maximum Current 20A

Green energy mini pwm lifepo4 solar charge controller

lDual period design, can change for solar system sectionally or set configuration for power supply of solar system home system.

l12V/24V system voltage automatic recognition

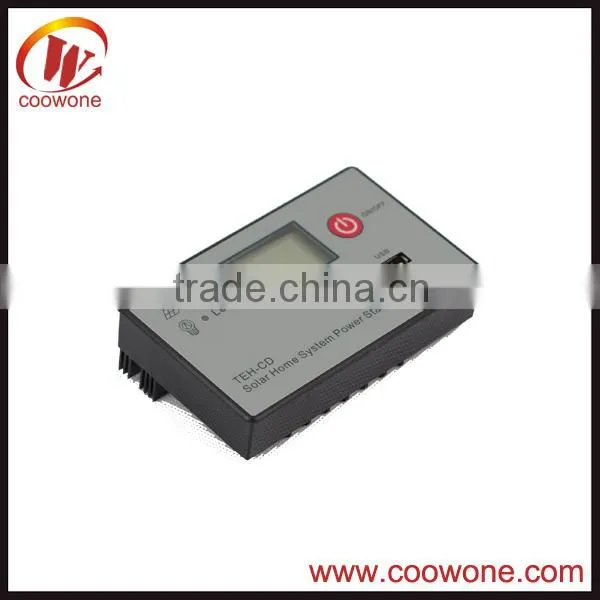

lLCD screen display for electrical data and button operation

lImproved three-stage charging algorithm, effectively prevent the battery which is imbalance and sulfuretted

lFive working modes for load, applied for street light and monitoring equipment

lIndustrial level design, can be used in a variety of harsh environment

lParam eter recovery function even after power cut

lWith over charge, over discharge, overload protection, short-circuit protection and reverse charging protection.

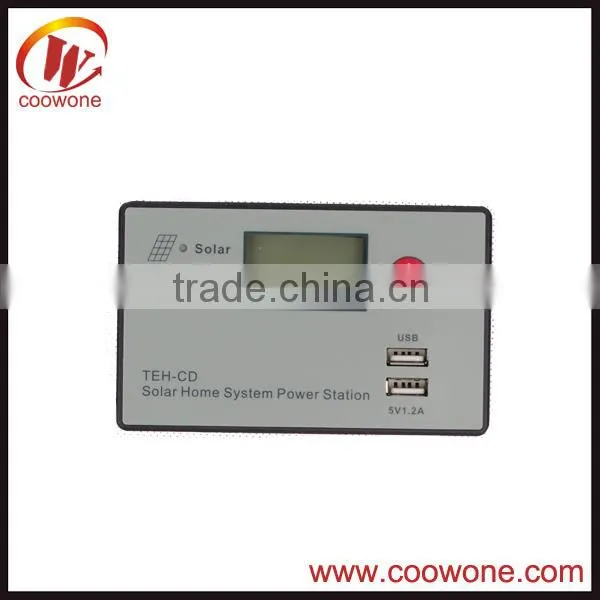

lWith 5V 1.2A USB charge port charging for mobile

lTVS lightning protection design

Model	TEH-CD10A	TEH-CD20A
System Volatage	12V/24V Auto
System Current	10A	20A
No-load loss	<6mA/12V; <7.5mA/24V
Chareg loop drop	<0.20V
Discharge loop drop	<0.15V
Equalization charging voltage	14.4-14.6V; *2/24V
Improve charging voltage	14.6; *2/24V
Floating charge voltage	13.6V; *2/24V ( To return until the charing voltage compensation )
Overcharging voltage	14.8V ( When the battery is full, enter the floating charing state ) *2/24V
Charging return voltage	13.2V; *2/24V
Over discharge return voltage	12.8; *2/24V
Undervoltage voltage	12.0V; *2/24V
Over discharge voltage	11.1V; *2/24V
Temperature compensation	-4.0mV/℃/2V
Control mode	Charge: Pulse width modulation
Sunlight control judgment time	10min
Working temperature	-35℃ to 65℃
Weight	10A; 160g; 20A; 196g
Sze ( LWH )	10A: 120mm75mm30mm; 20A:120mm75mm36.5mm
Protection circuit	Over charge, over discharge ( overload short circuit protection )
	All protection do not damage any parts
