Green Energy Pwm Juta Solar Charge Controller Cm3024z Supplier's Choice

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

OEM

Model Number:

TEH-ED10A

Hunan Coowone Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Normally Shenzhen Port support any ports in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name OEM

Model Number TEH-ED10A

Application Solar System Controller

Rated Voltage Other, 12V/24V Auto

Maximum Current 20A

Green energy pwm juta solar charge controller cm3024z

* Dual period design, can charge for solar system sectionally or set configuration for power supply of solar home system.

* 12V/24V system voltage automatic recognition.

* LED display for electrical data and button operation.

* Improved three-stage charging algorithm, effectively prevent the battery which is imbalance and sulfuretted.

* Five working modes for load, applied for street light and monitoring equipment.

* Parameter recovery function even after power out.

* With over charge, over discharge, overload protection, short-circuit protection and reverse charging protection.

* TVS lightning protection design.

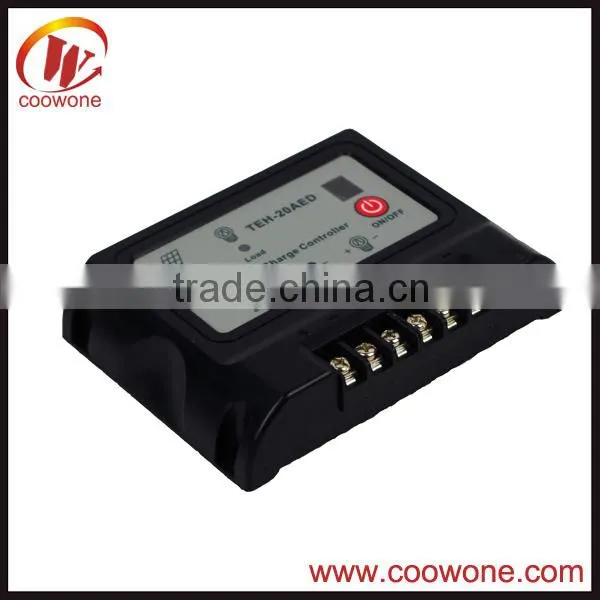

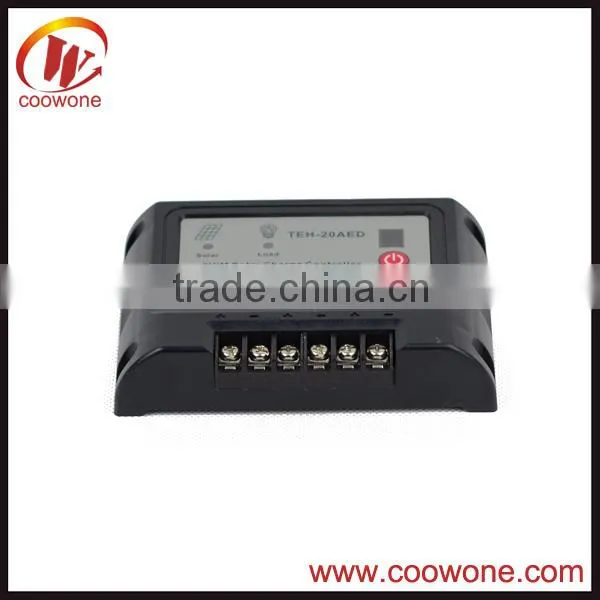

Model	TEH-ED10A	TEH-10AED	TEH-20AED
System volatage	12V/24V Auto
System current	10A	10A	20A
No-load loss	< 5mA/12V; < 7.5mA/24V
Charge loop drop	<0.20V
Discharge loop drop	<0.15V
Equalization charging voltage	14.4-14.6V; *2/24V
Improve charging voltage	14.6V; *2/24V
Floating charge voltage	13.6V; *2/24V ( To return until the charging voltage compensation )
Overcharge voltage	14.8V ( When the battery is full, enter the floating charging state ) *2/24V
Charge return voltage	13.2V; *2/24V
Overcharge return voltage	12.8V; *2/24V
Undervoltage	12.0V; *2/24V
Over discharge voltage	11.1V; *2/24V
Temperature compensation	-4.0mV/℃/2V
Control mode	Charge: pulse width modulation
Sunlight control judgment time	10min
Working temperature	-35℃ to 65℃
Weight	ED10A: 101.5g; 10A: 125g; 20A: 136g
Size ( LWH )	ED10A: 1106926mm; 10A-20A: 1259025mm
Protection circuit	Over charge, over discharge ( overload short circuit protection: 1.25 times )
	All protection do not damage any parts
