As the serious pollution of air, water caused by chemical material during the surface treatment, the eletroplating method is urgently need to be replaced by an advanced coating technology.
PVD magnetron sputtering coating is used for Nano thin films generation. Metal film, conductive film, non-conductive film etc. are all possible with sputtering technology, which represents a real alternative of electroplating due to its free hazard and 100% environment friendly.
PVD sputtering gives a combination of advantages like no other:
- It is totally economically efficient generating the thinnest and most uniform coating films;
- It is a dry coating process at low temperature in a vacuum chamber;
- It offers great versatility, can be used for the deposition of conductive or non-conductive materials on any
- type of substrates, like: metals, ceramics, plastic materials.
- Multi layers coating are available.

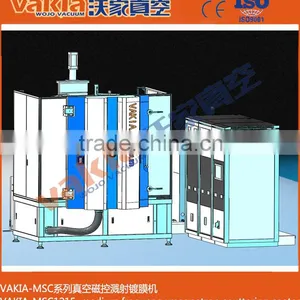

The MSC-1215 is designed for thin conductive film's coating on cell phones, communication tools, computers etc. eletronics components.
Sputtering Materials for conductive films: Cu (Copper), Ni (Nickel), Ag (silver) based on different coating recipes and coating processes requirement.

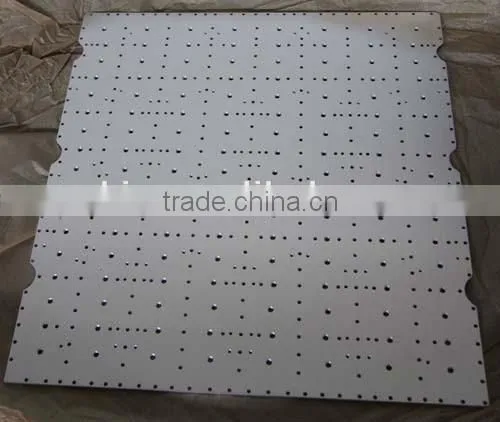

Substrate: metal, plastic, ceramic etc.
Vakia-MSC PVD Sputtering Coating Plant | |||||||
Model |
MSC-800 |
MSC-900 |
MSC-1008 |
MSC-1250 |
MSC-1400 |
MSC-1600 |
|
Chamber Inner size(mm) |
800x800 |
900x900 |
1000x800 |
1250x1250 |
1400x1600 |
1600x1600 |
|
Power Supplies |
Pulsed bias supply, DC power supply, MF power supply, RFmagnetron supply |
||||||
Chamber Type |
Vertical cylindrical model, double doors/single door |
||||||
Chamber Material |
SUS304 |
||||||
Ultimate Vacuum |
6.0×10-4Pa |
||||||
Vacuum Evacuation |
From 1 atmosphere to 8.0×10-3Pa≤10min |
||||||
Vacuum Pump System |
diffusion pump/ molecular pump+ roots pump + mechanical pump + holding pump |
||||||
Sputtering Sources |
Sputtering targets |
||||||
|
magnetron power supply |
10KW/unit |
20KW/unit |
20KW/unit |
30KW/unit |
40KW/unit |
50KW/unit |
|
Driving System |
planetary driving, central driving |
||||||
Cooling |
Cooling water, with cooling tower or cryopump, Polycold assisted facilities |
||||||
Operation System |
manual / automatic , touch screen , PLC or IPC system |
||||||
Please contact us for more information, Vakia Vacuum Coating is honored to be your your business partner.
