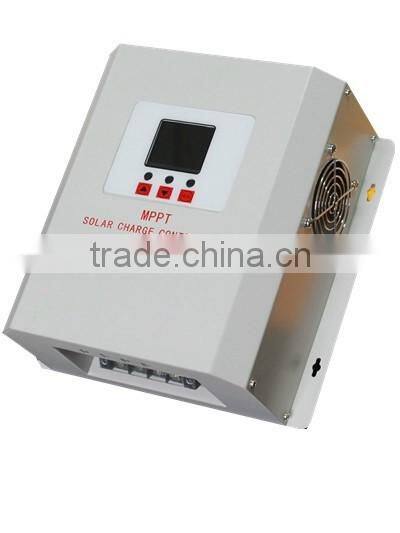

Advanced MPPT Solar Charge Controller

Advanced MPPT Solar Charge Controller thumbnail-1
Advanced MPPT Solar Charge Controller photo-1
US$ 61 - 123 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
1-1
Contact Supplier Request Quote Chat Now
Hunan Coowone Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number 1-1
Specification Normal
Application Home
Output Voltage (V) 110V 120V 220V 230V
Load Power (W) 5000w 10kw 15KW
Solar Power (W) 1KW-10KW
Work Time (h) 24 Hours

Advanced MPPT Solar Charge Controller

Product Description

 It is a new type advanced solar charge controller produced by our company, which using MPPT technology, the charging efficiency improved 30% more than PWM Charging mode, it saves more than 30% solar panel and saves much cost for users. This type Advanced Solar Charge Controller has perfect functions, it helps charging for various types of battery. Using three period charging mode,Intelligent heat dissipation control,99% conversion efficiency and other advantages, our mppt solar charge controller is widely used for solar off grid system(independent system).

 Product Feature

  •  MPPT charging mode, 99.5% conversion efficiency, 30% more than PWM charging efficiency.
  • Intelligent over temperature protection system,the fan speed is automatically adjusted with the internal temperature of the controller, which greatly reduce the loss and improve the efficiency.
  •  Using ultra low conduction loss Mosfet to achieve intelligent anti reverse connection design, which greatly reduce the loss of controller.
  •   Suitable for Various type of voltage, 12V/24V/36V/48V/96V, user can freely set controller output voltage according to the right condition.
  • Three period charging mode(constant current, constant voltage and float) effectively prolong the life of the battery.
  • Controller can achieve wide range of voltage input, meet the needs of uers.
  • Support multiple types of battery and lithium battery charging.
  • The controller has multiple protection functions, such as over current, anti reverse connection, over temperature, short circuit, over voltage, over load,etc.
  •  Simple and intuitive display interface, which can display the voltage, current, power generation, power, temperature and other key data and status.
  • Controller can be infinitely connected to meet the large current and high power applications.

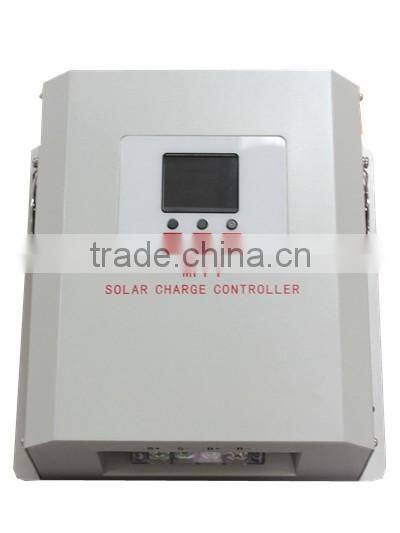

Advanced MPPT Solar Charge ControllerAdvanced MPPT Solar Charge Controller



Mode

M48-30

M48-40

M96-30

M96-40





















Charging Mode

MPPT

Charging Method

Three period charging mode(constant current, constant voltage and float)

Input Voltage Range

23V-130V

23V-170V

23V-170V

23V-170V

Output Voltage Range

8V-60V

8V-60V

8V-120V

8V-120V

Battery bank voltage

DC12V/24V/36V/48V/96V,( freely setting according to right condition )

Controller output voltage Setting

Please check the system voltage for reference,to finalise the output voltage setting.

Output Current Range

0-30A

0-40A

0-30A

0-40A

Soft-start time

≤5S

Dynamic response recovery time

500us

overall efficiency

96%—99%

PV module utilization

≥99%

Battery Type

Battery, lithium battery, etc.

Electrical Parameters

Isolation type

Non-Isolated

Working temperature range

-20℃~ +40℃

Cooling Method

Air cooling force, fan speed is automatically adjusted by the internal temperature

Humidity range

0%~85% (NC)

Work Altitude

≤4000m

Interface and appearance

Terminals

TC series fence type wiring

Color

Yellow

Display

LCD

Language

English

Data communication

GPRS/RS232/R485(Optional)

Protection Level

IP20 [Indoor]

Noise [dB]

<30

Mounting

Wall mounting type

Dimensions (W*D*H) [mm]

250*250*110

Net Weight

3kg



















































































  Notice



  • Controller will work when input voltage is bigger than battery bank voltage, or it won’t work.

  • Controller will stop working when input voltage is bigger than 130V(M48-30),170V(M48-40,M96), it needs to be powered off, the input voltage is adjusted to less than 130V(M48-30),170V(M48-40, M96), restart and then controller can work again.

  • If the load current exceeds the upper limit of the controller, several controllers can be connected in parallel,and connect the input ends to battery at the same time,but the input ends of each controller must be independent access, and meet the range of single controller operating parameters, or controller will be burned to damage.

Battery type

Battery Cell Voltage(V)

Battery pack system voltage (V)

Rated Output Voltage

(V)

lead-acid battery

2/Cell

12/(6 Cell )

14.4

24

28.8

36

43.2

48

57.6

96

115.2

Gel Battery

2/Cell

12/(6 Cell )

14.4

24

28.8

36

43.2

48

57.6

96

115.2

LFP Battery

3.2/PCS

12/(4  PCS )

14.4

24

28.8

36

43.2

48

57.6

96

115.2

Lithium battery

3.7/PCS

12/(3  PCS )

12.5

24

25

36

37.5

48

50

96

100

Lithium titanate battery

2.4/PCS

12/(5  PCS )

13.75

24

27.5

36

41.25

48

55

96

110



Company Information

Hunan Coowone Trading Co., Ltd. was founded in 2014, businessed as a professional sales of back-up power and storage battery. Product quality, reasonable prices, and perfect after-sale service are always the reasons our customers praised us for. With the help of owned factory’s production and excellent sales teams, Coowone products have been sold over 20 countries and regions in the world.



Our products are widely used in different fields, such as banking, securities, telecommunications, transportation, taxation, health care, education, military, government agencies, scientific research machinery and mining production enterprise.

Product quality and reasonable price are always the base of our development. We have industry certificates such as ISO9001:2000, and a completed quality control system. Our team continuously improve the service, delivery, and other works to build a win-win cooperation with our customers.



If you are interested in any of our products, please feel free to contact us for further information. We look forward to becoming your business partner in the near future.

Advanced MPPT Solar Charge Controller

Advanced MPPT Solar Charge Controller

Our Service

1.Warranty: 2 years.

2. Factory price, pricing could be lower while the quantity rising.

3. OEM cooperation with your brand, Could have your logo, or change the capacity as your   design.

4. Strict QA, QC process, guarantee the quality and delivery time.

5. One of the largest storage battery, uninterruptable power supply and inverter manufactures in China.



Packaging & Shipping

Advanced MPPT Solar Charge ControllerAdvanced MPPT Solar Charge Controller

FAQ

Q1: How do you control the production quality?

  A :1.All products will have 5 layer's of QC before delivery.

       2.Checking the raw material after they arrived in our factory.

       3.Checking all the details while the production line operated.

       4.Testing the products after they’re finished from productions.

       5.Checking all the products and cartons after they’re packed.

       6.Some products will have different QC processes but strict also.



Q2 : Do you accept OEM/ODM?

   A : ODM&OEM are warmly welcomed !!!



Q4: Can the price be cheaper?
   A: Of course, you will be offered a good discount for big amount.



Q5: What is your terms of payment?

   A:1.Sample: 100% of the sample cost before sampling.

       2.Mass Production: 30% deposit in advance, 70% balance when finished.

       3. Payment terms: usually T/T, also support West Union, PayPal, etc



Q6: What’s the delivery time?

  A: 1.Sample ready in 7-15 days, depends on the requests.

       2. Mass production ready in 15-30 days, depends on the qty & factory’s producing.

Related Products
Advanced MPPT Solar Charge Controller Advanced MPPT Solar Charge Controller Advanced MPPT Solar Charge Controller Advanced MPPT Solar Charge Controller
  1000-12000w inverter     General Type Inverter                   UPS         Lead-acid Batteries



Contacts us
For more information and products, please don't hesitate to contact us. Thanks!

Hunan Coowone Trading Co., Ltd.

Contact Name: Mokie Li

Whatspp/Wechat: 0086 18908436237

Skype/Email: sales10(at)

Ali TM: cn1514631776vrgh

Website: https://coowone.en.china.cn

Add: R3116, IDO Building, No.49, Kaiyuan Road, Xingsha Town, Changsha City, Hunan Province.
