Color Automatic Tile Steel Roll Forming Machine-glazed Tile Roll Forming Machine-
US$ 6,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao. shanghai.tianji .ningbo.guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Made Automatic Donut Machine for SaleUS$ 1 - 1,000MOQ: 1 Set -
Economical and Large Capacity Mechanical Dryers for RiceUS$ 1 - 1,000MOQ: 1 Set
-
New Type and Professional Souvlaki Skewer MachineUS$ 1 - 1,000MOQ: 1 Set
-
Coffee Husk Charcoal Stick Making Machine/straw Charcoal Making MachineUS$ 1 - 1,000MOQ: 1 Set
-
Stable Performance and Best Quality Tealight Candle Making MachineUS$ 1 - 5,400MOQ: 1 Set
Condition
New
Type
Tile Forming Machine
Tile Type
Colored Steel
Use
Roof
Production Capacity
8-10m/min
Place of Origin
Henan, China
Brand Name
taizy
Model Number
TZ-840
Power(W)
3kw
Voltage
380V
Dimension(L*W*H)
5800*1300*950
Weight
5T
Certification
ISOO9001
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas

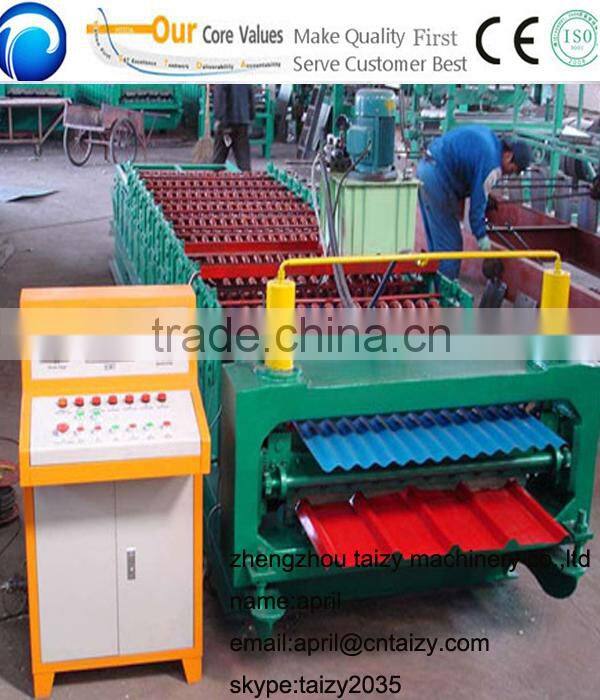

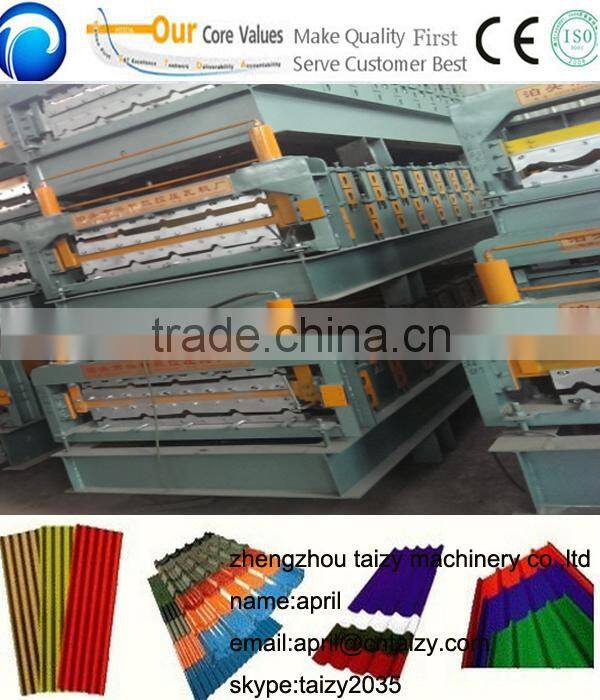

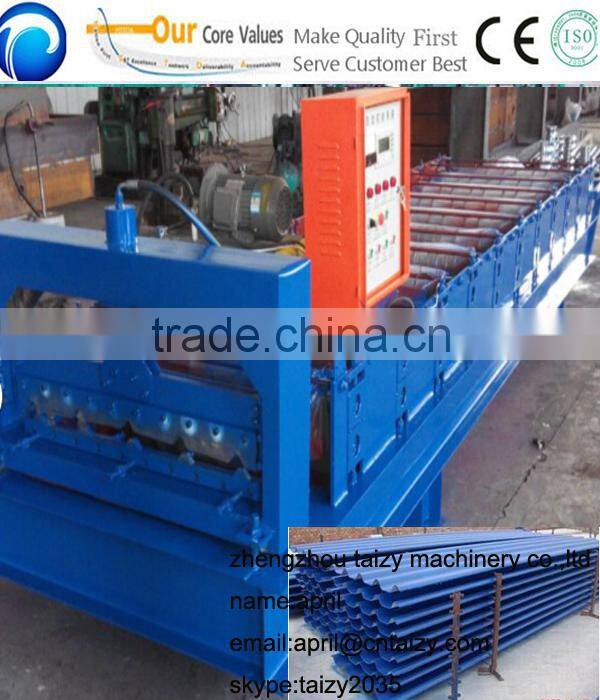

Color Automatic Tile Steel Roll Forming Machine

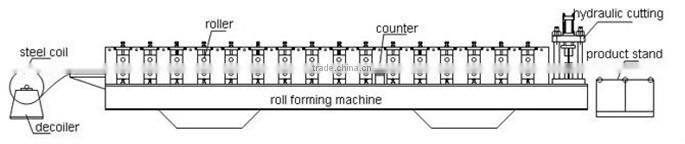

The chart of process flow: Decoiling→active feeding→roll forming → measuring length → cutting to length → product to stand.
Equipment parts:roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,product supporter .
2.Schematic diagram
nical details.
Product name |
steel tile machine |
|||
NO. |
Items |
Parameters |
Remark |
|
1 |
Suitable
Material |
Type |
GI/PPGI/AL |
|
|
|
Width |
1000/1200/1220/1250mm |
Custom |
|
|
Thickness |
0.40-0.70mm |
|
2 |
Product Specifications |
Length |
Any length |
|
|
|
Length Tolerance |
±2mm/6m |
|
3 |
Working Speed |
25 m/min (10 piece per min as 8 feet per piece) |
Standard machine |
|
4 |
Control System |
Mitsubishi/Siemens PLC& transducer |
Custom |
|
5 |
Total Power |
About 12KW |
|
|
6 |
Total Weight |
About 10.5T |
Up to final design |
|
