Paper Napkin Machine Product Type Napkin Paper Folder Machine 0086-13503893160
- Flow Diagram
- Introduction

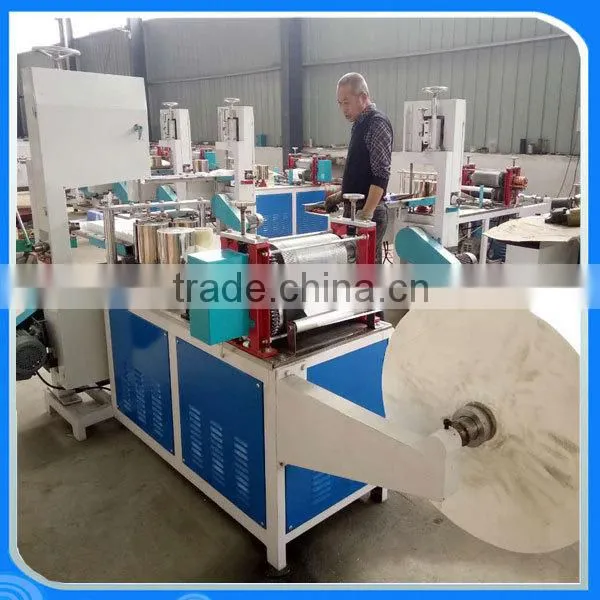

1. This kind of paper folder machine is mainly used for embossing, folding, electronic counting, and cutting rolled paper which is cut well into square or rectangular napkin paper.
2. If you need the paper folder machine with embossing function, it is customizable as your detailed requests.
- Main Technical Data
| Name of machine | paper folder machine | |||||
| Folding size | 110x110-230x230mm±2(adjustable) | |||||
| Unfolding size | 220x220-460x460mm | |||||
| Diameter of folder | 60-120mm(customizable) | |||||
| Size of raw material | 220-460mm | |||||
| Capacity | 600-700m/min | |||||
| Counting system | Electronic counting | |||||
| Transmission mode | Electromagnetic speed control, frequency control(optional) | |||||
| Main power | 1.5kw | |||||
| Heating rod | 1kw/220V | |||||
| Power of band saw | 1.1KW | |||||
| Embossment | Steel to wool, steel to rubber, steel to fleece roller(customizable) | |||||
| Overall dimension | According to specified model | |||||
| Weight | 800-1500kg | |||||
- Function
1. The paper is divided into whole column. By automatic counting, it is very convenient to be packaged.
2. The folding device is of very precise positioning, ensuring uniform size.
3. Different specifications of machines can be customizable as our clients’ detailed requirements.
4. Steel to wool roller embossing device, making clear and beautiful patterns. Steel to steel embossing device can be customizable as your requests. Patterns such as letters or logos are also customizable.
- Embossing Unit
- Package
- After sale service
We will provide operation video and manual for assistant. If necessary, our engineer will go to your factory for guiding.
- Guarantee
The main body(not included the motor and wear parts) guarantee is one year. During the guarantee period, if the main body defective as the bad quality without any workers wrong operation, Xuchang Hengyuan Paper Machinery Co., Ltd. should replace the parts for free or prepare the goods for free. Beyond period, only manufacturing cost will be charged for spare parts.
- What is the capacity of our napkin paper folder?
For common machine, it is 500-600 pieces/min, that is, 400-500kg per day(8 working hours). For high-speed machine, it is 700-800 pieces/min, that is, 500-600kg per day(8 working hours)
- How can customers obtain the raw material?
The raw materials are mainly made from wood pulp, cane syrup, deinked waste paper.
You can purchase the raw material in your area. If you like, we can purchase raw material from our cooperated suppliers in China at low cost for you.
- What is wear parts of the folder?
Generally, the saw blade and embossing roller of the machine are wear parts.
- What is the after sale service?
Manual and video are available for guiding, if necessary, we will send the engineer for installation, start up and training on the operations in the buyer’s plant.
Any more further information, please feel free to contact me.
