Max. 2500mm Length Parallel Paper Tube Winding Machine
- 300 Unit / Units per Month
- Qingdao Shanghai
- T/T Credit Card
- Auto Spiral Paper Tube Paper Core Product Making Machinery
- Parallel Paper Tube Machine , Core Making Machine
- Computerized Spiral Paper Core Making Machine
- Full Automatic Digital Control Computerized Spiral Paper Tube Making Machine
- Full Automatic Computerized Spiral Paper Tube Machine , Paper Core Making Machine
- Full Automatic Digital Control Computerized Cardboard Roll Machine , Spiral Paper Tube Machinery
Product Details
Condition: | New | Product Type: | Paper Core Machine | Processing Type: | Other, paper tube winding machine |
Place of Origin: | Henan, China | Brand Name: | HengYuan | Model Number: | HY-200 |
Voltage: | 380V, 3 phases | Power(W): | 7.5KW | Dimension(L*W*H): | 2800mm*1800mm*1600mm |
Weight: | 1200kg | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
paper tube winding machine is in full 20FT container, or wooden case, or as clients' special requirements.
Product Description
Max. 2500mm Length Parallel Paper Tube Winding Machine 0086-13103882368

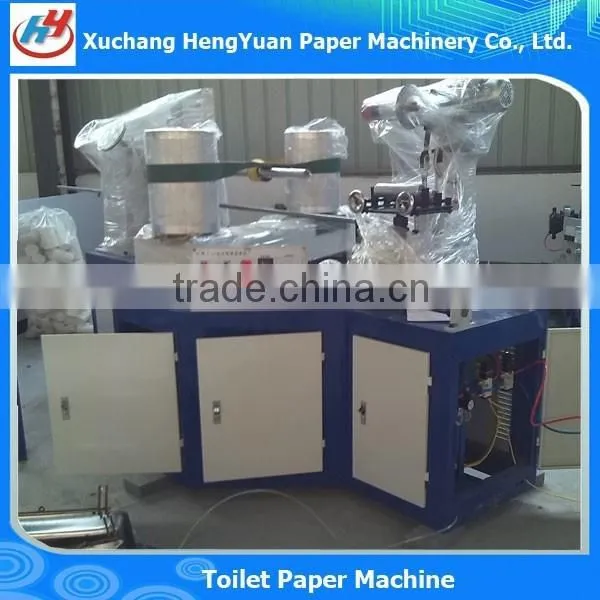

- Introduction of Paper Tube Winding Machine
1. This kind of paper core machine is mainly used for making paper tube. The tubes made can be used as core of toilet paper roll.
2. We have different model of paper core machine for choice, can make paper tube with different diameter and thickness. For example, HY-200 paper core machine makes tube with diameter 20-200mm, thickness 1-10mm. and HY-300 paper core machine can make tube with diameter 20-250mm, thickness 1-15mm, etc.
3. In order to supporting the paper core machine, we will offer free tube automatic cutting machine to our clients. The finished tube can be cut and discharged automatically. Infrared and automatic transmission make cutting length more accurate.
4. The paper core machine has PLC controller, more than 80 kinds of function can be chosen. With noise less than 65 decibel.
- Main Technical Data of Paper Tube Winding Machine
Name | paper core tube machine | |||||
Model | HY-200 | |||||
Tube diameter | 20-200mm | |||||
Number of ply | 3-16 plys | |||||
Capacity | 3-16m/min | |||||
Thickness of tube | 1-10mm | |||||
Head | double heads, single belt | |||||
Controller | multi-point operation panel | |||||
guling mode | single or double sides | |||||
Tube fixed mode | clamping+flange | |||||
Cutting mode | single circular knife synchronous cutting automatically | |||||
Fixed-length mode | infrared fixed length accurately | |||||
Ratio | WPO 1:30 | |||||
Controller | computerized frequency control+PLC | |||||
Mainl power | 7.5KW | |||||
Auxiliary power | 0.75KW | |||||
Overall dimension | 2800mm*1800mm*1600mm | |||||
Weight | 1200kg |
- Supporting Equipment of Paper Tube Winding Machine
1. After tube being finished, it is cut and discharged by the digital control cutting machine automatically.
2. Size of cutting machine: 2700mm*2300mm*1300mm
3. Weight of cutting machine: 600kg
- Finished Products of Paper Tube Winding Machine
Our factory covers an area of about 4,000 square meters, we own our dedicated workshop, warehouse for producing and storing. There are 4-5 engineers, 2-4 quality control personnels, and several managers.
We have customers from worldwide, such as Egypt, Nigeria, England, Uzbekistan, Afghanistan, Russia, Kazakhstan, Viet Nam, etc.
- After service
We will provide operation video and manual for assistant. If necessary, our engineer will go to your factory for guiding.
- Guarantee
The main body(not included the motor and wear parts) guarantee is one year. During the guarantee period, if the main body defective as the bad quality without any workers wrong operation, Xuchang Hengyuan Paper Machinery Co., Ltd. should replace the parts for free or prepare the goods for free. Beyond period, only manufacturing cost will be charged for spare parts.
- What is the net profit of toilet paper and napkin paper?
For toilet paper, it is about 20%. That is, the profit is about USD100-USD140 for per ton.
For napkin tissue, it is about 30%. That is, the profit is about USD350 for each ton.
- How can customers obtain the raw material?
The raw materials are mainly made from wood pulp, cane syrup, deinked waste paper.
You can purchase the raw material in your area. If you like, we can purchase raw material from our cooperated suppliers in China at low cost for you.
- How many bags can we get from 1 ton of raw pulp material?
If 100g for one roll of paper, 10 rolls in a bag, we can get about 900 bags from 1 ton of raw material.
- For our HY-1880 toilet paper rewinding machine, what is the plant area?
The overall dimension of our machine is 6m(length)*3m(width)*1.8m(height), to take the working table into account, the plant area is about 50m2. The height of door is 2m. (The warehouse is not included. )
- What is the investment for processing toilet paper?
About USD17,000. It includes the equipments(rewinding machine+slitting machine+sealing machine), workshop, raw material, etc.
Any more further information, please feel free to contact me.
Company Profile
Xuchang HengYuan Paper Machinery Co., Ltd. Is a professional manufacturer at producing paper machinery. It has been grown and developed for more than twenty years since it is established in 1990. Our main products are rewinding machine, paper napkin machine, slitter, handkerchief paper machine, tissue paper machine, removable tissue machine, etc.
The company always insist quality for survival, technology innovation for development, relying on excellent quality and good after-sale service, our products have been exported to home and abroad. The toilet paper rewinding machine and paper napkin machine make we are unique in the counterparts.
We have equipments with reliable quality, excellent performance, high efficiency and advanced function. Professional engineers are available for equipments installation, debugging and after-sale service. In order to satisfy your various needs. Our staff will continue efforts and improve the existing products as always. Quality first, integrity supremacy are always our concept. We will dedicated to service our general customer.
