Specifications
box type facial tisssue machine1. raw paper width: 420mm
2. capacity: 1000-1200 pcs/min
3. folding size: 90*100~210mm
New Condition Box Type Facial Tissue Machine 0086-13103882368

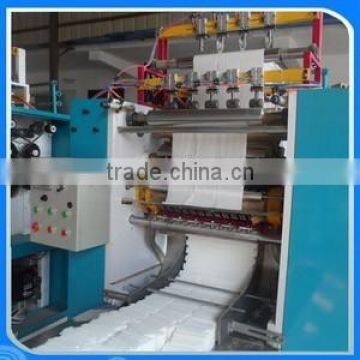

- Introduction of Box Type Facial Tisssue Machine
This kind of tissue folder machine is to mutually fold the cut paper to the face-cloth paper, which is put into the box becoming the economic drawing style box face-cloth paper. The machine adopts vacuum suction, and automatic marking functions. It features of high speed, nice folding and easy operation.
- Main Technical Data of Box Type Facial Tisssue Machine
| Name of machine | box type facial tisssue machine | |||||
| Model of tissue folder | HY-3L-200 | HY-3L-190 | HY-3L-180 | |||
| Unfolding size | 200×100~210mm | 190×100~210mm | 180×100~210mm | |||
| Folding size | 100×100~210mm | 95×100~210mm | 90×100~210mm | |||
| Max. width of raw material | 420mm | |||||
| Max. Dia. of raw material | 1100mm(can be specified) | |||||
| ID of raw material core | 76.2mm | |||||
| Capacity | 1000-1200pcs/min | |||||
| Edge rolled unit | Independent pneumatic type(customizable) | |||||
| Transmission | Synchronous belt, chain | |||||
| Vacuum system | 7.5kw fan | |||||
| Rated voltage | 380V | |||||
| Total power | 11KW | |||||
| Weight | 3500kg | |||||
| Overall dimension | 4800mm×1200mm×2000mm | |||||
- Function of Box Type Facial Tisssue Machine
1.The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and then interfolded into rectangular facial tissue sheets.
2.The machine adopts vacuum suction, and automatic marking functions. It features of high speed, nice folding and easy operation.
3.The slit width can be adjusted as clients’ different requests, very convenient for selling.
4.It is equipped with tension adjusting device, ensuring the precision of interfolded products.
- Detailed Pictures
- Package of Box Type Facial Tisssue Machine
- After service of Box Type Facial Tisssue Machine
We will provide operation video and manual for assistant. If necessary, our engineer will go to your factory for guiding.
- Guarantee of Box Type Facial Tisssue Machine
The main body(not included the motor and wear parts) guarantee is one year. During the guarantee period, if the main body defective as the bad quality without any workers wrong operation, Xuchang Hengyuan Paper Machinery Co., Ltd. should replace the parts for free or prepare the goods for free. Beyond period, only manufacturing cost will be charged for spare parts.
- What is the capacity of our napkin paper folder?
For common machine, it is 500-600 pieces/min, that is, 400-500kg per day(8 working hours). For high-speed machine, it is 700-800 pieces/min, that is, 500-600kg per day(8 working hours)
- How can customers obtain the raw material?
The raw materials are mainly made from wood pulp, cane syrup, deinked waste paper.
You can purchase the raw material in your area. If you like, we can purchase raw material from our cooperated suppliers in China at low cost for you.
- What is wear parts of the folder?
Generally, the saw blade and embossing roller of the machine are wear parts.
- What is the after sale service?
Manual and video are available for guiding, if necessary, we will send the engineer for installation, start up and training on the operations in the buyer’s plant.
Any more further information, please feel free to contact me.
