capacity 100m3/h to 3000m3/h Biomass Gasifier/gasification system
Contact:Cathy
Mobile/Whatsapp/Wechat:+86 13673629307
Tel:0086-371-86660712
Fax:0086-371-86660713
Skype:taizy2031
QQ:2419066501
Introduction:
Due to the rapid increase in the need of energy source, more people start to become interested
in Renewable & Eco-friendly Energy especially for agricultural countries.

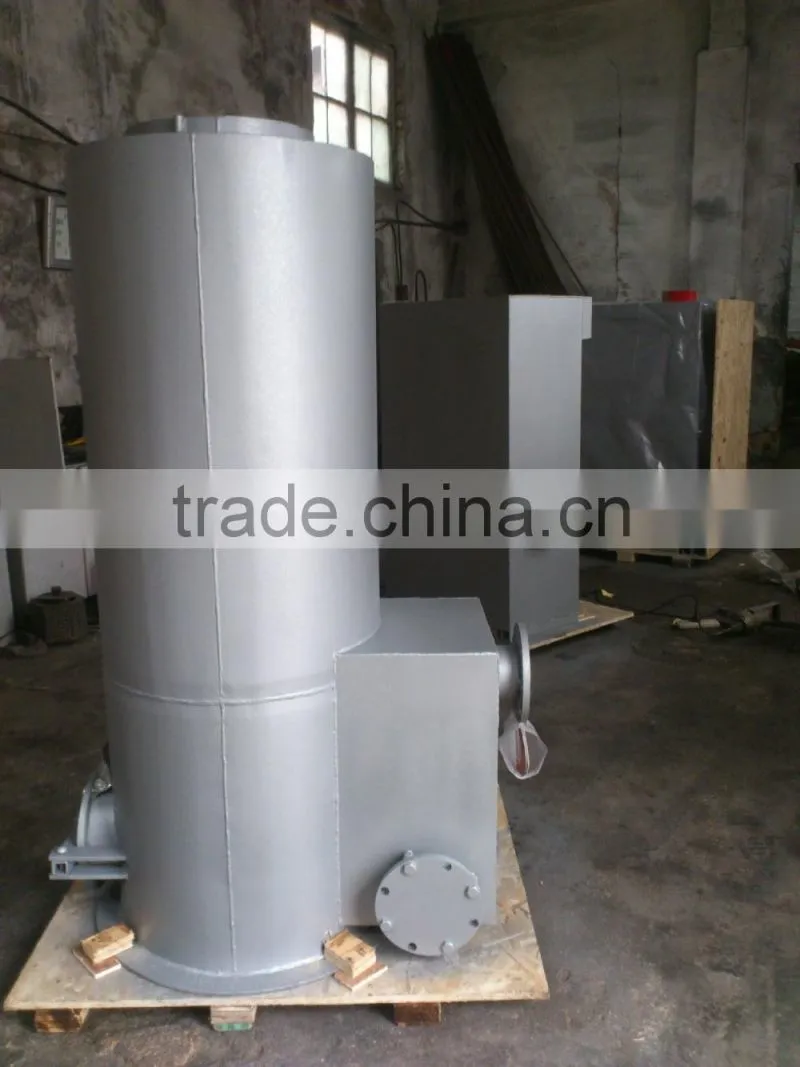

TZ Downdraft Biomass Gasifier is our new renewable product which can generate clean and
useful gas with the materials of agro-wastes and wood wastes, such as straw, cotton stalk, corn stalk, peanut shell, wood shavings,
wood chips etc.
Features:
1. New design, advanced technology, scientific and compact structure, high efficiency, simple
operation.
2. Only 2 minutes to generate gas. And it takes 8-12 minutes to boil 4.5kgs water same as the natural gas.
3. Feeding raw material, generating gas, using gas can realize simultaneously.
4. Good cleaning device to control the tar content, ash content, water content and guarantee the
gas clean and good.
5. The occupy area is not over 1 square meter. Gasifying efficiency can get to 70%. The heat
value of gas is 4600-5200KJ/m3.
6. And we can design the suitable power according to customer’s electricity situation.
Technical parameters :
Model |
TZ-10 |
TZ-20 |
TZ-30A |
Gas output |
10m3/h |
20m3/h |
30-50m3/h |
Gas calorific value |
4600-5200KJ/m3 |
4600-5200KJ/m3 |
4600-5200KJ/m3 |
Efficiency of gasification |
>70% |
≥80% |
≥85% |
Draught fan Power |
220V |
220V |
220V |
Material amount |
3~5kg/h |
6-10Kg/h |
25-30Kg/h |
Size(mm) |
1030*630*1185 |
1400*850*1450 |
2100*800*1500 |
More Pictures:
