nails making machine india /nail production line 0086136736385830
Contact Person: Cathy
Skype: Taizy2031
Mobile: 008613673685830

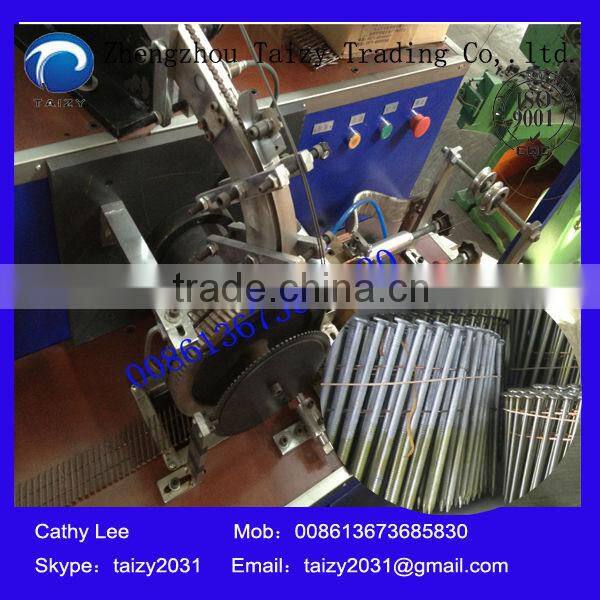

Function of small nails making machine
This machine adopts piston structure to ensure the high working speed, low noise, high size accurancy and less chance of impact characteristics, especially can make excellent quality You Mao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.
Main Specifications of small nails making machine
Model |
TZ-1 |
TZ-2
|
TZ-3
|
TZ-4
|
TZ-5 |
Max. dia. of nail |
5.5mm |
4.5mm |
3.5mm |
2.8mm |
1.6mm |
Min. dia. of nail |
3.8mm |
2.8 mm |
1.8 mm |
1.2 mm |
0.9 mm |
Max. Length of nail |
150mm |
100mm |
75mm |
50mm |
25mm |
Min. length of nail |
80mm |
50 mm |
30mm |
16mm |
9mm |
Motor power |
5.5kw |
4kw |
3kw |
2.2kw |
1.5kw |
Nail making speed |
200pcs/min |
260pcs/min |
320pcs/min |
350pcs/min |
450pcs/min |
L*W*H |
2.5*1.6*1.5m |
2.2*1.6*1.65m |
2.0*1.4*1.4m |
1.7*1.3*1.4m |
1.5*1.3*1.2m |
Weight |
2.3tons |
2tons |
1.8 tons |
1.45 tons |
1.2ton |
Features of small nails making machine
1. The nail making machine has the features of small in size, easy to move, low noise, low power consumption, and it is easy to operate, just need to change different size mould for making different diameter nails, if you want to make different lengths of nails for same diameter, no need to change anything.
2. The nail making machines can feed the materials automatically, and making nail body straight, nail points sharp and symmetric, nail caps round. Each nail made from this machine is excellent and perfect.
3. The main components (shaft, cams and gear) of nail machine are made of high quality steel, and durable in use, has good stability.
4. Free training of operating machines is offered for fee.

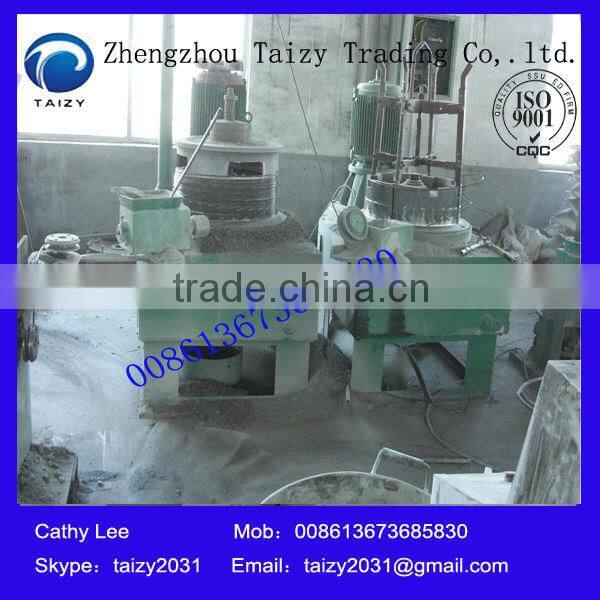

Steps of small nails making machine step 1 wire drawing machine

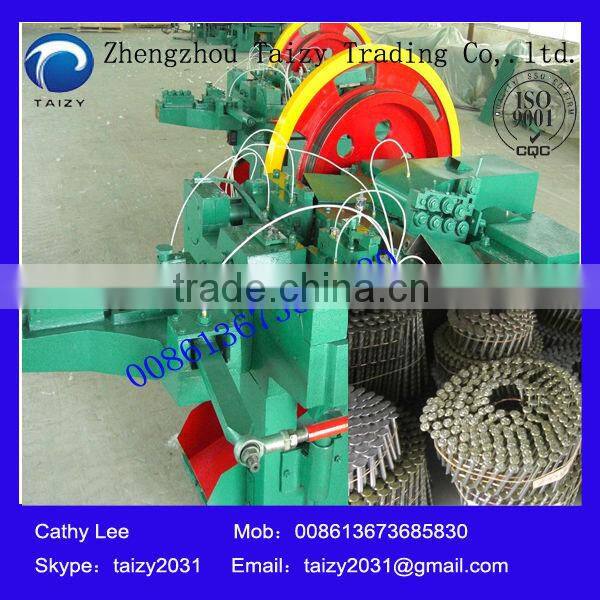

step 2 nail making machine
step 3 nail washing machine
step 4 thread rolling machine
step 5coil nail collator
