Industrial Mattress Sewing Machine
US$ 2,500 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12 Month Warranty Wire Nail Making MachineUS$ 1,000 - 6,000MOQ: 1 Set -
2015 Paper Fiber Mosquito Coil Making Machine for SaleUS$ 1,000 - 50,000MOQ: 1 Set
-
2014 High Quality Wall Plastering Machine With Factory Price 0086 15037190623NegotiableMOQ: 1 Set
-
Hot Sale Automatic Brad Nail Making Machine 008615037167361US$ 1 - 2MOQ: 1 Set
-
Powder Sieving Machine|Mesh Chemials and FoodUS$ 10,000 - 20,000MOQ: 1 Set
Condition
New
Type
Industrial Sewing Machine
Place of Origin
Henan, China
Brand Name
Taizy
Model Number
TZRN-8B
Mechanical Configuration
Flat-Bed
Max. Sewing Speed
2000 needle/min,1100-3000r/min
Max. Sewing Thickness
50-500mm
Power
550w
Overall Dimensions
2200*1480*800mm
Feed Mechanism
Needle Feed
Certification
ISO CE
After-sales Service Provided
Engineers available to service machinery overseas
industrial mattress sewing machine
Brief Introduction:
1. It is used for sewing the mattress.
2. The machine head can lifting automatically.
3. The machine head drive and traveling box drive adopt double servo motor,
when reach the corner, the machine will be slow down automatically.
4. The corner is equipped with bumper to make the sewing more stable.
The Technical Parameters:
Model |
SLRN-8B |
Motor Power |
220V, 550W |
Machine head rotation |
1100-3000r/m |
Needle use |
DP×17 |
|
Machine head working angle |
30°-58° |
Mattress thickness sewing range |
50-500mm |
Table-board lifting range |
380mm(adjustable) |
Max sewing speed |
2000 needle/min |
Table-board Size |
1300*1930mm |
Max sewing mesh |
8.0mm |
Machine weight |
350kg |
Packing size |
2200*1480*800mm |

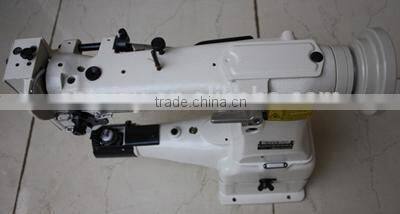

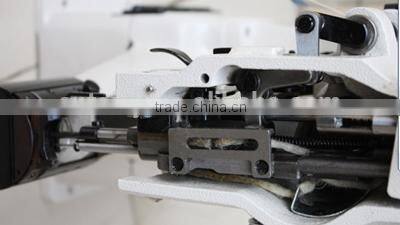

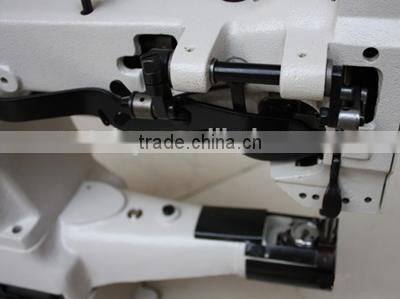

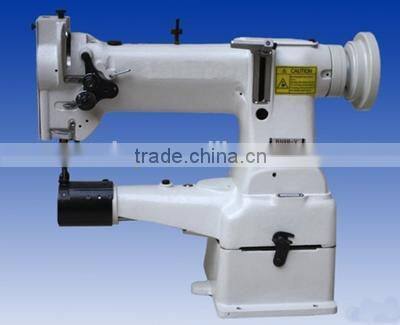

More Pictures:
Please feel free to contact me any time you want!
