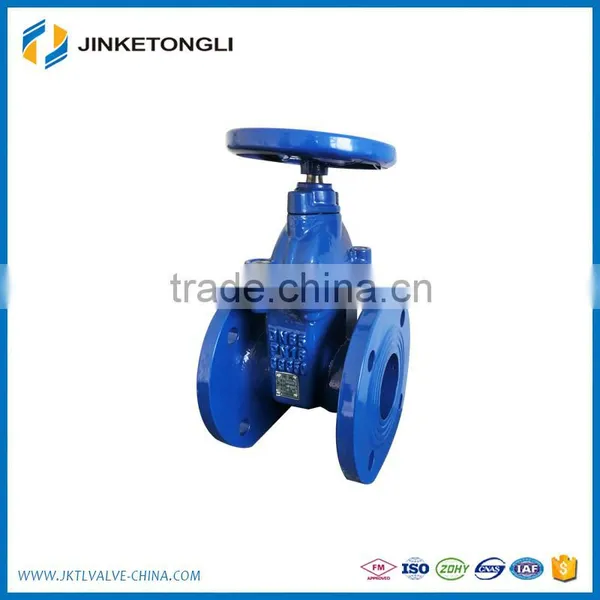

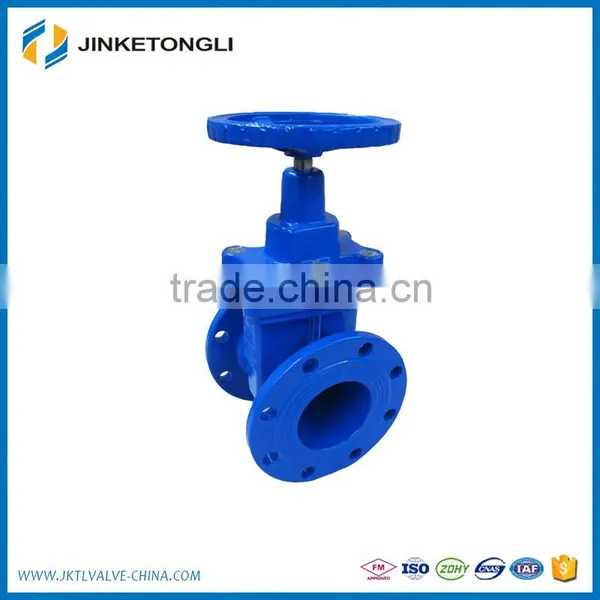

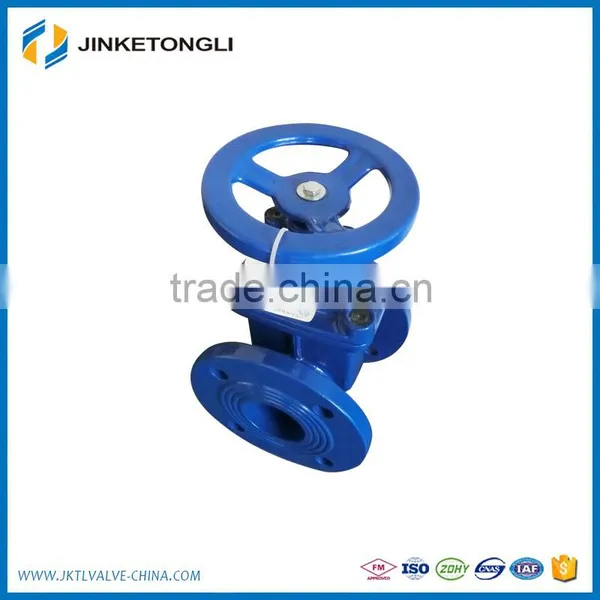

Ductile Cast Iron Gate Valve
NO. |
PARTS NAME |
MATERIAL |
1 |
Valve Body |
Ductile Iron ASTM A536 |
2 |
Resilient Wedge |
Ductile Iron ASTM A536+EPDM ASTM D 2000 |
3 |
Wedge Nut |
Bronze ASTM B 584 UNS C83600 |
4 |
Stem |
Bronze ASTM B 150 UNS C61400 |
5 |
Bonnet Gasket |
EPDM ASTM D2000 |
6 |
Bonnet Screw |
Alloy Steel ASTM A 574M Zinc Plated |
7 |
Bonnet |
Ductile Iron ASTM A536 |
8 |
Stem Primary O-ring |
EPDM ASTM D2000 |
9 |
Stem Thrust Washer(lower) |
Bronze ASTM B 584 UNS C83600 |
10 |
Stem Thrust Washer(upper) |
Stainless Steel ASTM A 276 UNS S41000/C83600 |
11 |
Gland Seal O-ring |
EPDM ASTM D2000 |
12 |
Stem Seal Bushing |
Bronze ASTM B 584 UNS C83600 |
13 |
Stem Secondary O-ring |
EPDM ASTM D2000 |
14 |
Gland Flange |
Ductile Iron ASTM A536 |
15 |
Gland Flange Screw |
Alloy Steel ASTM A 574M Zinc Plated |
16 |
Stem Ring wiper |
EPDM ASTM D2000 |
17 |
Square Operating Nut |
Cast Iron ASTM A 126-B |
18 |
Flat Washer |
Carbon Steel Zinc Plated |
19 |
Screw |
Alloy Steel ASTM A 574M Zinc Plated |
- Our experienced technical group could help you to design and produce the products. Professional proposal can improve the product's quality with least cost. The design is according to your samples or drawings.
- We are authorized to issue the quality certificate.
- We provide you best after-sale servive for our valves, fittings and manifolds.
