China Supplier JKTL Api Gate Valve

China Supplier JKTL Api Gate Valve thumbnail-1
China Supplier JKTL Api Gate Valve photo-1
US$ 32.69 - 1,203.44 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Hebei Tongli Automatic Control Valve Manufacturing Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Gate
Pressure Medium Pressure
Power Manual
Material Other, cast iron, stainless steel
Temperature of Media Medium Temperature
Media Other, water, oil &gas
Port Size DN40-DN500
Place of Origin Hebei, China
Model Number Gate Valve
Brand Name JKTL
Application General



China supplier JKTL api gate valve

Product Description

JKTL valve overcome the general poor flexibility fatigue, easy to get rusty defects, the troditional

soft sealing valve is substitute. Trace the elastic deformation of the damper have compensation

and to achieve good sealing effect. The switching valve with lighter, seal reliable, flexible and long

life, goood memory and obvious advantages, which can be widely used in water, sewage,

construction, food, electricity, medicine, metallurgy, light industry and texible, energy systems

such as fluid pipeline regulation and the closure devices.

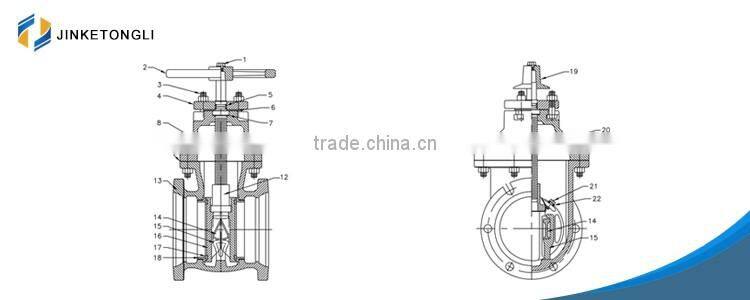

 China supplier JKTL api gate valve



QTY

DESCRIPTION

MATERIAL

1

1

Capscrew & Whasher

304 Stainless Steel

2

1

Handwheel

Cast iron, ASTM A126 Class B

3



Bolts & Nuts (O-Ring Plate)

304 Stainless Steel

4

1

O-Ring Plate

Cast iron, ASTM A126 Class B

5

2

O-Rings (O-Ring Plate)

Rubber

6

1

Gasket (O-Ring Plate)

Composition

7

1

Low Torque Bearing

Delrin

8

1

Cover

Cast iron, ASTM A126 Class B

9



Bolts & Nuts (Cover)

304 Stainless Steel

10

1

Gasket (Cover/Body)

Composition

11

1

Non-Rising Stem

Low Zinc Bronze

12

1

Stem/Gate Nut

Bronze

13

1

Body

Cast iron, ASTM A126 Class B

14

2

Wedge

Bronze

15

2

Hook

Cast iron, ASTM A126 Class B

16

2

Gate/Disc

Cast iron, ASTM A126 Class B

17

2

Gate/Disc Ring

Bronze

18

2

Case/Body Ring

Bronze

19

1

Operating Nut

Cast iron, ASTM A126 Class B

20

1

Pipe Plug

Steel with Teflon

21

4

Capscrew on 10" & 12" only

Silicon Bronze

22

2

Straps on 10" & 12" only

Stainless Steel

* DELRIN BEARING, PART 7, USED ON 4"-12" ONLY.

2"-3" has all bronze gates, without rings and hooks. Wedge is one piece bronze.

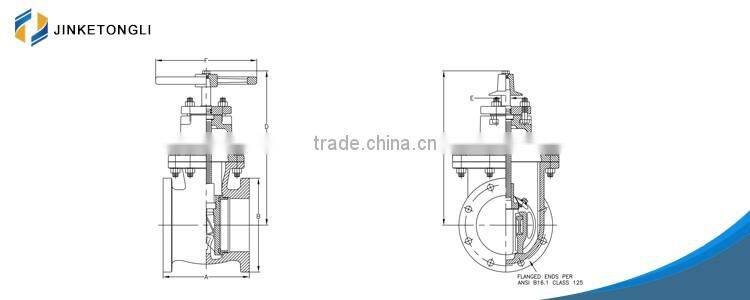

China supplier JKTL api gate valve



VALVE SIZE

A

B

C

D

E

F

G

H

TURNS TO OPEN

2

7

6

5

11 3/4

 7/8

7 1/4

5 7/8

11 3/4

5

2 1/2

7 1/2

7

5 1/8

13

 7/8

7 1/4

6 3/8

13

6

3

8

7 1/2

5 1/2

14

 7/8

7 1/4

7 1/8

14

7

4

9

9

7

15 1/4

15 1/4

1 1/8

9

15 1/4

15

5

10

10

7 3/4

16 3/4

16 3/4

1 1/8

10 7/8

16 3/4

18

6

10 1/2

11

9

18 1/2

18 1/2

1 1/4

12 5/8

18 1/2

21

8

11 1/2

13 1/2

10

21 5/8

21 5/8

1 3/8

15 1/4

21 5/8

27

10

13

16

10 5/8

28 1/4

28 1/4

1 1/2

18 1/4

28 1/4

33

12

14

19

11 1/4

30 3/4

30 3/4

1 1/2

20 1/4

30 3/4

39



Usages

This API Standard Gate Valve Stainless Steel 304 24'' Industrial Gate Valve used in petroleum,

chemical, thermal power plant under various working conditions such as the pipeline, cut off or

connect pipe medium.Applicable medium: water, oil,steam, etc.
It allows for two–way flow direction and used for closing or opening the medium flow. The wedge is

replaceable without needing to remove the valve from the pipelines. Short length structure, good

sealing performance. Simple shape, good casting process, widely used. It is designed with straight

through bore type with rising stem, outside screw & yoke, bolted bonnet and stainless steel trim.

The opened and closed position of the valve is easily distinguished by the
stem position. This valve can be installed in horizontal and vertical positions inthe piping systems.

The torque for opening and closing is small, so it is easy to open or close reliably and quickly.

Certifications

China supplier JKTL api gate valve
