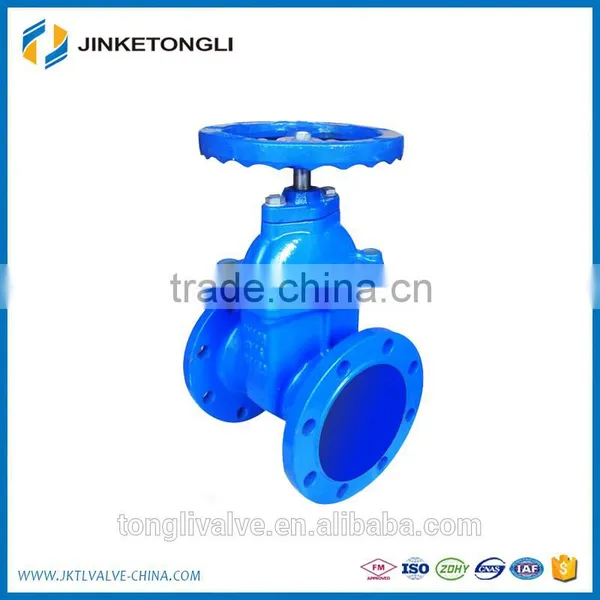

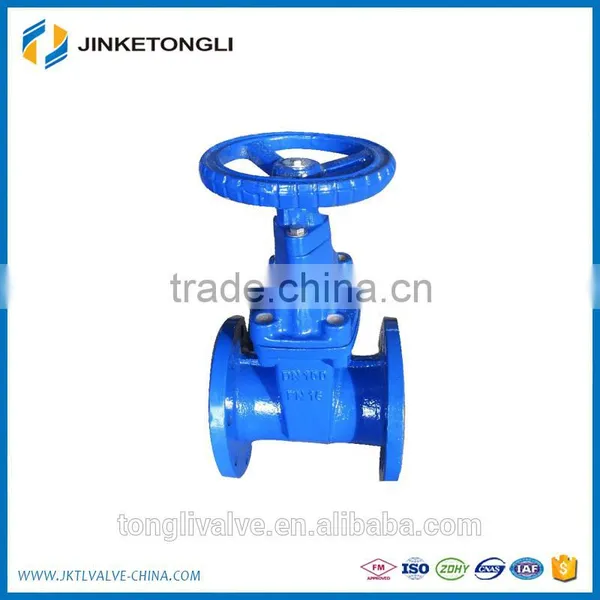

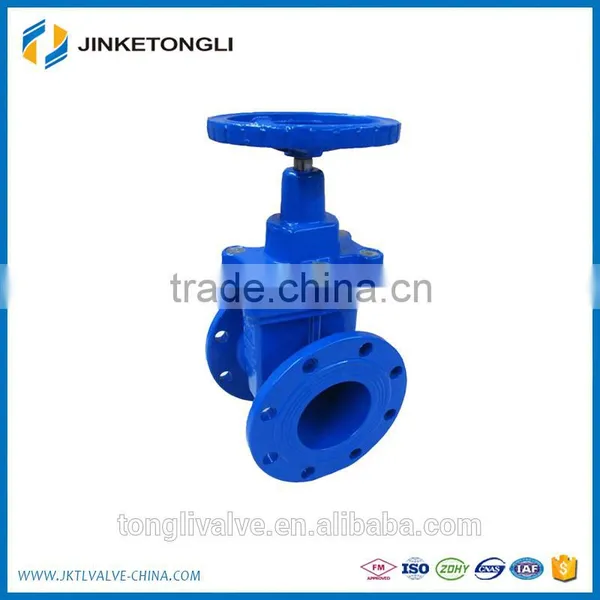

Stem Gate Valve with price
NO. |
PARTS NAME |
MATERIAL |
1 |
Valve Body |
Ductile Iron ASTM A536 |
2 |
Resilient Wedge |
Ductile Iron ASTM A536+EPDM ASTM D 2000 |
3 |
Wedge Nut |
Bronze ASTM B 584 UNS C83600 |
4 |
Stem |
Bronze ASTM B 150 UNS C61400 |
5 |
Bonnet Gasket |
EPDM ASTM D2000 |
6 |
Bonnet Screw |
Alloy Steel ASTM A 574M Zinc Plated |
7 |
Bonnet |
Ductile Iron ASTM A536 |
8 |
Stem Primary O-ring |
EPDM ASTM D2000 |
9 |
Stem Thrust Washer(lower) |
Bronze ASTM B 584 UNS C83600 |
10 |
Stem Thrust Washer(upper) |
Stainless Steel ASTM A 276 UNS S41000/C83600 |
11 |
Gland Seal O-ring |
EPDM ASTM D2000 |
12 |
Stem Seal Bushing |
Bronze ASTM B 584 UNS C83600 |
13 |
Stem Secondary O-ring |
EPDM ASTM D2000 |
14 |
Gland Flange |
Ductile Iron ASTM A536 |
15 |
Gland Flange Screw |
Alloy Steel ASTM A 574M Zinc Plated |
16 |
Stem Ring wiper |
EPDM ASTM D2000 |
17 |
Square Operating Nut |
Cast Iron ASTM A 126-B |
18 |
Flat Washer |
Carbon Steel Zinc Plated |
19 |
Screw |
Alloy Steel ASTM A 574M Zinc Plated |
Hebei Tongli Self-Control Valve Co., Ltd. is located in the casting country of China.
Our products are in accordance with the ISO9001 Quality and ISO14001 Environment Management
System. also SGS, BV.
And our products are sold to over 30 districts in China and also exported to many districts such as
Europe, America, Japan, South Korea and Middle East.
All the valve can be designed and produced by your drawing or requirement.
