Home > Products > Control Valve > Floating Ball Control Valve
Floating Ball Control Valve
- 250 Piece / Pieces per Month
- TIANJIN SHANGHAI
- T/T Credit Card PayPal
Product Details
Standard or Nonstandard: | Standard | Structure: | Control | Pressure: | High Pressure |
Power: | Hydraulic | Material: | Forged | Temperature of Media: | High Temperature |
Media: | Other, water, oil &gas | Port Size: | 1/2"-4" | Place of Origin: | Hebei, China |
Model Number: | Control Valve | Brand Name: | JINKETONGLI | Application: | General |
Packaging Details
wooden box or according customer's requirement
Product Description

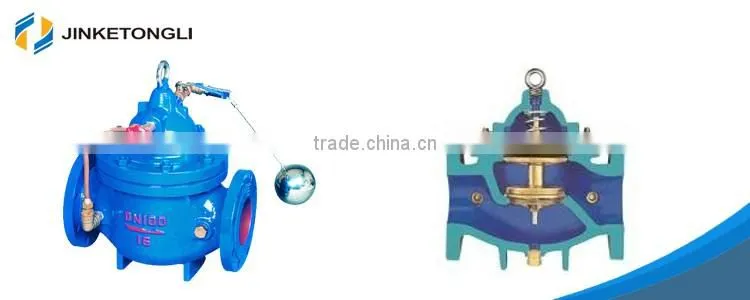

Floating Ball Control Valve
Parts | Material |
Valve Body/Valve cover | WCB |
Valve Seat/Valve Seat | Copper Alloy |
Sealing Ring/O-ring | Rubber |
Stem | Zcr13 |
Spring | 50CrVA |
Needle | Copper Alloy |
Micro Filter | Stainless Steel |
Nominal Pressure | Shell Test Pressure | Seal Test Pressure | Applicable medium | Medium temperature |
1 MPa | 1.5 | 1.1 | water | 0~80℃ |
1.6 MPa | 2.4 | 1.76 | ||
2.5 MPa | 3.75 | 2.75 |

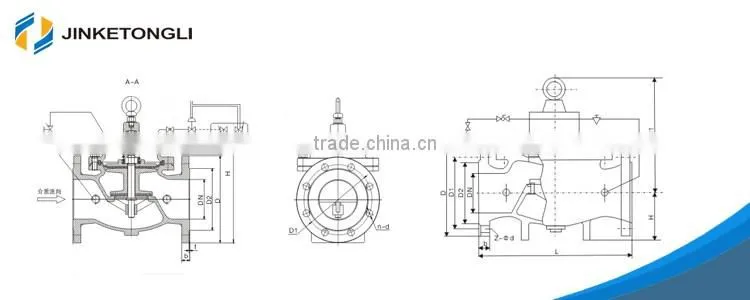

Nominal Diameter | L | H | H1 | A | B |
50 | 250 | 260 | 90 | 340 | 260 |
65 | 280 | 285 | 98 | 350 | 270 |
80 | 300 | 295 | 110 | 360 | 280 |
80 | 350 | 315 | 120 | 380 | 290 |
125 | 400 | 335 | 145 | 420 | 340 |
150 | 450 | 390 | 155 | 440 | 360 |
200 | 550 | 460 | 190 | 465 | 385 |
250 | 650 | 520 | 250 | 495 | 415 |
300 | 800 | 620 | 290 | 580 | 440 |
350 | 900 | 650 | 330 | 605 | 470 |
400 | 1000 | 750 | 445 | 655 | 510 |
500 | 1100 | 800 | 495 | 685 | 545 |
600 | 1100 | 900 | 550 | 740 | 610 |
700 | 1450 | 1000 | 605 | 800 | 670 |
800 | 1560 | 1100 | 730 | 860 | 730 |
900 | 1800 | 1200 | 800 | 915 | 785 |
100 | 2000 | 1330 | 910 | 985 | 855 |
1. Fluid resistance is small, and its resistance coefficient is equal to that of the same length.
2. Simple structure, small size, light weight.
3. Close and reliable, the current valve sealing surface material widely used plastic, good sealing, in the
vacuum system has also been widely used.
4. Easy operation, open and close rapidly, from fully open to fully closed as long as 90 degree rotation,
facilitate remote control.
5. Maintenance convenient, simple structure, the sealing ring is generally active, demolition and replacement
are more convenient.
6. In the fully open or fully closed, the ball and valve seat sealing surface and the dielectric isolation, the
media through, will not cause the valve sealing surface erosion.
7. Wide range of applications, from small to a few millimeters diameter, large to a few meters, from high
vacuum to high pressure can be applied.
8. Remote control floating ball valve has its own unique structure of some of the advantages, such as the
switch without friction, seal is not easy to wear, opening and closing torque is small. This reduces the size
of the actuator. Equipped with multi turn electric actuator, can realize the adjustment of the medium and
tight cut off.
Company Profile
Hebei Tongli Automatic Control Valve Manufacturing Co., Ltd. is a comprehensive enterprise integrating valve research, production and sale. In recent years, our company has been mainly engaged in the development and production of HVAC and water supply, drainage valves, digital locked balance valves, flow control valves, self-reliance type dynamic resistance differential pressure control valves, balance valves, electric 3-way regulating valves, electric two-way valves, regulating valves, temperature difference and temperature control valves.
Our feed water series includes remote-controlled floating ball valves, hydraulic level control valves, hydraulic slowly-closing silencing check valves, vacuum regulator valves and so on. Some products have obtained 12 national patents, and our products have been endorsed by the ministry of construction as the construction, design staff preferred products, and are successively chosen by the national key projects.

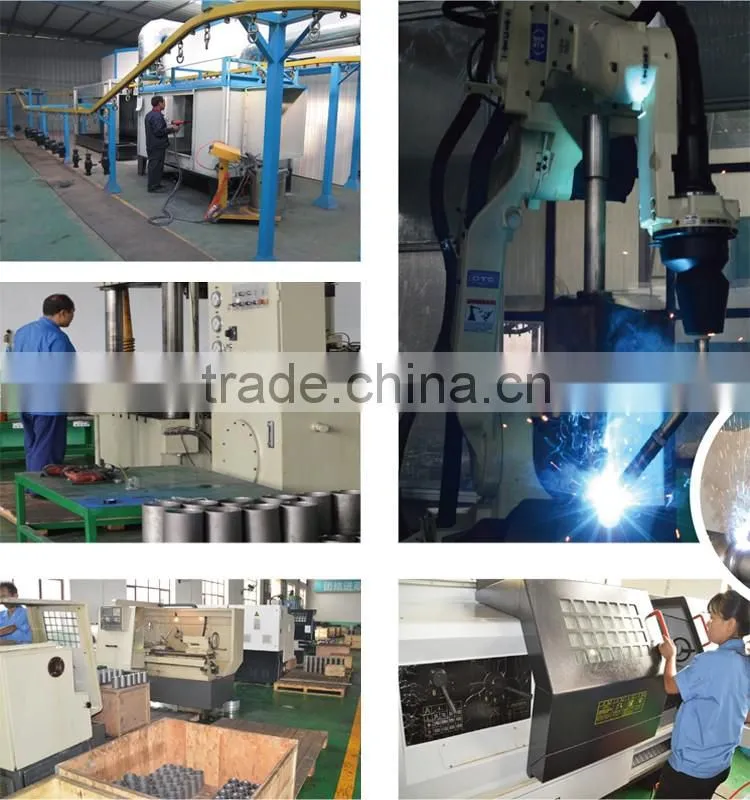

Our company has are capable of casting, processing, assembly and quality inspection. We employ a number of domestic and foreign well-known experts and professors as technical advisers, constantly improve the technological content of products and develop new products to make technology tangible.
