Product introduction
1, this machine is our latest design, more beautiful and high efficiency.
2, it can save a lot of time and labors.
3, its speed is faster, ensuring your output.
4, life-long maintenance
5, has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
6, Undertake various non-standard machinery, solve the customers' requirements.
7, has several senior, continuous innovation and reform, in order to ensure the quality of mechanical stability.
2.Our quality:
Three steps of Strict quality inspection process (spare parts inspection - assembly - the whole equipment inspection), design patents, more than ten years of experience in machinery manufacturing, hundreds of customers, you can rest assured to buy!

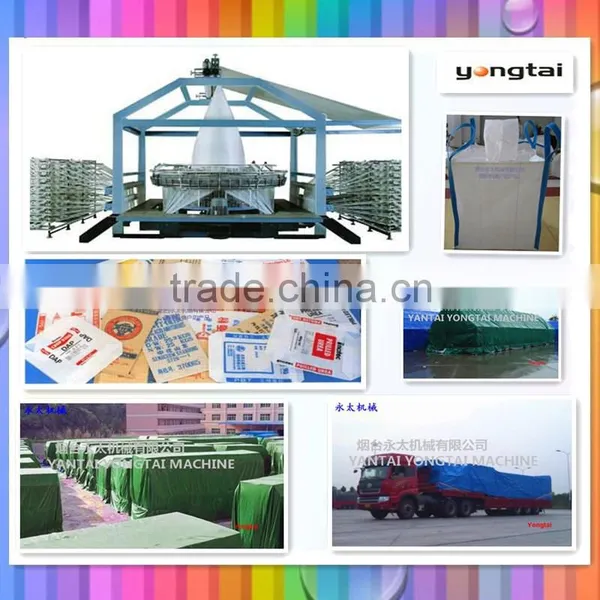

3. The main features of some YONGTAI circular looms:
circular weaving machine
braiding machine
knitting machine for weaving
plastic woven bag production line
flat spinning machine
high speed automatic bag-forming machine
new high-speed efficient popular durable
woven bag
plastic cement packaging bag
Cement ton bag
Textile weaving shuttle loom
frequency-automatic
Please contact us:
Trade manager: cnyongtaimachine QQ: 3168002940 Skype: yongtaimachine
Type |
SBY-2800*10 |
Revolutions |
10-53rpm(variable frequency) |
Power of main motor |
15kw |
Main speed reducer |
Taper gear wheel speed reducer connected directly with the electrical motor |
Shuttles |
10 |
Track width |
140mm(the face of track is plated with hard chromium) |
Fold diameter |
2300-2800mm(best scope 1600-2000mm) |
Number of warp |
Max 3600pcs |
Density of weft |
32-64pcs/100mm(changing weft density through changing gears) |
Theoretical output |
50-100m/h |
Warp diameter |
Max Φ 135mm |
Weft diameter |
Max Φ 105mm |
Involution electrical motor |
150kg.cm |
Involution width |
Max 2200mm |
Involution diameter |
Max Φ 1200mm |
Involution style |
Double-cutting and double-rolling |
Length statistics style |
Mechanical three-shift length meter |
Specs of shuttles |
Φ38×230 or Φ38×270 |
Yarn plate specs |
Φ38 |
Let-off device |
Initiative let-off(torque electrical motor 8kg.cm×2 |
Let-off rubber covered roller |
Φ150mm×2755mm |
Warp-broken control |
It stops automatically when warp breaks |
Weft-end control |
Electrical motor style weft-end system |
Lubricating style |
The cam is lubricated circularly by force through gear pump(oil is deposited and filtered by oil box; The draw runner of shuttles is lubricated through needle valve oil dripping |
Oil route protection |
It stops when oil route has jam |
Dimension |
(L)18m×(W)4.5m×(H)5.5m |
Weight |
About 7.8t |
