Manufacture CE Certification XK-250 Lab Rubber Mixing Mill/laboratory Two Roll Mill

Manufacture CE Certification XK-250 Lab Rubber Mixing Mill/laboratory Two Roll Mill thumbnail-1

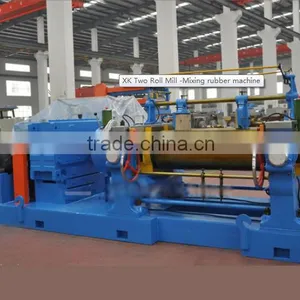

Manufacture CE Certification XK-250 Lab Rubber Mixing Mill/laboratory Two Roll Mill thumbnail-2
Manufacture CE Certification XK-250 Lab Rubber Mixing Mill/laboratory Two Roll Mill thumbnail-3
Manufacture CE Certification XK-250 Lab Rubber Mixing Mill/laboratory Two Roll Mill photo-1

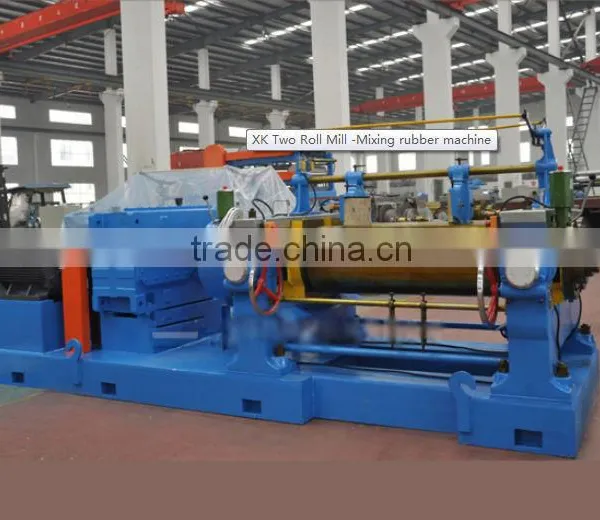

Manufacture CE Certification XK-250 Lab Rubber Mixing Mill/laboratory Two Roll Mill photo-2
Manufacture CE Certification XK-250 Lab Rubber Mixing Mill/laboratory Two Roll Mill photo-3
US$ 6,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Open Mixing Mill
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingdao Huachuan Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Open Mixing Mill
Place of Origin Shandong, China
Brand Name QDHC
Model Number XK 400
Voltage customized
Power(W) customized
Dimension(L*W*H) customized
Weight customized
Certification CE,ISO
Warranty One Year
After-sales Service Provided Overseas service center available

XK-450 Double drive roller rubber mixing mill















Specification



1.The roller adopts safe cold hard cast-iron, formed by the grinding smooth surface.  Inside the hollow cylinder for use , the steam and cooling water is used to regulate the temperature of the rolls according to the requirement .

2.Two rolls with different relative rotation speed,  make the rubber roller into the slot between the two rubber rolle by mechanical process.

3.While happened accidents, pull the rod, the main parts won’t be damaged  for its protection immediately braking ,. So it is safe and reliable.





Working principle


Its main working parts  is  two different parts of the rotating drill hollow cylinder or rollers. The device in the side of the operator, can be called the front roll and operated  by manual or electricity in the level movement in order to adjust and adapt to the requirements from roller.







Technical parameters



              model

XK-150

XK-250

XK-300

XK-360

X(S)K-400A

X(S)K-450A

X(S)K-560A

Working diameter rolle(mm)

φ150

φ250

φ300

φ360

φ400

φ450

φ560

The length of roller work(mm)

320

620

750

900

1000

1200

1530

Front roller speed(m/min)

11.24

14.4

15.1

16.25

18.65

24.5

29.09

Before and after the roller speed ratio(m/min)

1:1.4

1:1.17

1:1.27

1:1.25

1:1.27

1:1.27

1:12

Roll away the largest(mm)

8

8

8

10

10

15

20

A feeding quantity(kw)

1-2

10-15

15-20

20-25

18-35

25-50

50-65

Driving motor power

1.5

18.5

22

30

37

55

90

outline demension
(mm)

length

1080

3400

3580

3780

4250

5200

6120

width

796

1500

1550

1850

1850

2380

2282

height

1415

1500

1695

1740

1870

1770

2000

weight(kg)

1100

3500

5200

6500

7600

13000

22000

Manufacture CE Certification XK-250 lab rubber mixing mill/laboratory two roll mill
