Specifications
High quality !!! CE Jolt Squeeze Moulding Machine RFQ1.Produces castings
2.Control weight easily with
High quality !!! CE Jolt Squeeze Moulding Machine RFQ

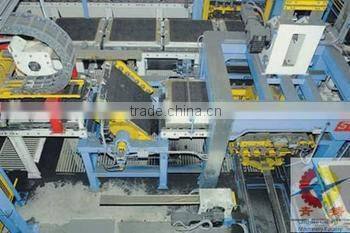

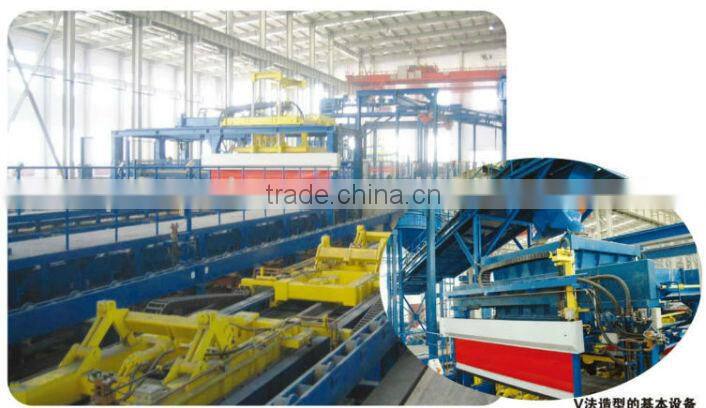

Product pictures:
parameters :
Name |
UNIT |
Z143W |
Z144W |
Z145W |
Z146W |
Z146WB |
Z148CW |
The Max. dimension of Sand Box |
mm |
400*400*100 |
400*500*180 |
450*500*200 |
500*600*200 |
500*600*200 |
630*800*320 |
Worktable/ Workbench dimension |
mm |
560*420 |
465*500 |
600*460 |
550*700 |
550*700 |
900*730 |
Jarring Load / Air pressure |
kgf /Mpa |
0.55 |
0.6 |
300/0.6 |
300/0.6 |
0.6 |
0.6 |
Compressive stress |
kgf |
4000 |
4200 |
6300 |
7000 |
8300 |
12000 |
Compress process |
mm |
100 |
120 |
160 |
200 |
160 |
180 |
Drawing mould process |
mm |
160 |
150 |
200 |
200 |
200 |
320 |
Distance compacting plate with worktable |
mm |
200-370 |
300-400 |
300-450 |
350-450 |
450-600 |
680 |
Productivity |
mould/h |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
Out line dimension L*W*H |
mm |
950*680*1280 |
1050*1100*1410 |
1200*1000*1693 |
1380*850*1565 |
800*1200*1670 |
1600*1038*2200 |
Work mechanism:
The worktable fall and collide with floating shock-iron,and the sand was tighted slightly, and then to compaction,get the top and bottom of sand mould are tight. The slightly shock is high frequency (500-1000 times/min), small amplitude (5-25 mm) vibration instead of low frequency (60-120 times/min), the large amplitude vibration. This kind of moulding machine made of sand mold are good quality, the basic requirement is also lower.
The machine feature :
- The vacuum airproof molding Machine Noise Controlled
- The vacuum airproof molding Machine Combined Jolt Squeeze
- The vacuum airproof molding Machine Accurate Centreline Draw
- The vacuum airproof molding Machine Variable Jolt Timers
- The vacuum airproof molding Machine Operational Roller on Pin Lift Draw
- The vacuum airproof molding Machine Operational Safety Guards

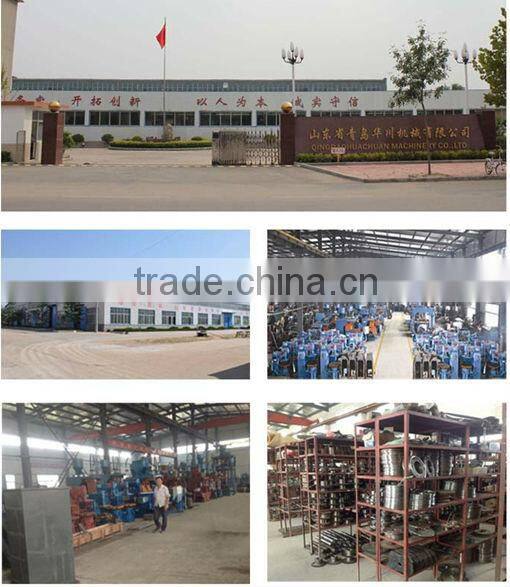

Our factory:

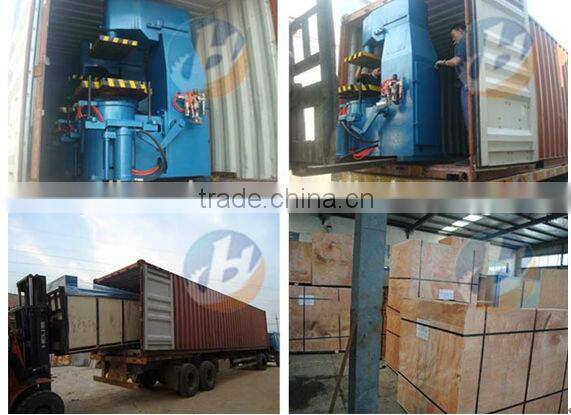

Shipments:
With customer :
Bill of lading:
We can design product according to your demand. Our molding machine have stabile performance , good quality and reliable service. We allow a proper discount according to the quantity you order.If you have any question, pls dont feel any hesitate to ask me, i will try best to meet your demand,It'smake our company great honour .
