DESCRIPTION | ||||||||
Features: |
| Item | MIG-180 |
| Mains voltage | 220V |
| Rated power | 8.6KVA/180 25% |
| Connection cable,Fuse delayed |
60% 5.3KVA/120A 100% 4.2KVA/100A 2.5mm2-S-3.3m/16A |
| Load capacity 40 oC | 180A/23.0V 25% |
| Open cricuit voltage |
60% 120A/20V 100% 100A/19V 15.5-42.5V |
| Efficiency at max.current | 0.81 |
| Welding range | 40-180A/14-23V |
| Machine size(mm) | 466*210*360 |
| Packing Measurement(MM) | 400*180*340 |
| G/NWeight(Kg) | 11.8 /9.8 |
| Cod(NO.) | 933028 |
| Accessories | ||||

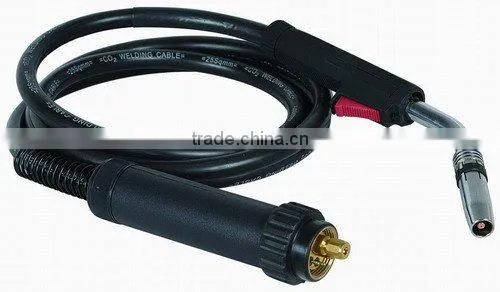

| 1.MIG welding torch AK-15 3meters | 1pc | |||
| 2. welding mask + chipping hammer | 1pc | |||
| 3. ground cable 1.8meters | 1pc | |||

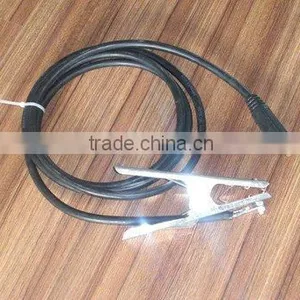

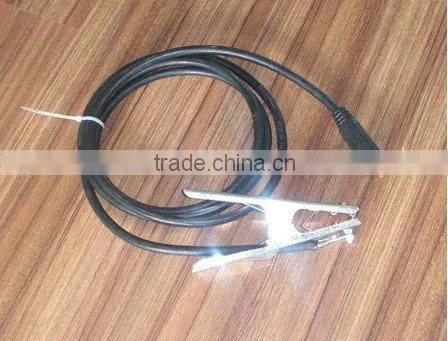

| 4.earth clamp with 1.6metres cable | 1pc | |||
Q: what is warranty time ?
A: 12 months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 10 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- tarde assurance
Q: what is warranty time ?
A: 12 months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 10 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- tarde assurance
Q: can we visit your factory ?
A: yes you can at your free time
