Help CenterCE Approved Low Pressure Polyurethane Foam Injection Machine FD-311A Quality Choice
Related Products
-
High Quality Polyurethane Foam Spray Machine FD-311A for SaleUS$ 3,950 - 4,100MOQ: 1 Set -
Portable Low Pressure Polyurethane Foam Injection Machine FD-311AUS$ 3,950 - 4,100MOQ: 1 Set
-
FD-311A CE Approved Polyurethane Spray Foam Insulation Machine for SaleUS$ 3,950 - 4,100MOQ: 1 Set
-
Polyurethane Injection Foam Filling Machine FD-311A Quality ChoiceUS$ 3,950 - 4,100MOQ: 1 Set
-
Electric Driven Polyurethane Spray Foam Injerction Machine FD-2AUS$ 5,400 - 5,600MOQ: 1 Set

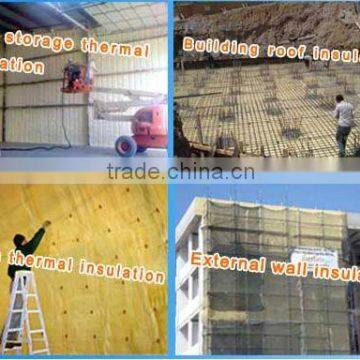

PU foaming machine used for:
- foam insulation spraying machine,
- wall roof insulation foam spraying machine.
- External wall insulation
- Heat insulation of wall, refrigeration storage,roof
- Freeze house
- Insulation for solar water tanks
- Rigid polyurethane only
- Waterproof of roof
Item |
FD-311A Polyurethane foaming machine. |
Price term |
FOB QINGDAO USD |
Terms of Payment |
100% T/T in advance. |
MOQ |
1 set. |
Delivery time |
Within 20 days after receipt of your T/T payment. |
Warranty |
18 months. |
Standard configuration |
Proportion Fixed Mainframe 1 set |
Self-cleaning foaming gun 1 set | |
Feeding pump 2 sets | |
Heating hose 49.2 feet (15m) | |
Connecting hose from feeding pump to machine 10 feet(3m) | |
Connecting hose from heating hose to gun 5 feet(1.5m) | |
Rings and Tools | |
Technical Data |
The ratio of raw material 1:1(Fixed) |
The viscosity range of raw material 200-1000CPS (Under the operate temperature) | |
Max working pressure 13.8 MPa (138 bar) | |
Max fluid temperature 85°C (185°F) | |
Max output 8kg/min (17.6 lb/min) | |
Air motor diameter 5 inch | |
Heater power 3000W each one | |
Heating hose power 1000W/15m | |
Whole power 7500W | |
Voltage 230V 1-ph/400V 3-ph | |
Operate temperature 0°C-70°C | |
Clean mode Self-clean by air | |
Max heating hose length 147.6 feet (45m) | |
Pneumatic source 1Mpa (10 bar, 145 psi) | |
|
Packing size 800mm*700mm*1150mm 1450mm*400mm*550mm | |
Gross weight 220KG |
Q: what is warranty time ?
A: 18 months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost .
Q: what is delivery time / lead time ?
A: 20 days
Q: what is your minimum order ?
A: 1 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- 100% at sight LC
Q: can we visit your factory ?
A: yes you can at your free time.

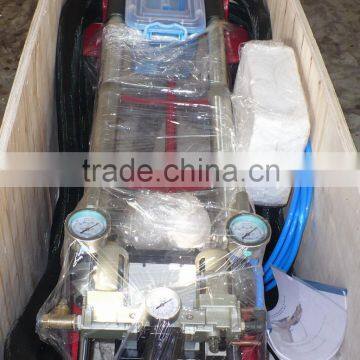

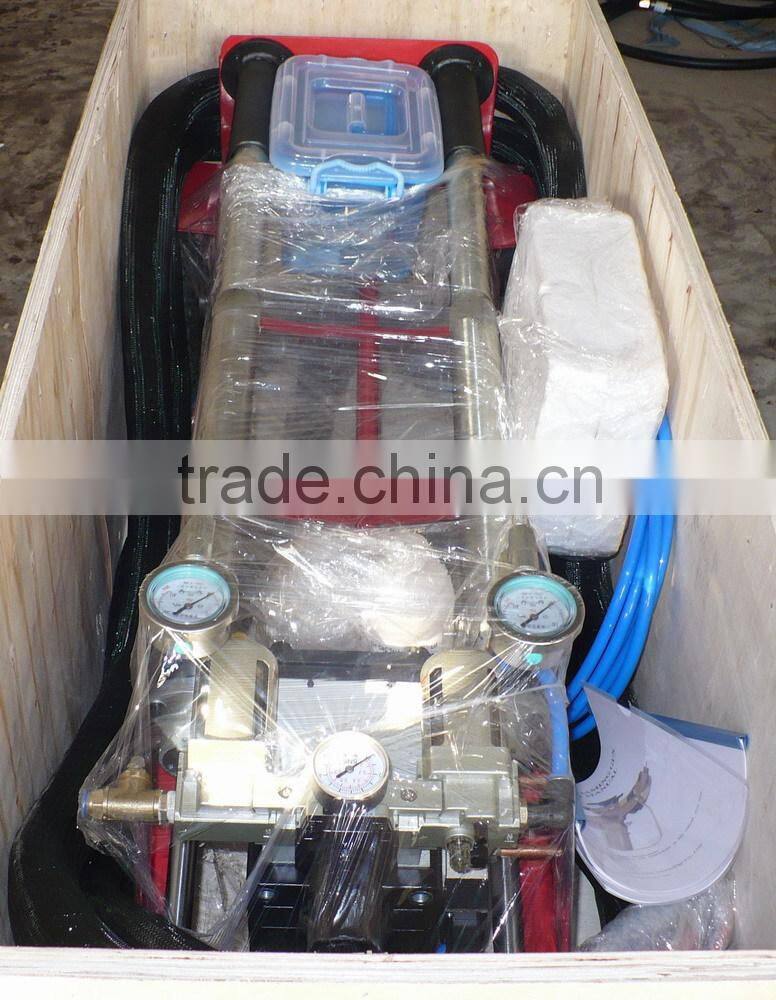

MAINFRAME
APPLICATION SCOPE
CONNECTING HOSE
SPRAY GUN
FEEDING PUMP
SPARE PARTS FREE
Q: what is warranty time ?
A: 18 months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost .
Q: what is delivery time / lead time ?
A: 20 days
Q: what is your minimum order ?
A: 1 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- 100% at sight LC
Q: can we visit your factory ?
A: yes you can at your free time.
