Product Overview

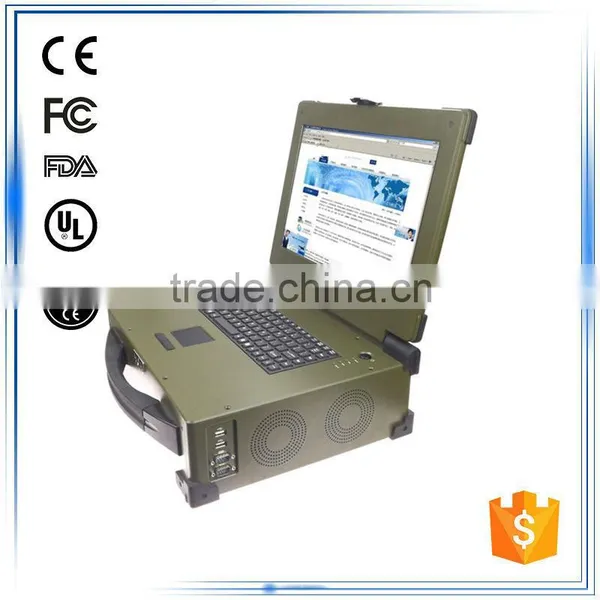

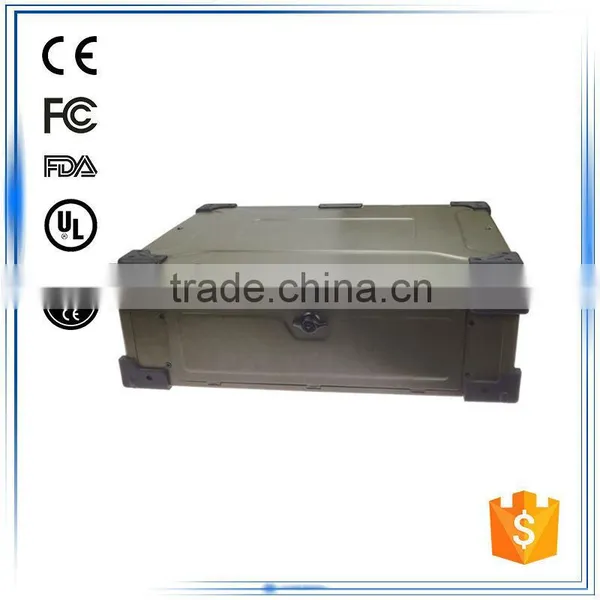

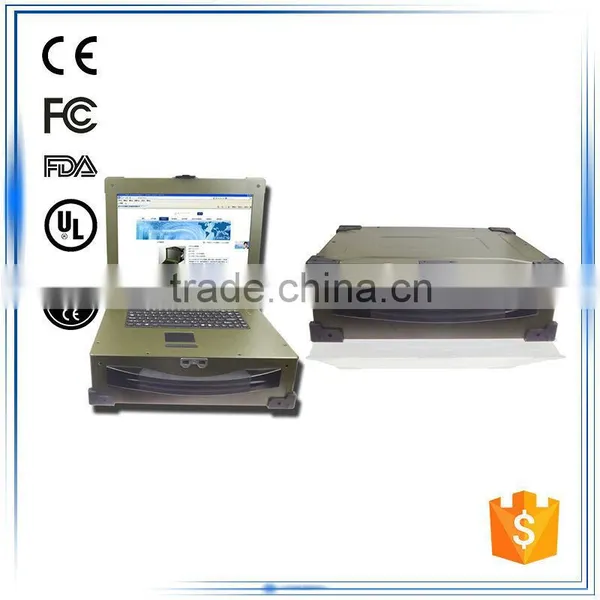

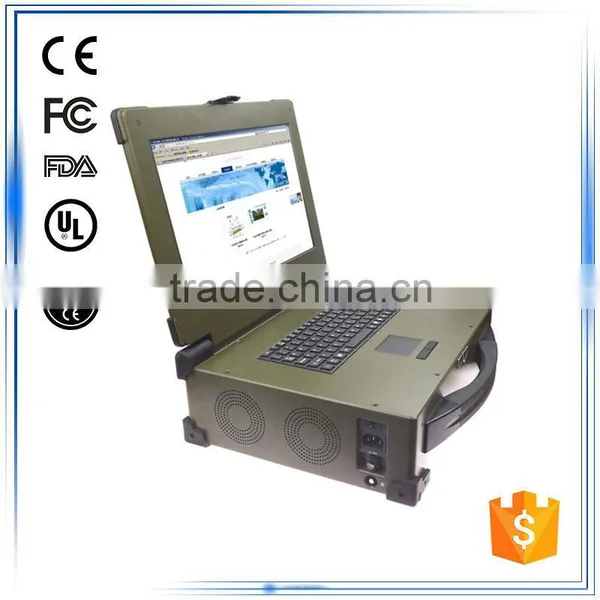

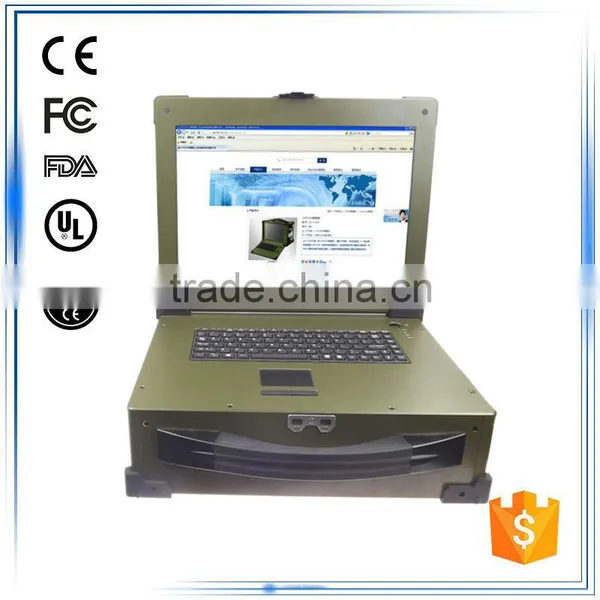

FSX-CP2546 is a rugged portable CPCI computer which using aluminum-magnesium alloy design. It is suitable for all kinds of bad environment no matter of indoor and outdoor. Through the humanized industrial design to ensure that the product has the characteristics of high integration, portable, rugged .It configures 4 slot 6 u CPCI backplane. Engineer can finished the new product development in a shorter time by using this equipment. Thus listed more advantage for the product rapidly accumulates. The product integrates the rich I/O extension interface.Engineers can very convenient to build all kinds of testing and monitoring system. It is suitable for various portable applications.
Product features
1.Aluminum magnesium alloy chassis design, small size, light weight, easy to carry
2.6u 4 slot CPCI backplane, seismic pressure design
3.rugged anti-collision ,250W industrial power
4.15.4″high brightness low temperature LCD ,1280×800
5.Industrial mechanical keyboard (more than 50 million times)
Product specification
CPU |
Intel i3,i5,i7 |
RAM |
DDR3/4GB,dual channelDDR3-1066/1333/1600 SDRAM,dual SODIMM slot, highest support 16GB |
Chipset |
Intel QM67 |
Display driver |
Integrated graphics Intel® HD Graphics 3000 |
Expansion slot |
3*6U CPCI |
Storage |
SATA 500GB |
IO port |
2 x Serial Ports;3 x USB2.0;3 x Ethernet |
Display |
15.4” LCD high brightness low temperature |
Resolution |
1280*800 |
Woprk temperature |
0~55℃(Optiona-20~60℃ ) |
Storage temperature |
-40~ 85°C |
Relative humidity |
5~95%(no condensation) |
vibration |
2g@10~500Hz (X,Y,Z 1 hour every direction ) |
size |
388mm (L) x 308mm(W) x 126mm (D) |
weight |
7 KG |
Order information
In addition to the standard products, also accept customers' special requirements of modified (for example add air outlet), also accept OEM/ODM orders
paper carton ocean transport
1 years tecnical service
Qingdao Fu shun Xing Electronics Technology Co., Ltd is a technology company specializing in the research, development and service of automatic intelligent control, visual image identification. The company promotes series products of portable computer, industrial tablet pc, reinforced anti-riot army-regulation computer, non-fan Embedded IPC, X-RAY foreign matter detector, basket washing machine, slicer and turnover washing machine. The products have been applied in the military industry, telecommunication, metallurgy, transportation, electricity, railway, aviation, communication, finance, network, medical treatment, machine manufacturing, precise instrument, food processing and other sectors extensively.
