Product Overview

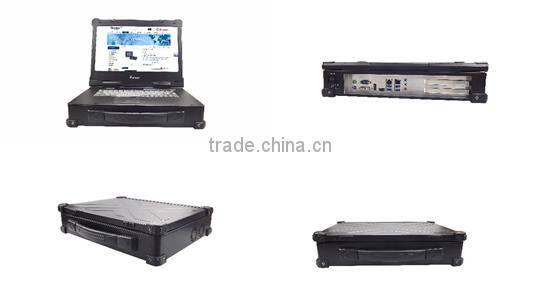

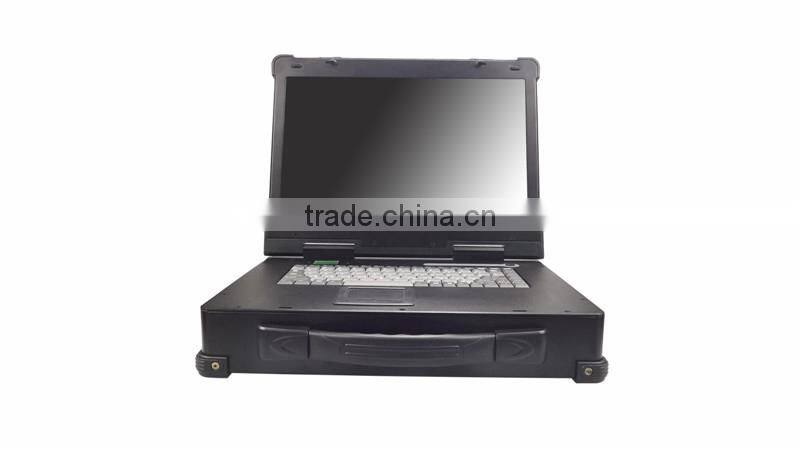

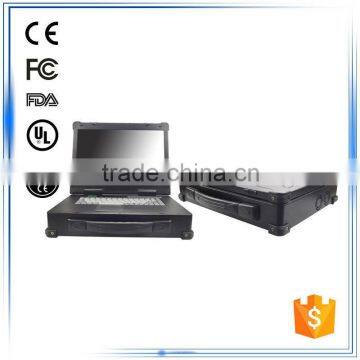

FSX-1562 is a 15.6"cost-effective and portable industrial computer.It can extensible two and a half of PCI card. The whole machine adopts the lightweight aluminum alloy structure, integrate all the functions of the notebook. It has embedded industrial motherboard, portable, firm and light.The extensibility is strong. It can integrate various functional modules according to the different needs of customers.
Product features
1.Small size, light weight, easy to carry
2.embedded industrial motherboard
3.Provide two and a half of expansion slot
4.15.6"High brightness LCD(16:10) display,Resolution:1344X900
5.88 keys keyboard,touch pad
Product specification
System parameters |
Motherboard |
MINI-ITX Embedded Motherboard |
|
CPU |
|
Intel CORE 2 T7300 2.0GHz(Maximum support T9500) |
|
RAM |
|
2G DDR Ⅲ |
|
Hard disk |
|
500G |
|
Keyboard |
88 keys ultra-thin keyboard |
||
Touchpad |
touchpad capacitive touch panel |
||
size |
380mm×290mm×80mm |
||
weight |
5Kg |
||
power supply |
DC19V |
||
ATX 90W |
|||
|
Battery |
|
10Ah,work3h, Standby 6h |
|
Expansion Interface
|
Expansion capabilities |
Two and a half of standard expansion slot (up to 230 x 110 mm) |
|
interface |
4 *USB ,2 *Serial ports,1 *DVI ,100M Network interface, audio interface,VGA |
||
|
|
|
|
LCD panel |
Display |
15.6” TFT LCD |
|
Resolution |
1344x900 |
||
Brightness |
250cd/m2 |
||
Contrast |
600:1 |
||
Maximum color |
16M |
||
Display area |
304.13X228.10mm |
||
Reaction time |
8ms |
||
Pixel distance |
0.297x0.297 |
||
Maximum viewing angle |
(H)160/(V)160 |
||
|
|
|
|
Environmental parameters |
Woprk temperature |
0~50℃ |
|
Storage temperature |
-20~60℃ |
||
Relative humidity |
10~95%@40℃(no condensation) |
||
vibration |
50~500Hz,1.5G,0.15mm peak |
||
impact |
10G(11ms) |
Order information
I3 CPU
1,FSX-1562-I3 (15.6"LCD 16:9,1344*900; i3-2310 /2G DDR3/500G )
2, FSX-1562-I3B(15.6" LCD 16:9,1344*900;i3-2310 /2G DDR3/500G; 10Ah battery)
I5 CPU
3,FSX-1562-I5(15.6" LCD 16:9,1344*900;i5-3210 /2G DDR3/SATA 500G)
4,FSX-1562-I5B(15.6"LCD 16:9,1344*900;i5-3210 /2G DDR3/SATA 500G/ 12Ah battery)
I7 CPU
5,FSX-1562-I7(15.6" LCD 16:9,1344*900;i7-3610 /2G DDR3/SATA 500G)
6,FSX-1562-I7B(15.6"LCD 16:9,1344*900;i7-3610 /2G DDR3/SATA 500G/12Ah battery)
paper carton ocean transport
1 years tecnical service
Qingdao Fu shun Xing Electronics Technology Co., Ltd is a technology company specializing in the research, development and service of automatic intelligent control, visual image identification. The company promotes series products of portable computer, industrial tablet pc, reinforced anti-riot army-regulation computer, non-fan Embedded IPC, X-RAY foreign matter detector, basket washing machine, slicer and turnover washing machine. The products have been applied in the military industry, telecommunication, metallurgy, transportation, electricity, railway, aviation, communication, finance, network, medical treatment, machine manufacturing, precise instrument, food processing and other sectors extensively.
